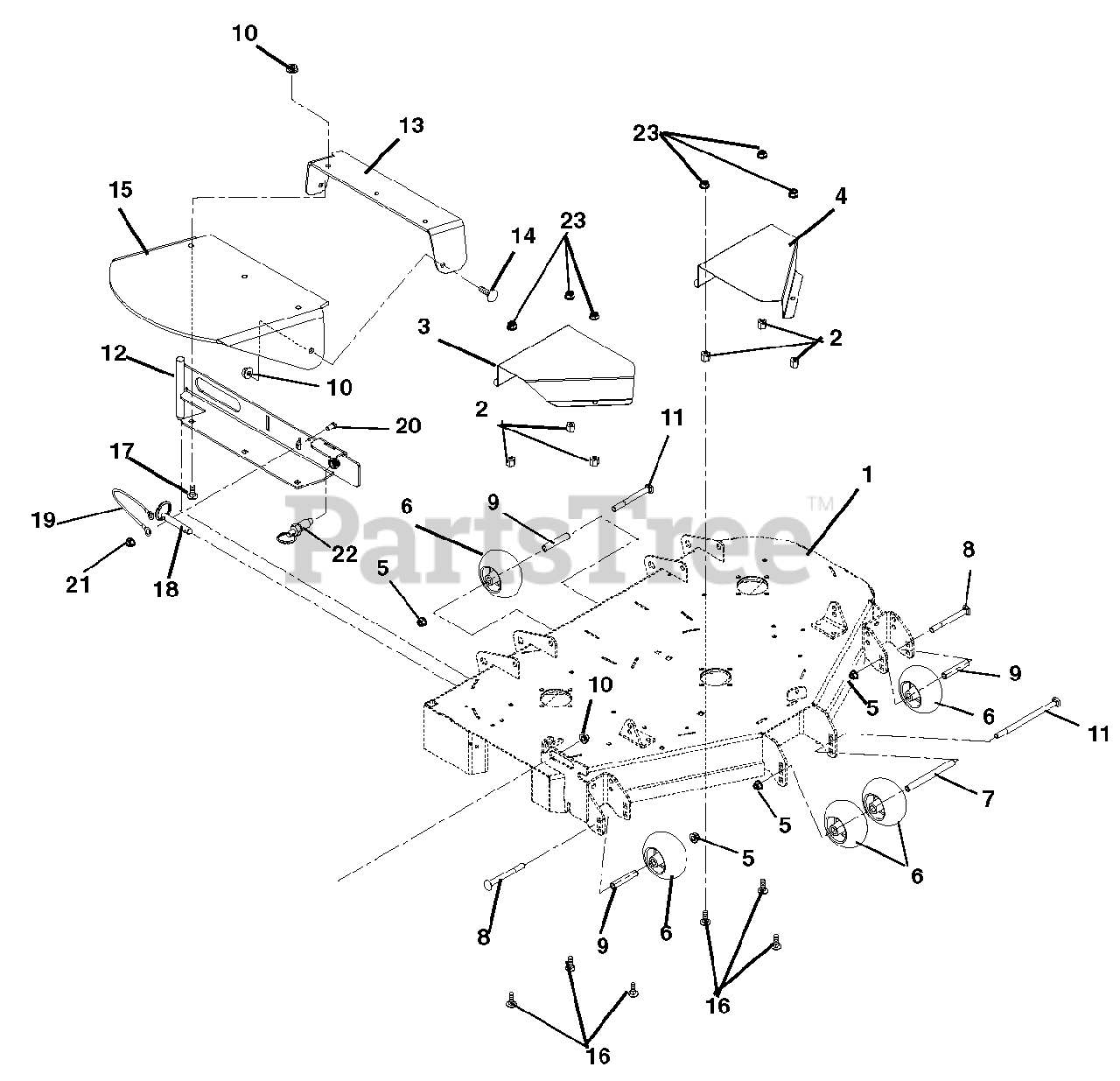

991072 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki

Deck, Discharge Chute, Anti-Scalp Rollers And Cover Parts Diagram

  • Title

1

Gravely 03975353

44" Side Discharge Deck Weldment

$1022.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.49

$

In Stock, Qty 8

0

3

Gravely 04051251

Guard, 44-52 RH Spindle Sheave

$60.99

$

Usually ships in 4-12 days

0

4

Gravely 03977151

Guard, 44-52 LH Spindle Sheave

$90.99

$

In Stock, only 1 left!

0

5

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 03905900

Anti-Scalp Wheel

$10.99

$

In Stock, Qty 20+

0

7

Gravely 00473800

Spacer

$20.99

$

In Stock, Qty 20+

0

8

Gravely 06225900

Bolt, Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$5.99

$

In Stock, Qty 20+

0

9

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

12

Gravely 00472453

Weldment, Discharge Chute Support
(Superseded to 04757453)

$112.99

$

Usually ships in 4-12 days

0

13

Gravely 00472353

Rubber Discharge Chute Support

$110.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

15

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

16

Gravely 05958000

Bolt, Hex Head .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

17

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

18

Gravely 01593500

Pin, Spring Ball .375 x 1.50

$5.99

$

In Stock, only 2 left!

0

19

Gravely 06900321

Cable, 6.0 Lanyard

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

21

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 11

0

22

Gravely 07000037

Pin, Spring Ball .375 x 1.50

$10.99

$

In Stock, only 1 left!

0

23

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0
