991072 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Compact-Pro 44" Zero-Turn Mower, Kawasaki

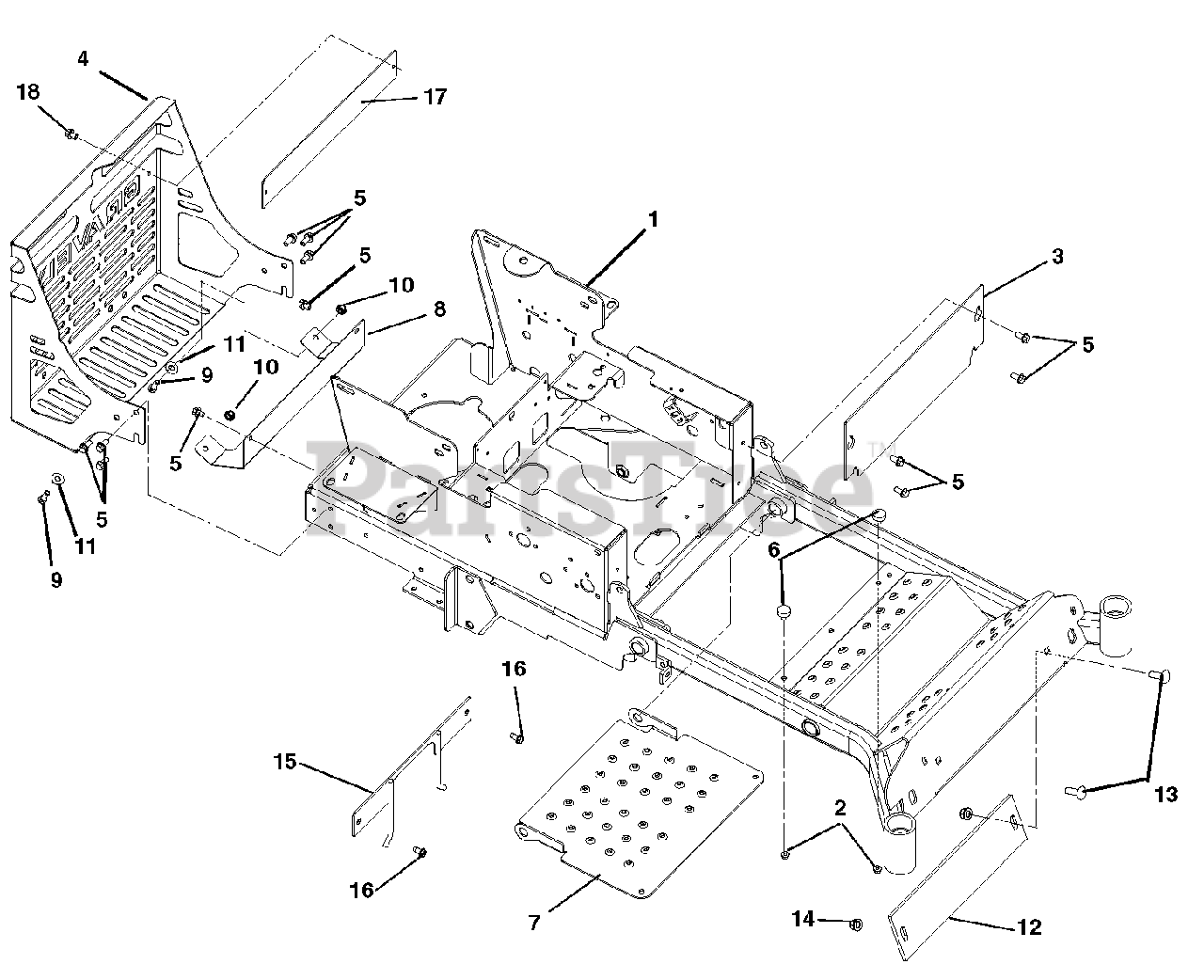

Frame Parts Diagram

  • Title

1

Gravely 03782353

Weldment, CZ 44-48 Main Frame

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 02989053

Kick Plate

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 03996053

Bumper

$164.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

7

Gravely 00298953

Panel, Inspection

$

$

Not available

8

Gravely 00462351

Heat Shield

$49.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 01922851

Counterwieght CZ Front- Red

$33.99

$

Usually ships in 4-12 days

0

13

Gravely 06224800

Bolt, Round Head Square Neck .50-13 x 1.75 Grade 5
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 04053651

Weldment, PTO Belt Finger

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03948251

Bumper Backer Plate

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
