991076 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Steering Controls Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki

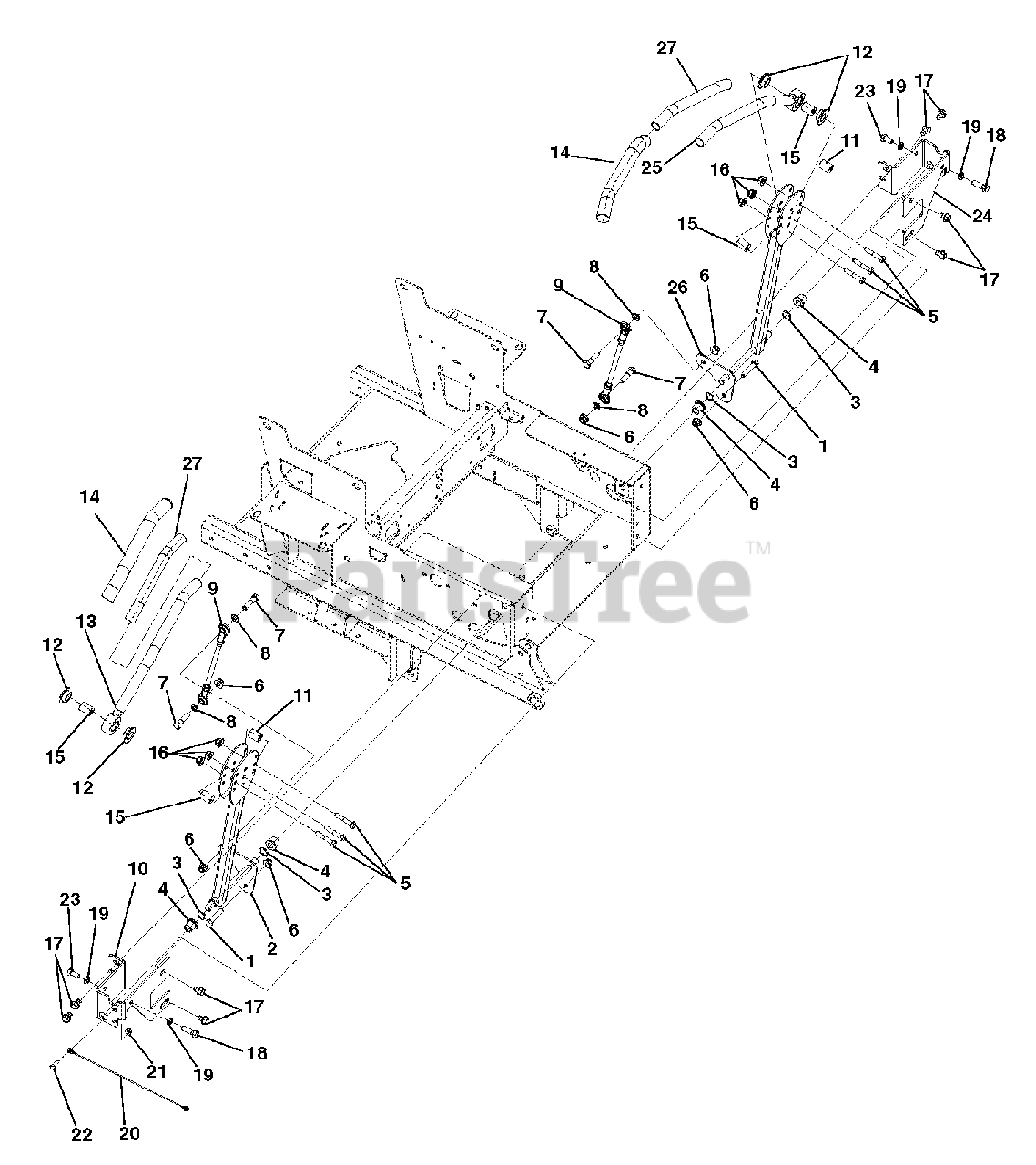

Steering Controls Parts Diagram

  • Title

1

Gravely 05942200

Bolt, Hex .38-16 x 2.00 Full Thread

$3.49

$

In Stock, only 1 left!

0

2

Gravely 03773551

Weldment, Right Hand Control

$137.99

$

Usually ships in 4-12 days

0

3

Gravely 03704900

Wave Washer .640 x .875 x .125 Free Height

$2.49

$

In Stock, only 2 left!

0

4

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00 Nylon

$2.99

$

In Stock, Qty 18

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

6

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

8

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

9

Gravely 03251700

Assembly, Steering Linkage

$74.99

$

Usually ships in 4-12 days

0

10

Gravely 03752753

Bracket, Right Hand Steering Stop

$79.99

$

Usually ships in 4-12 days

0

11

Gravely 05500932

Eccentric

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05525200

Bushing, Flange .762 x 1.48 x .44 Nylon
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 09235600

Handle Weldment Right Hand

$94.99

$

In Stock, only 2 left!

0

14

Gravely 03929100

Grip, Handlebar

$16.99

$

In Stock, only 1 left!

0

15

Gravely 09235400

Spacer, .328 x .76 x 1.01

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

18

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

19

Gravely 06535900

Nut, Hex-Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06900317

Cable, 12.0 Lanyard, Nylon

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

22

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

23

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

24

Gravely 03754753

Bracket, Left Hand Steering Stop

$74.99

$

Usually ships in 4-12 days

0

25

Gravely 09235500

Weldment, Handle Left Hand

$105.99

$

In Stock, Qty 5

0

26

Gravely 03773651

Weldment, Left Hand Control

$137.99

$

Usually ships in 4-12 days

0

27

Gravely 03988300

Tube

$15.99

$

In Stock, only 2 left!

0
