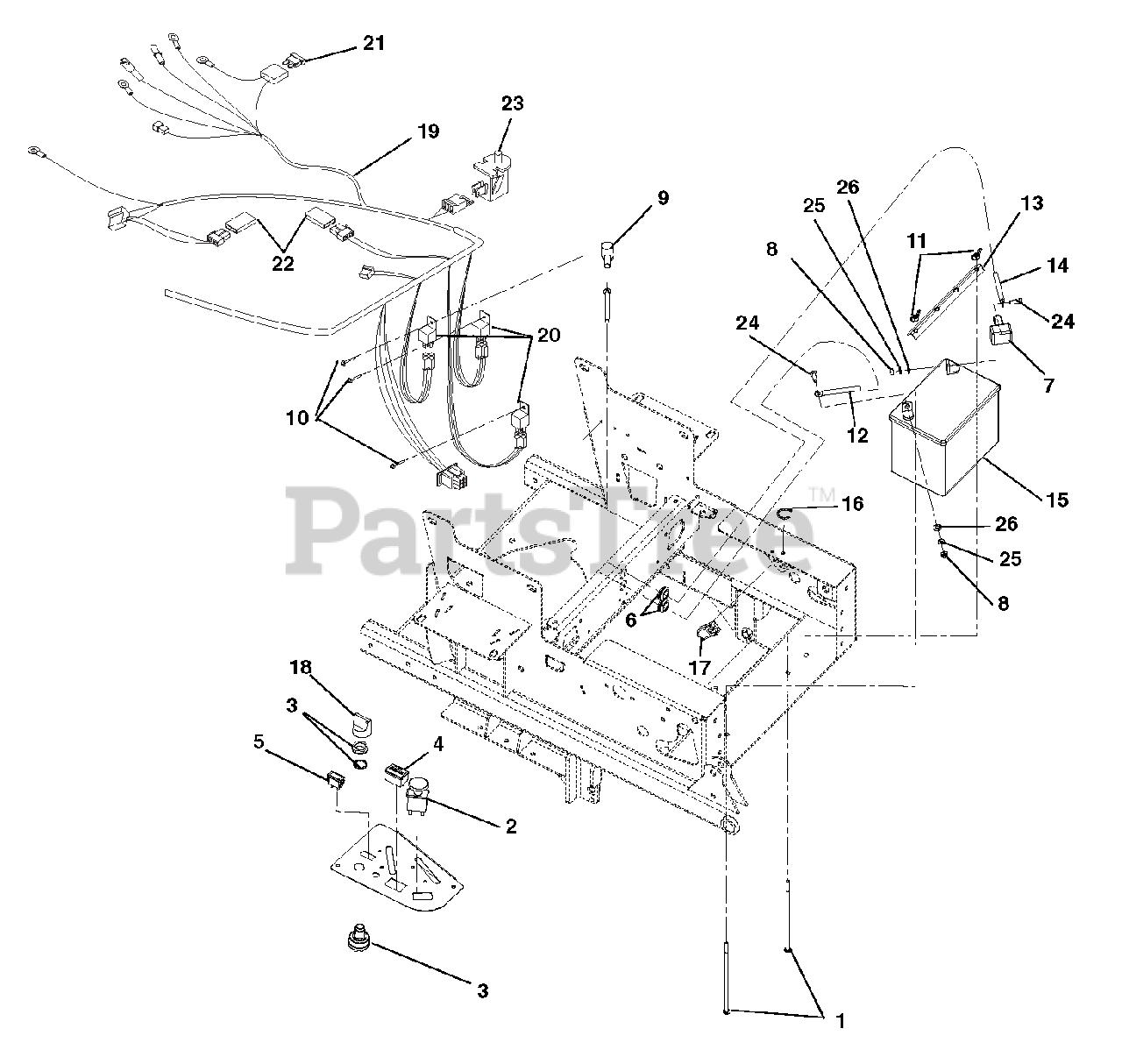

991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$3.99

$

In Stock, Qty 5

0

2

Gravely 01545600

SWITCH, CLUTCH

$23.99

$

In Stock, Qty 19

0

3

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$42.99

$

In Stock, Qty 11

0

4

Gravely 03966800

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$22.99

$

In Stock, only 1 left!

0

5

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

8

Gravely 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

9

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 07500125

RIVET, .25 NYLON PANEL

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

12

Gravely 03111101

CABLE, GROUND 22.00"

$20.99

$

In Stock, only 1 left!

0

13

Gravely 03494051

HOLD DOWN

$11.99

$

In Stock, Qty 5

0

14

Gravely 03288400

CABLE-POSITIVE BATTERY 26.00"

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

16

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

17

Gravely 03834300

SWITCH, SNAP IN - N.O./N.O.

$13.99

$

In Stock, Qty 10

0

18

Gravely 09287000

KEY, W/ SHIELD

$15.99

$

In Stock, Qty 20+

0

19

Gravely 03287300

HARNESS - IZ, CZ, 100I
(Superseded to 04244800)

$305.99

$

Usually ships in 4-12 days

0

20

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

21

Gravely 00524600

FUSE, 30 AMP.

$

$

Not available

22

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, Qty 20+

0

23

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

24

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

25

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

26

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0
