991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

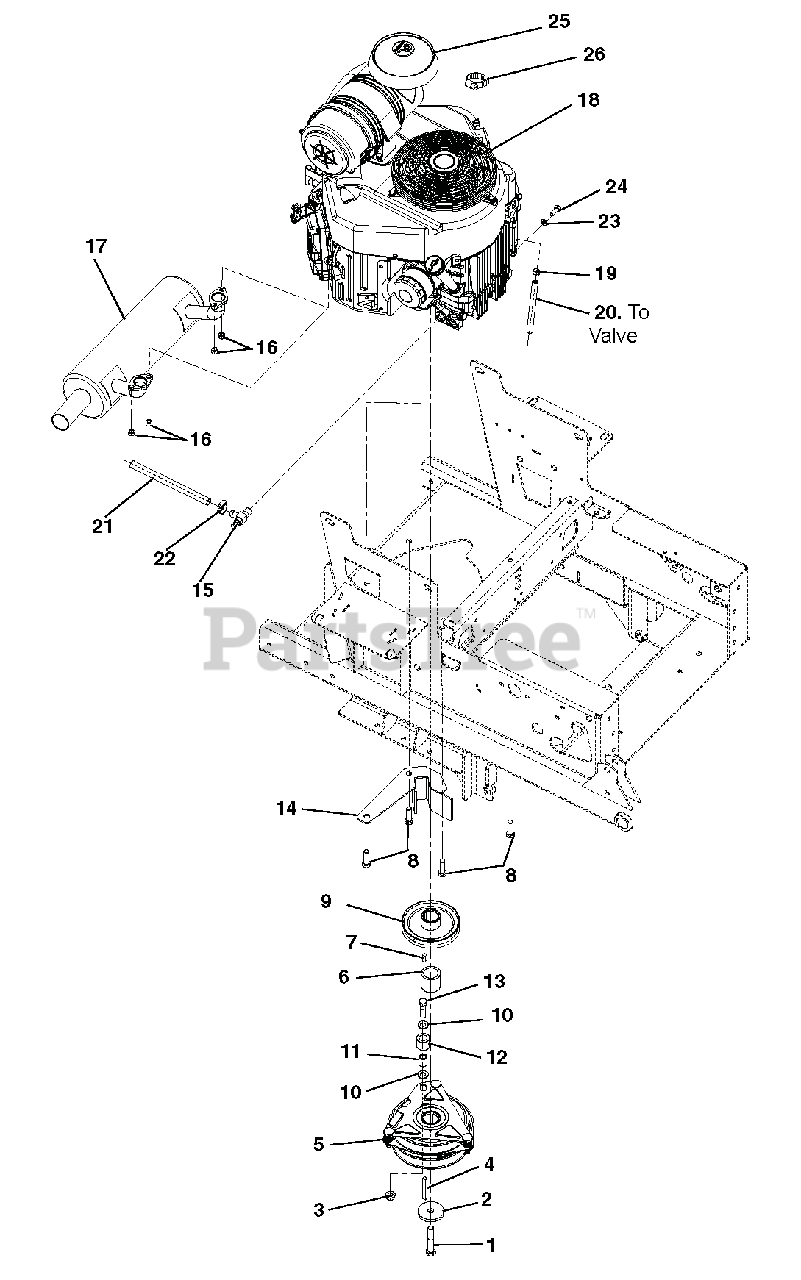

Engine And Clutch Parts Diagram

  • Title

1

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$13.99

$

In Stock, only 1 left!

0

2

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

3

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06610300

KEY .25X.25X2.25

$2.99

$

In Stock, Qty 12

0

5

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$455.99

$

In Stock, only 1 left!

0

6

Gravely 03829700

SPACER, 1.125 X 1.75 X 1.40

$20.99

$

In Stock, only 1 left!

0

7

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 16

0

8

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.49

$

In Stock, Qty 13

0

9

Gravely 07300106

SHEAVE, 4.831 X 1.127 ENGINE
(Superseded to 07331667)

$

$

Not available

10

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$13.99

$

In Stock, only 1 left!

0

12

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$5.99

$

In Stock, Qty 8

0

13

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

14

Gravely 03828051

100I CLUTCH STOP WMT - BLACK

$64.99

$

Usually ships in 4-12 days

0

15

Gravely 00429000

DRAIN, 1/2" OIL

$39.99

$

In Stock, only 1 left!

0

16

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

17

Gravely 03989000

MUFFLER, KAWASAKI FX 24/26HP

$168.99

$

In Stock, only 2 left!

0

18

Gravely 08200432

ENGINE, KAWASAKI FX691 (24HP)

Note: (24HP) (076, 077)

$

$

Not available

Gravely 08200431

ENGINE, KAWASAKI FX730 (26HP)

Note: (26HP) (078)

$

$

Not available

19

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

20

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

21

Gravely 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06923500

CLAMP,.88 DIA. HOSE

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0

25

Gravely 04088900

CAP, KAW 11065-7025

$59.99

$

Usually ships in 4-12 days

0

26

Gravely 06900426

CLAMP, HOSE #36 SS 1.813-2.75

$3.49

$

Usually ships in 4-12 days

0

Gravely 03286700

LEAD - STARTER SOLENOID

Note: (not shown)

$9.49

$

In Stock, only 1 left!

0

Gravely 21548800

FILTER, OUTER

Note: (not shown)

$27.99

$

In Stock, Qty 20+

0

Gravely 21548700

FILTER, INNER - KAW

Note: (not shown)

$27.99

$

In Stock, Qty 18

0

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (not shown)

$18.99

$

In Stock, Qty 20+

0

Gravely 21536100

PLUG, SPARK

Note: (not shown)

$3.49

$

In Stock, Qty 20+

0

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: (not shown)

$12.99

$

In Stock, Qty 13

0
