991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

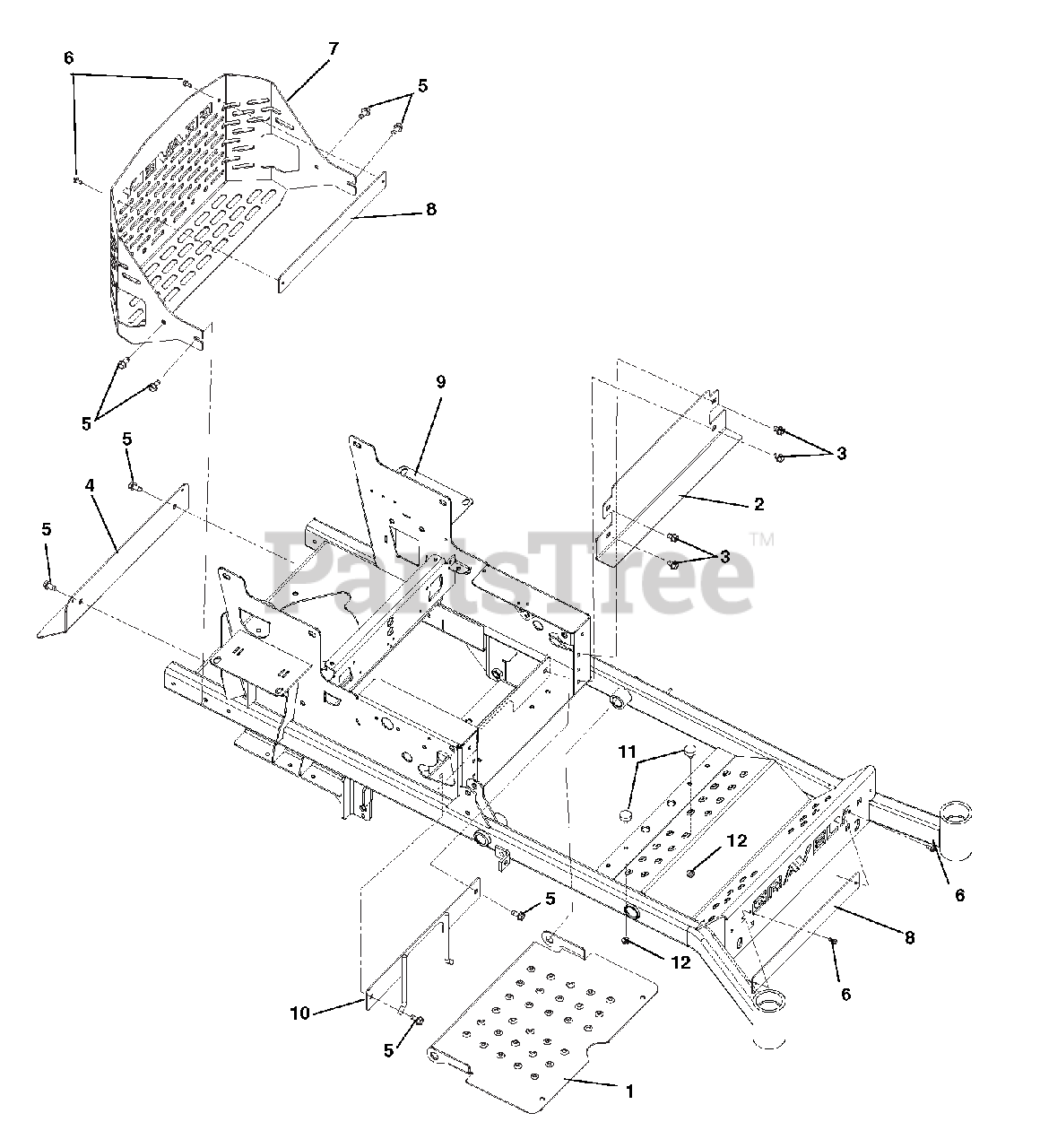

Frame Parts Diagram

  • Title

1

Gravely 03765753

100I FOOT PLATE - RED

$

$

Not available

2

Gravely 03765953

100I KICK PLATE - RED

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

4

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$72.99

$

In Stock, only 1 left!

0

5

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03995253

PRO-TURN 100 BUMPER - RED

$174.99

$

Usually ships in 4-12 days

0

8

Gravely 03995751

BUMPER PLATE 2.00 X 16.50 -BLK

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 03999553

PT100 60" MAIN FRAME WMT - RED

Note: (078)

$

$

Not available

Gravely 03999653

PT100 48-52"MAIN FRAME WMT-RED

Note: (076, 077)

$

$

Not available

10

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

12

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0
