991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Mechanical Lift Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

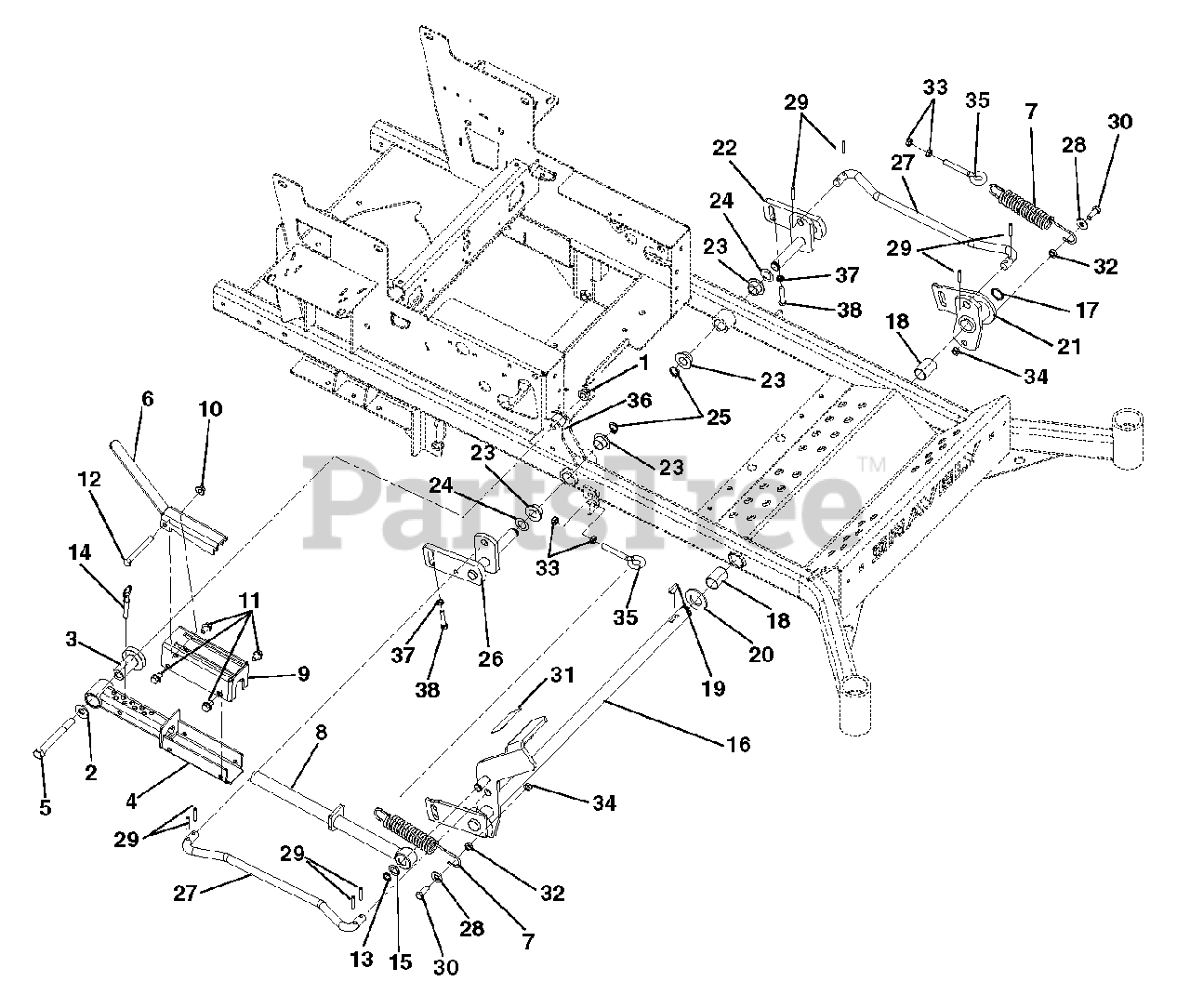

Mechanical Lift Parts Diagram

  • Title

1

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 07000031

BEARING, PEDESTAL

$79.99

$

In Stock, Qty 7

0

4

Gravely 09286251

WMT, MECHANICAL LIFT

$216.99

$

Usually ships in 4-12 days

0

5

Gravely 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, Qty 12

0

6

Gravely 00586551

MECH DECK LIFT LOCK LEVER- BLK

$

$

Not available

7

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$33.99

$

In Stock, Qty 20+

0

8

Gravely 09291500

WMT, MECH. LIFT SHAFT (.62)

$150.99

$

Usually ships in 4-12 days

0

9

Gravely 09299451

WMT, MECH LIFT COVER

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

In Stock, only 2 left!

0

15

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 03766600

WMT, 100I FOOT OPER DECK LIFT

$238.99

$

Usually ships in 4-12 days

0

17

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, only 2 left!

0

18

Gravely 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$6.99

$

In Stock, only 3 left!

0

19

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 20+

0

20

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

21

Gravely 00441000

WMT, LH FRONT MOWER LIFT

$97.99

$

Usually ships in 4-12 days

0

22

Gravely 04072100

WMT, LH REAR DECK LIFT ARM

$99.99

$

Usually ships in 4-12 days

0

23

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

24

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

25

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

26

Gravely 04072200

WMT, RH REAR DECK LIFT ARM

$129.99

$

Usually ships in 4-12 days

0

27

Gravely 04063000

ROD-LIFT ASSIST 16.35"

$41.99

$

Usually ships in 4-12 days

0

28

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

$3.49

$

In Stock, Qty 5

0

32

Gravely 05508900

BSHG-SLV .377X.624X.235

$9.49

$

In Stock, only 1 left!

0

33

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

34

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

In Stock, only 1 left!

0

36

Gravely 09293600

SPACER .516X1.000X.875

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

38

Gravely 05900035

BLT-HEX .312-18X1.50 FTH GR5YZ

$

$

Not available
