991077 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Tires Assemby Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

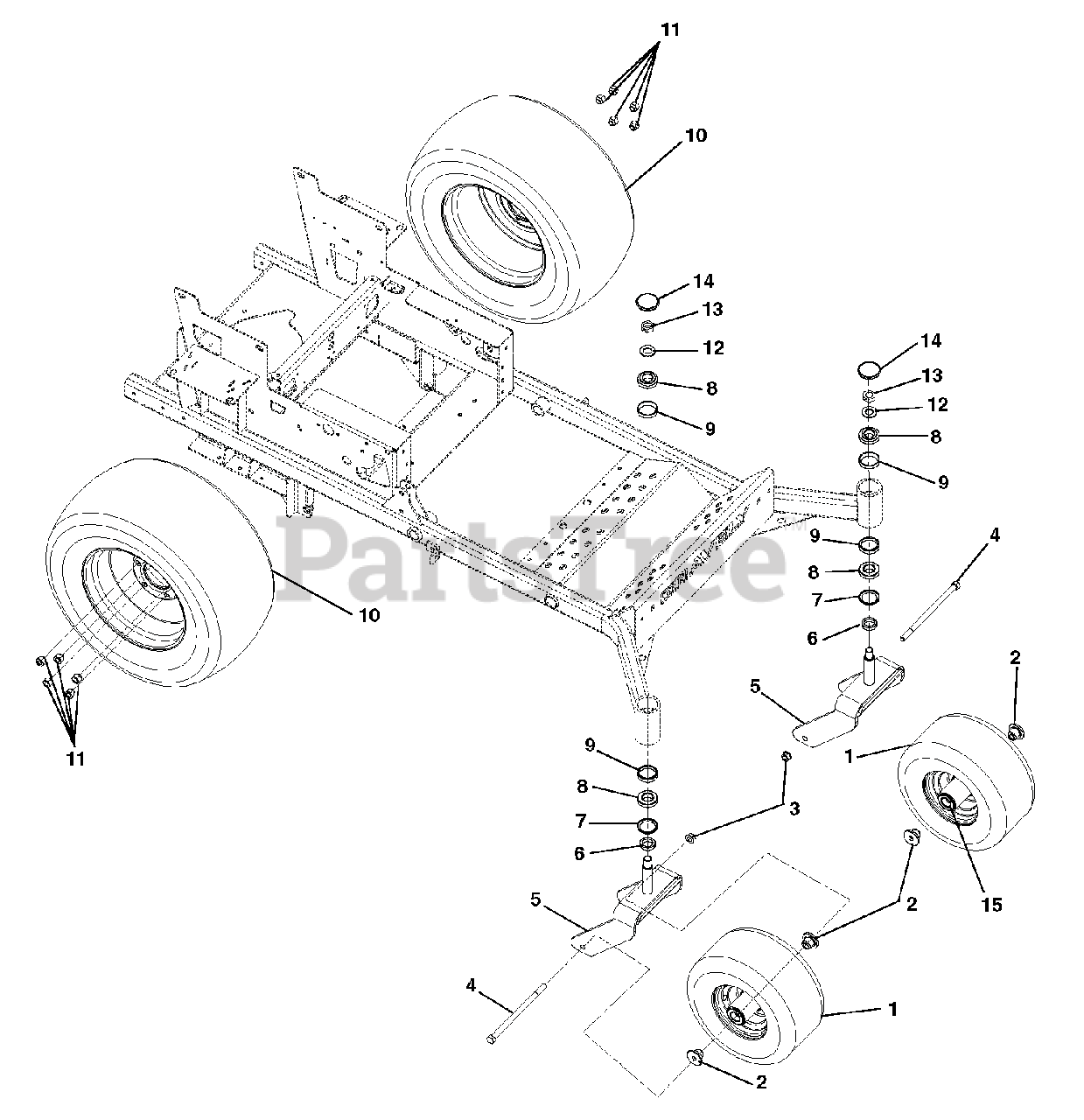

Tires Assemby Parts Diagram

  • Title

1

Gravely 07100235

TIRE/WHEEL ASM, 13X6.50-6
(Superseded to 59103400)

$197.99

$

Usually ships in 4-12 days

0

Gravely 07100236

TIRE, 13X6.50-6
(Superseded to 59103400)

$197.99

$

Usually ships in 4-12 days

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

3

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 15

0

5

Gravely 03924453

CASTER FORK WMT - RED

$184.99

$

In Stock, only 2 left!

0

6

Gravely 03760300

SPCR, 1.258ID X 1.750OD X.550

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 05600432

SEAL, OIL 1.75 X 2.332 X .312

$12.99

$

In Stock, only 3 left!

0

8

Gravely 05404700

BRG-CONE 1.25X.66

$22.99

$

In Stock, Qty 17

0

9

Gravely 05404600

BRG-CUP 2.328X.465

$15.99

$

In Stock, Qty 7

0

10

Gravely 07100209

TIRE/WHEEL ASSY, 23X10.00-12
(Superseded to 07101116)

$319.99

$

In Stock, only 1 left!

0

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

$205.99

$

Usually ships in 4-12 days

0

11

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06439800

@WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 12

0

13

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 10

0

14

Gravely 03925900

CAP, DUST

$11.99

$

In Stock, only 4 left!

0

15

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0
