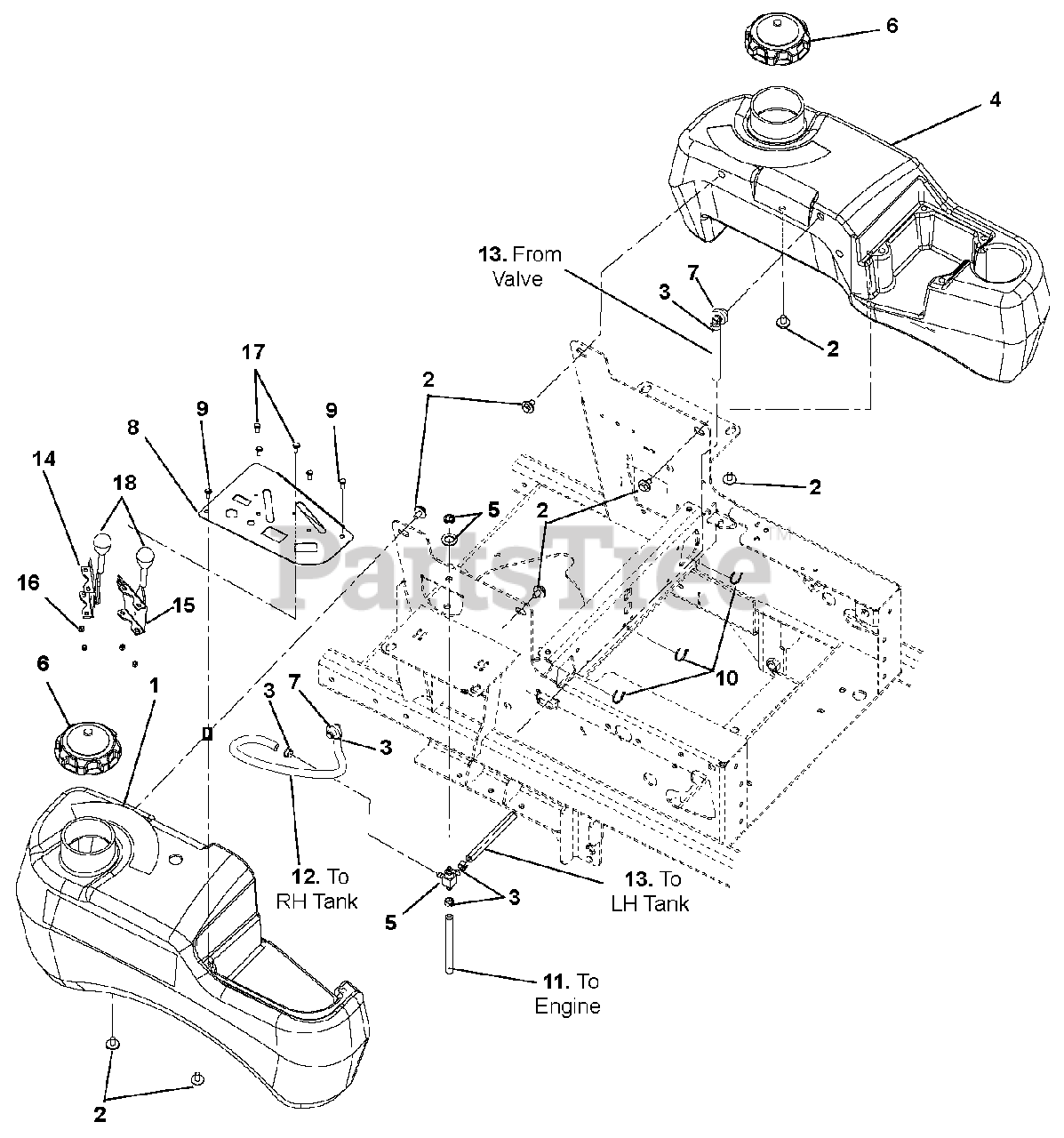

991079 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Fuel Tanks - SN000101 - 002499 Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki

Fuel Tanks - SN000101 - 002499 Parts Diagram

  • Title

1

Gravely 03973300

Tank, Right Hand Fuel

$281.99

$

Usually ships in 4-12 days

0

2

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

3

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 19

0

4

Gravely 03973400

Tank, Left Hand Fuel

$281.99

$

In Stock, only 2 left!

0

5

Gravely 09258200

Valve, Fuel

$48.99

$

In Stock, Qty 8

0

6

Gravely 03859100

Cap, Fuel

$29.99

$

In Stock, only 4 left!

0

7

Gravely 03900300

Assembly, Medium Tank Fuel Pick-up
(Superseded to 04320900)

$40.99

$

In Stock, Qty 20+

0

8

Gravely 04039151

Panel, Control

$31.99

$

Usually ships in 4-12 days

0

9

Gravely 06100137

Screw, Machine 10-24 x .50

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 07517300

Cable, Tie

$

$

Not available

11

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06900418

Cable, Pro-Turn 100 Choke Control

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 06900417

Cable, Pro-Turn Throttle Control

$74.99

$

In Stock, only 4 left!

0

16

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 07500132

Knob, Control, Black .38-16 x .62

$12.99

$

Usually ships in 4-12 days

0
