991079 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kawasaki (SN: 030000 - 039999) Engine - Kawasaki FX691 Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kawasaki

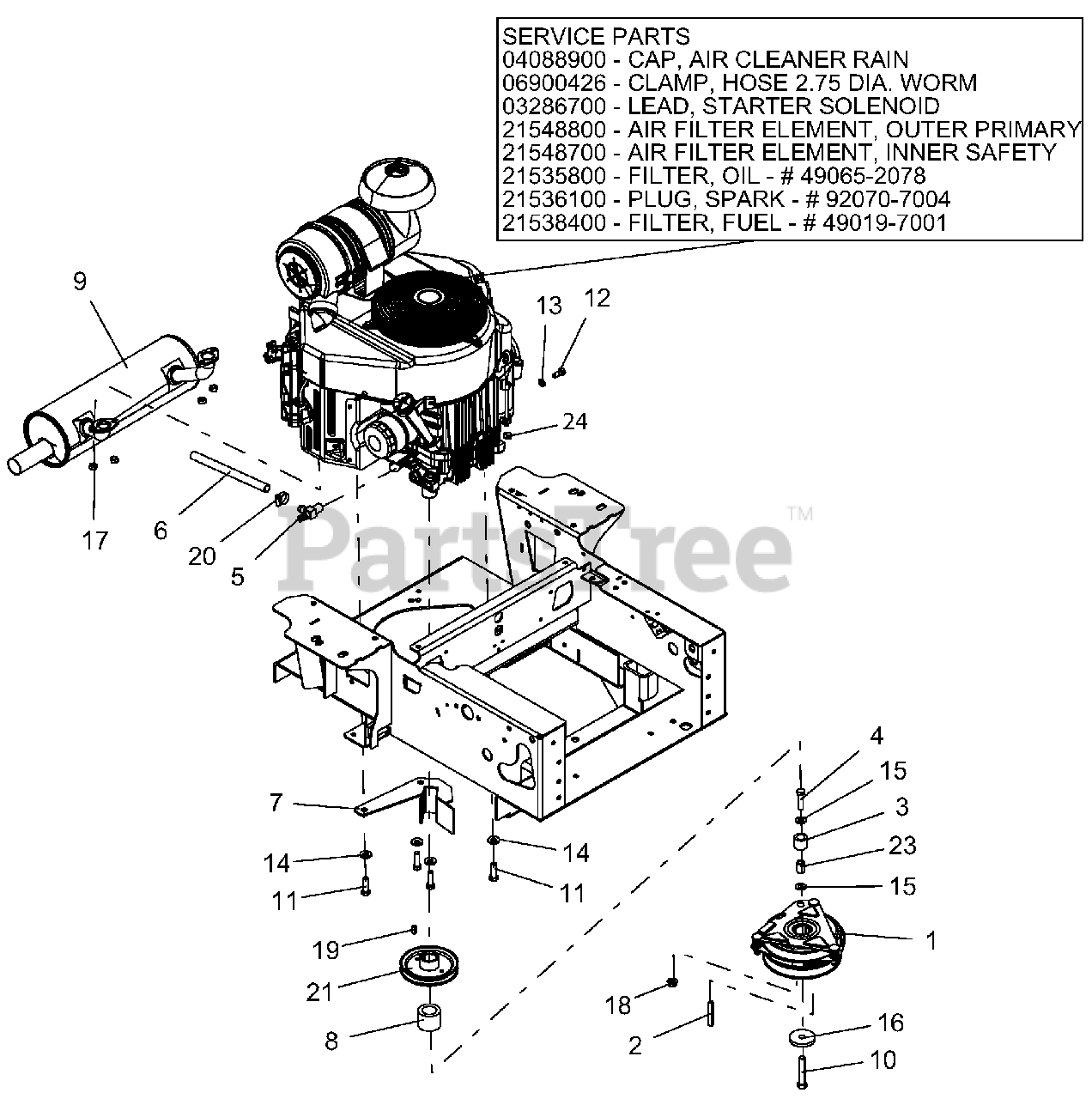

Engine - Kawasaki FX691 Parts Diagram

  • Title

1

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$507.99

$

Usually ships in 4-12 days

0

2

Gravely 06610300

KEY .25X.25X2.25

$3.99

$

In Stock, only 2 left!

0

3

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.99

$

In Stock, Qty 10

0

4

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

5

Gravely 00429000

DRAIN, 1/2" OIL

$43.99

$

In Stock, only 2 left!

0

6

Gravely 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 03828051

100I CLUTCH STOP WMT - BLACK

$68.99

$

Usually ships in 4-12 days

0

8

Gravely 03829700

SPACER, 1.125 X 1.75 X 1.40

$22.99

$

In Stock, only 2 left!

0

9

Gravely 03989000

MUFFLER, KAWASAKI FX 24/26HP

$192.99

$

Usually ships in 4-12 days

0

10

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$15.99

$

In Stock, only 3 left!

0

11

Gravely 05901522

BLT-HEX.38-16X1.25 G5YZ NYTORQ
(Superseded to 05901808)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

17

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.99

$

In Stock, Qty 11

0

18

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.99

$

In Stock, Qty 7

0

21

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE
(Superseded to 07331600)

$

$

Not available

23

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 2 left!

0

24

Gravely 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0
