991080 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Belts, Spindles, Idlers And Blades - 48-52 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kawasaki

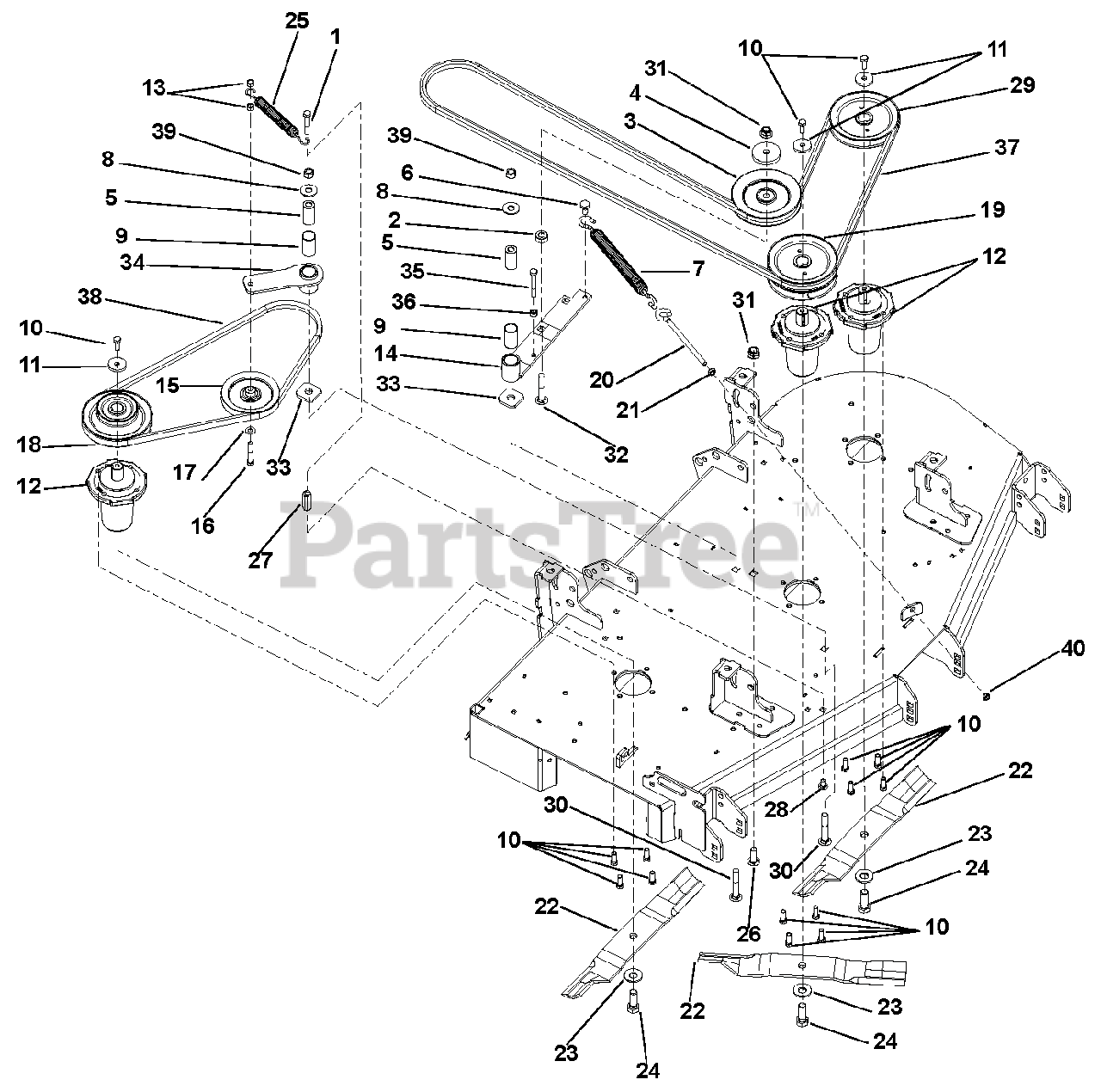

Belts, Spindles, Idlers And Blades - 48-52 Parts Diagram

  • Title

1

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

3

Gravely 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$54.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 9

0

5

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

6

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 16

0

7

Gravely 08300505

SPRING, EXTENSION

Note: (Deck Idler)

$27.99

$

In Stock, Qty 20+

0

8

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 69221300

ASSEMBLY, SPINDLE-LONG G3500
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03774251

WMT, IDLER ARM

$70.99

$

In Stock, Qty 6

0

15

Gravely 07300526

SHV, .38"ID X 5.00"OD V-IDLER
(Superseded to 07351800)

$31.99

$

In Stock, Qty 20+

0

16

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07329467

PULLEY, DBL-1"IDX5.75"&3.50"OD

Note: (991079, 095)

$102.99

$

In Stock, Qty 6

0

Gravely 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

Note: (991080, 096)

$81.99

$

In Stock, Qty 10

0

19

Gravely 07329267

PULLEY, DOUBLE-1"ID X 5.75"OD
(Superseded to 07329200)

Note: (991079, 095)

$82.99

$

In Stock, Qty 12

0

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

Note: (991080, 096)

$80.99

$

In Stock, Qty 16

0

20

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$7.49

$

In Stock, Qty 20+

0

21

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

Note: (991079, 095)

$29.99

$

In Stock, Qty 20+

0

Gravely 00273000

BLADE, MULCH 16.25
(Superseded to 05244100)

Note: (991079, 095)

$27.99

$

In Stock, Qty 17

0

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

Note: (Hi-Lift) (991080, 096)

$29.99

$

In Stock, Qty 20+

0

Gravely 00273100

BLADE, MULCH 18.00"

Note: (991080, 096)

$26.99

$

In Stock, Qty 20+

0

23

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

24

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

Note: (Torque to 115 - 125 ft. lbs., 155 - 169 N-m)

$3.99

$

In Stock, Qty 20+

0

25

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

26

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 6

0

27

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

28

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 07329367

PULLEY, V-1" ID X 5.75" OD
(Superseded to 07329300)

Note: (991079, 095)

$72.99

$

In Stock, Qty 17

0

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

Note: (991080, 096)

$83.99

$

In Stock, Qty 12

0

30

Gravely 06200012

BLT-RDHDSQNK .50-13X3.25 G5YZ

$7.49

$

Usually ships in 4-12 days

0

31

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.49

$

In Stock, Qty 16

0

33

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

34

Gravely 03774151

WMT, IDLER ARM - BLACK

$52.99

$

In Stock, Qty 12

0

35

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07200024

HEX BELT, BB-WRAPPED

Note: (991079, 095)

$137.99

$

In Stock, Qty 7

0

Gravely 07200509

HEX BELT, BB-WRAPPED

Note: (991080, 096)

$134.99

$

In Stock, Qty 10

0

38

Gravely 07200035

V-BELT, B-COGGED

Note: (991079, 095)

$55.99

$

In Stock, Qty 11

0

Gravely 07200036

V-BELT, B-COGGED

Note: (991080, 096)

$63.99

$

In Stock, Qty 20+

0

39

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

40

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0
