991081 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 - 019999) Belts, Spindles, Idlers And Blades - 60 Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

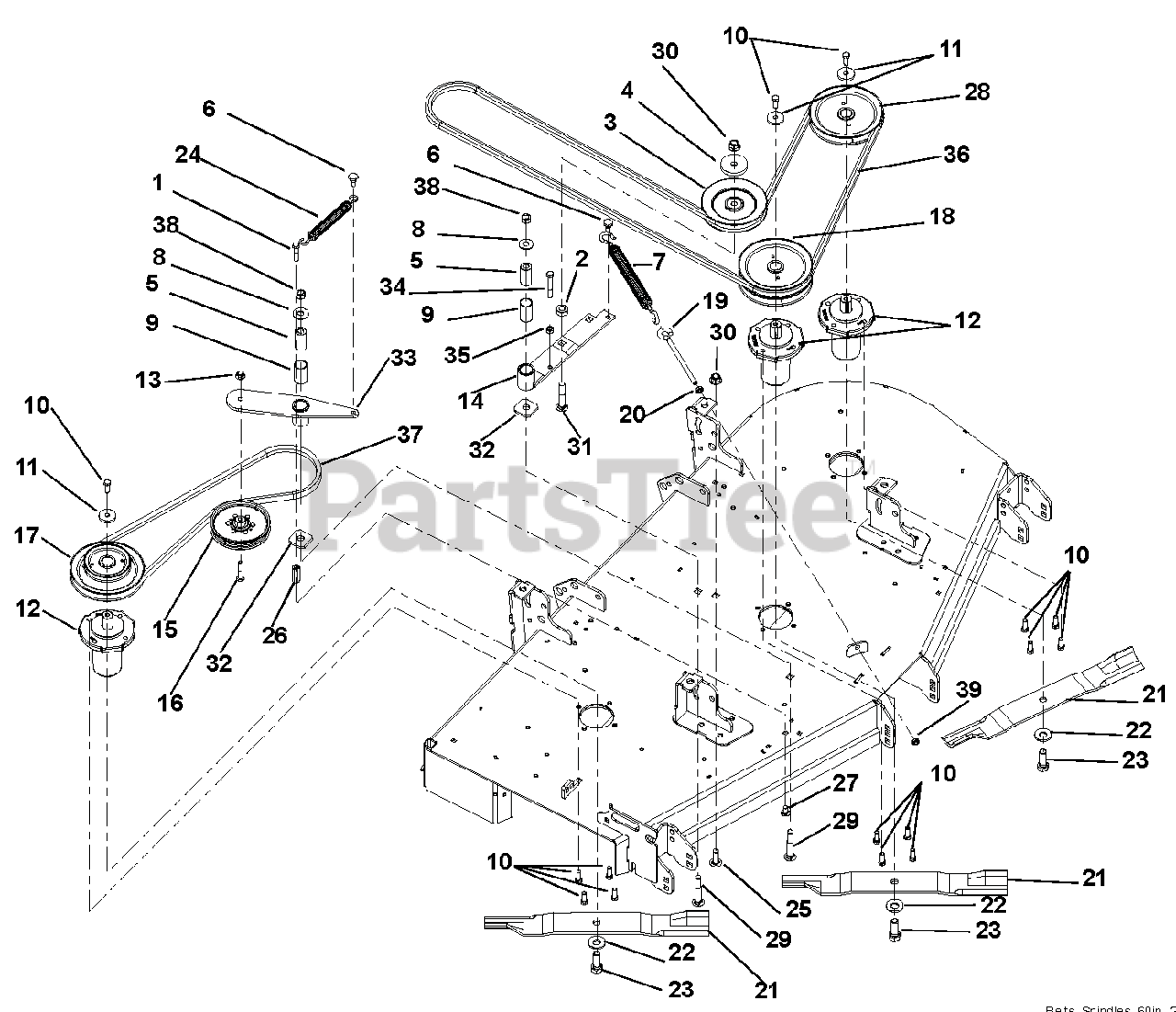

Belts, Spindles, Idlers And Blades - 60 Parts Diagram

  • Title

1

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 05500905

BSHG, SPCR .502X.997X.50 PM

$11.99

$

In Stock, Qty 20+

0

3

Gravely 07300527

SHV, .50"ID X 6.00"OD V-IDLER

$54.99

$

In Stock, Qty 20+

0

4

Gravely 00450100

CAP, IDLER BEARING SEALING

$15.99

$

In Stock, Qty 9

0

5

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

6

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 16

0

7

Gravely 08300505

SPRING, EXTENSION

Note: (Deck Idler)

$27.99

$

In Stock, Qty 20+

0

8

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 69221300

ASSEMBLY, SPINDLE-LONG G3500
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

13

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 03774251

WMT, IDLER ARM

$70.99

$

In Stock, Qty 6

0

15

Gravely D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

16

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

$87.99

$

In Stock, Qty 19

0

18

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

$93.99

$

In Stock, Qty 20+

0

19

Gravely 07001604

BOLT, .38-16X6.00 .62 DIA EYE

$7.49

$

In Stock, Qty 20+

0

20

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09081200

BLADE, MOWER (20.50")

$29.99

$

In Stock, Qty 20+

0

Gravely 08866900

BLADE, MULCHING (20.50")

$37.99

$

In Stock, Qty 6

0

22

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

23

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

Note: (Torque to 115-125 ft. lbs., 155 - 169 N-m)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

25

Gravely 06200006

BLT-RDHDSHSQNKFT.50-13X1.50 G5

$6.49

$

In Stock, Qty 6

0

26

Gravely 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 10

0

27

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

$84.99

$

In Stock, Qty 20+

0

29

Gravely 06200012

BLT-RDHDSQNK .50-13X3.25 G5YZ

$7.49

$

Usually ships in 4-12 days

0

30

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06224900

BLT-RDHDSQNK .50-13X3.00 G5YZ

$6.49

$

In Stock, Qty 16

0

32

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

33

Gravely 04258151

PT160 DECK IDLER ARM WMT - BLK

$92.99

$

Usually ships in 4-12 days

0

34

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

35

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 07200510

HEX BELT, BB-WRAPPED

$151.99

$

In Stock, Qty 20+

0

37

Gravely 07200038

V-BELT, B-COGGED

$68.99

$

In Stock, Qty 20+

0

38

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

39

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0
