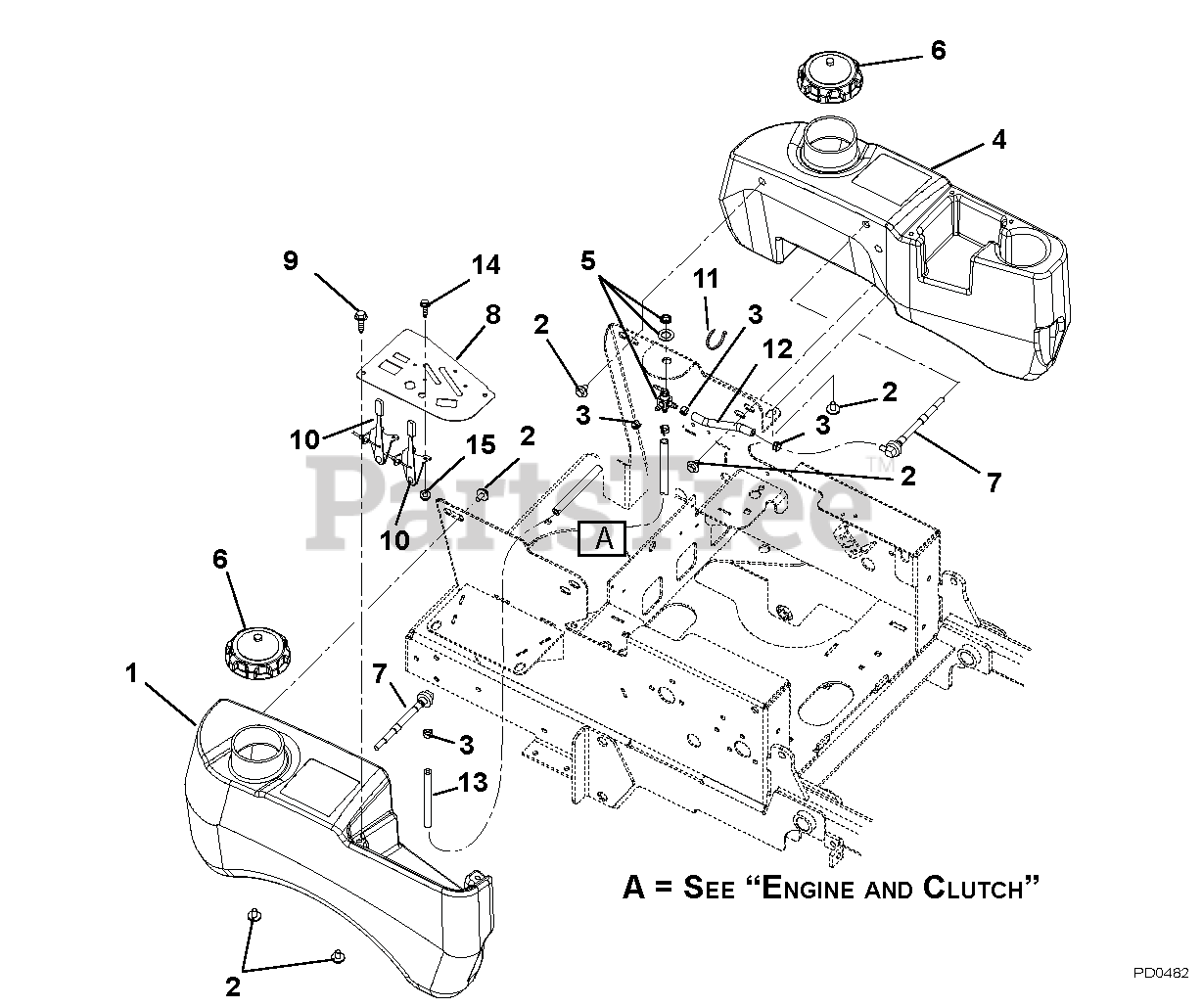

991082 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki (SN: 000101 - 009999) Fuel Tanks and Hoses Parts Diagram

48" Zero-Turn Mower, Kawasaki

Fuel Tanks and Hoses Parts Diagram

  • Title

1

Gravely 03973100

TANK,RH FUEL,HD

Note: (S/N 101 - 2499)

$

$

Not available

1

Gravely 04244900

TANK, RH SMALL GRAVELY FUEL
(Superseded to 04340400)

Note: (S/N 2500 and up)

$

$

Not available

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03973200

TANK,LH FUEL,HD

Note: (S/N 101 - 2499)

$299.99

$

Usually ships in 4-12 days

0

4

Gravely 04245000

TANK, LH SMALL GRAVELY FUEL
(Superseded to 04340500)

Note: (S/N 2500 and up)

$448.99

$

Usually ships in 4-12 days

0

5

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

6

Gravely 03859100

CAP, FUEL

Note: (S/N 101 - 2499)

$29.99

$

In Stock, Qty 20+

0

6

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

Note: (S/N 2500 and up)

$35.99

$

In Stock, Qty 20+

0

7

Gravely 03900400

ASS'Y, SMALL TANK FUEL PICK-UP
(Superseded to 04320900)

$40.99

$

In Stock, Qty 11

0

8

Gravely 04041751

PANEL - CONTROL

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06900422

CABLE, CONTROL

$43.99

$

In Stock, only 2 left!

0

11

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
