991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

52" Zero-Turn Mower, Kawasaki

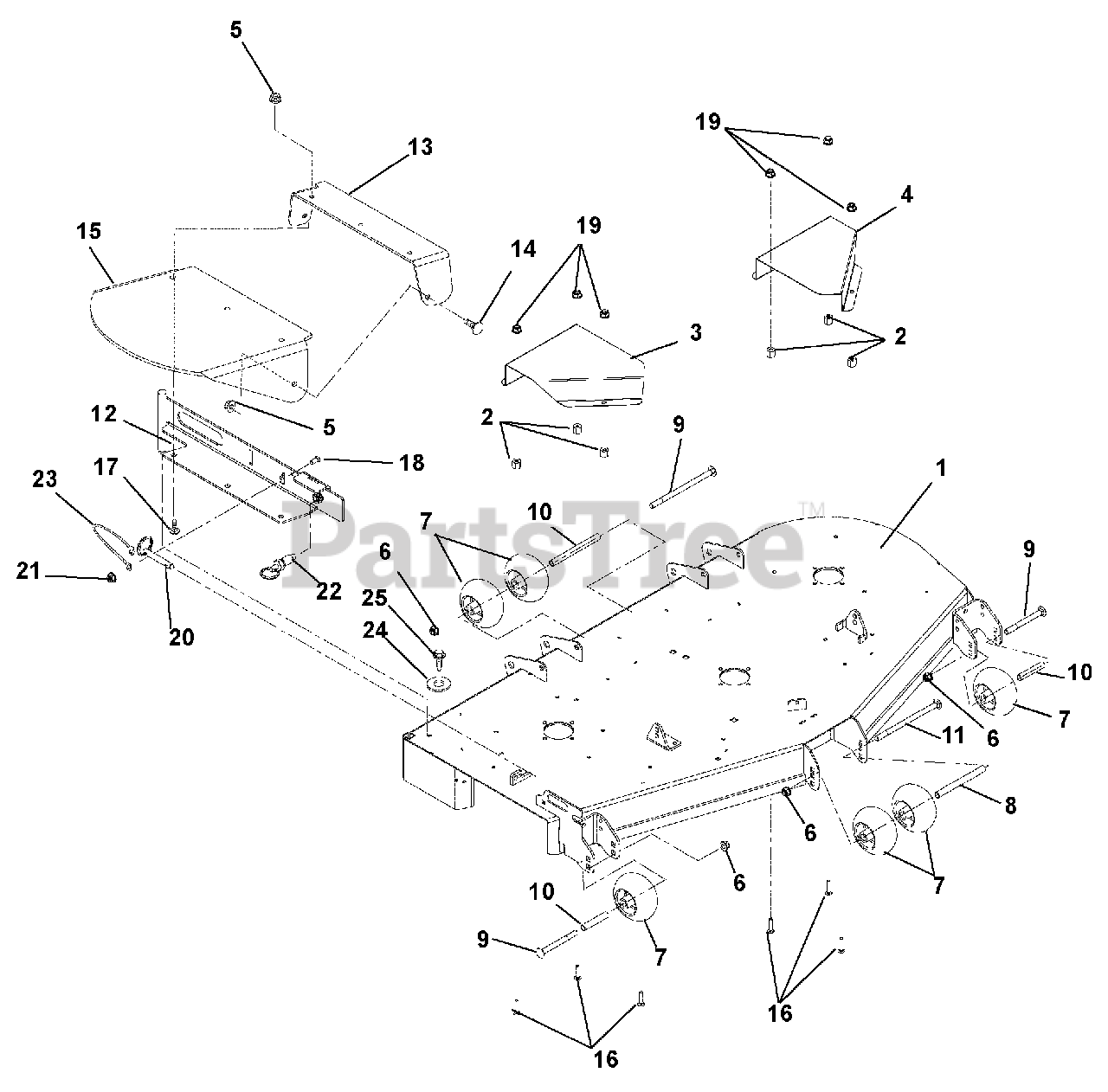

Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

  • Title

1

Gravely 04390153

WLDMT, 60" HD SIDE DISCH DECK
(Superseded to 59102300)

Note: (991084, 091)

$1318.99

$

Usually ships in 4-12 days

0

1

Gravely 04372753

WLDMT, 52" DECK
(Superseded to 59102400)

Note: (991083)

$1318.99

$

In Stock, only 1 left!

0

1

Gravely 04390053

WLDMT, 48" DECK
(Superseded to 59102500)

Note: (991082)

$1161.99

$

Usually ships in 4-12 days

0

1

Gravely 04389953

WLDMT, 44" DECK
(Superseded to 59102600)

Note: (991090)

$969.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 03982253

60"-66" RH DECK BELT GUARD-RED

Note: (991084, 091)

$58.99

$

Usually ships in 4-12 days

0

3

Gravely 04051253

GUARD-44-52 RH SPINDLE SHEAVE

Note: (991082, 083, 090)

$70.99

$

Usually ships in 4-12 days

0

4

Gravely 03977253

GUARD, 60" LH DECK BELT - RED

Note: (991084, 091)

$85.99

$

Usually ships in 4-12 days

0

4

Gravely 03977153

44"-52"LH DECK BELT GUARD -RED

Note: (991082, 083, 090)

$93.99

$

Usually ships in 4-12 days

0

5

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991082)

$13.99

$

In Stock, Qty 20+

0

7

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991083, 084, 090, 091)

$13.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

SPACER, .510X.625X6.50

Note: (991082)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 00473800

SPACER, .510X.625X6.50

Note: (991083, 084, 090, 091)

$22.99

$

In Stock, Qty 20+

0

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991082)

$

$

Not available

9

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991083, 084, 090, 091)

$

$

Not available

10

Gravely 00473700

SPACER, .510X.625X3.35

Note: (991082)

$19.99

$

In Stock, Qty 20+

0

10

Gravely 00473700

SPACER, .510X.625X3.35

Note: (991083, 084, 090, 091)

$19.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991082)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991083, 084, 090, 091)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 00980453

WMT, 44"-48" DISCH CHUTE MTG
(Superseded to 04757453)

Note: (991082, 090)

$115.99

$

In Stock, only 4 left!

0

12

Gravely 00980553

WMT, 52"-60" DISCH CHUTE MTG
(Superseded to 04727953)

Note: (991083, 084, 091)

$131.99

$

In Stock, only 1 left!

0

13

Gravely 04414953

SUPPORT, RUBBER DISCH CHUTE HD

$79.99

$

Usually ships in 4-12 days

0

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

16

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (991082, 090)

$1.49

$

In Stock, only 3 left!

0

19

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

Note: (991082, 090)

$6.49

$

In Stock, Qty 18

0

21

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (991082, 090)

$1.49

$

In Stock, Qty 15

0

22

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

23

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

Note: (991082, 090)

$6.49

$

In Stock, only 2 left!

0

24

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

25

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0
