991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Engine And Clutch Parts Diagram

52" Zero-Turn Mower, Kawasaki

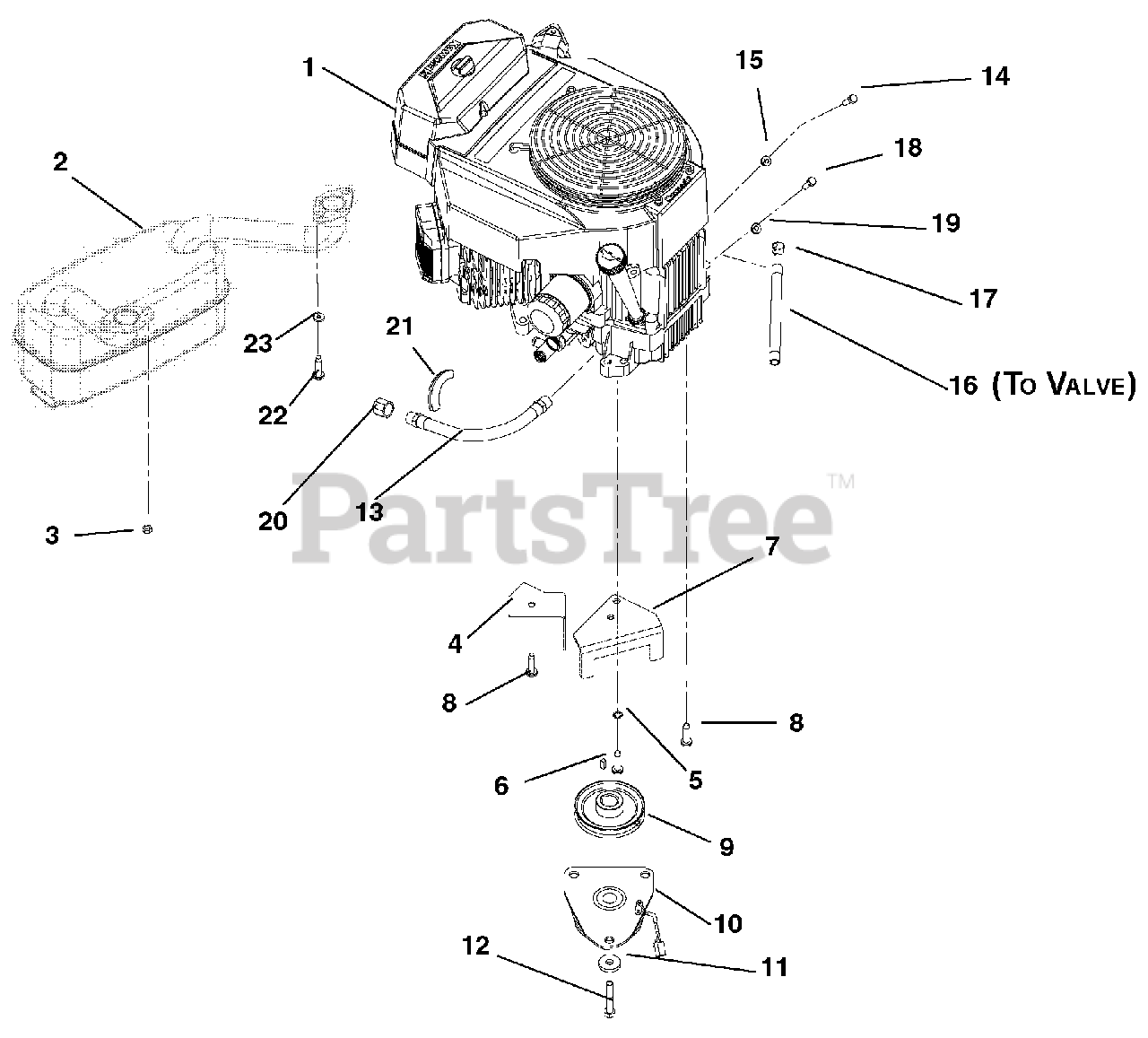

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200718

ENGINE, KAWASAKI FR730 24HP

Note: (991082, 083, 084)

$

$

Not available

1

Gravely 08200717

ENGINE, KAWASAKI FR691 23HP

Note: (991090)

$

$

Not available

1

Gravely 08200728

ENGINE, 27HP COURAGE PRO

Note: (991091)

$

$

Not available

2

Gravely 04411300

MUFFLER, KAW
(Superseded to 05088300)

Note: (991082, 083, 084, 090)

$112.99

$

In Stock, Qty 10

0

2

Gravely 04411400

MUFFLER, KOHLER
(Superseded to 05088400)

Note: (991091)

$87.99

$

In Stock, Qty 5

0

3

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

Note: (991082, 083, 084, 090)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 03772951

GUARD, HD CLUTCH WIRE

$33.99

$

In Stock, only 2 left!

0

5

Gravely 06308700

WSHR-LK-EXT.391X.628X.036YWZC

$2.49

$

In Stock, only 2 left!

0

6

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 20+

0

7

Gravely 03766851

ANCHOR - OGURA CLUTCH - HD

$38.99

$

In Stock, only 4 left!

0

8

Gravely 07000104

BLT, TAP .38-16X1.5 PH TRX YZ

Note: (991091)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05901507

BLT-HEX.38-16X1.25FTHG5 EP80YZ

Note: (991082, 083, 084, 090)

$2.99

$

In Stock, Qty 19

0

9

Gravely 07337167

PULLEY-4.50OD X 1.002 ENGINE

$93.99

$

Usually ships in 4-12 days

0

10

Gravely 04387900

CLUTCH, OGURA GT1A

$369.99

$

In Stock, only 2 left!

0

11

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 05900043

BLT-HEX .44-20X2.75 G5 YZ EP80

$9.99

$

In Stock, Qty 20+

0

13

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

$18.99

$

In Stock, only 2 left!

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 07500106

PROTECTOR, OIL DRAIN HOSE
(Superseded to 07500036)

$

$

Not available

22

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (991091)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (991091)

$1.49

$

In Stock, Qty 20+

0
