991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Frame Parts Diagram

52" Zero-Turn Mower, Kawasaki

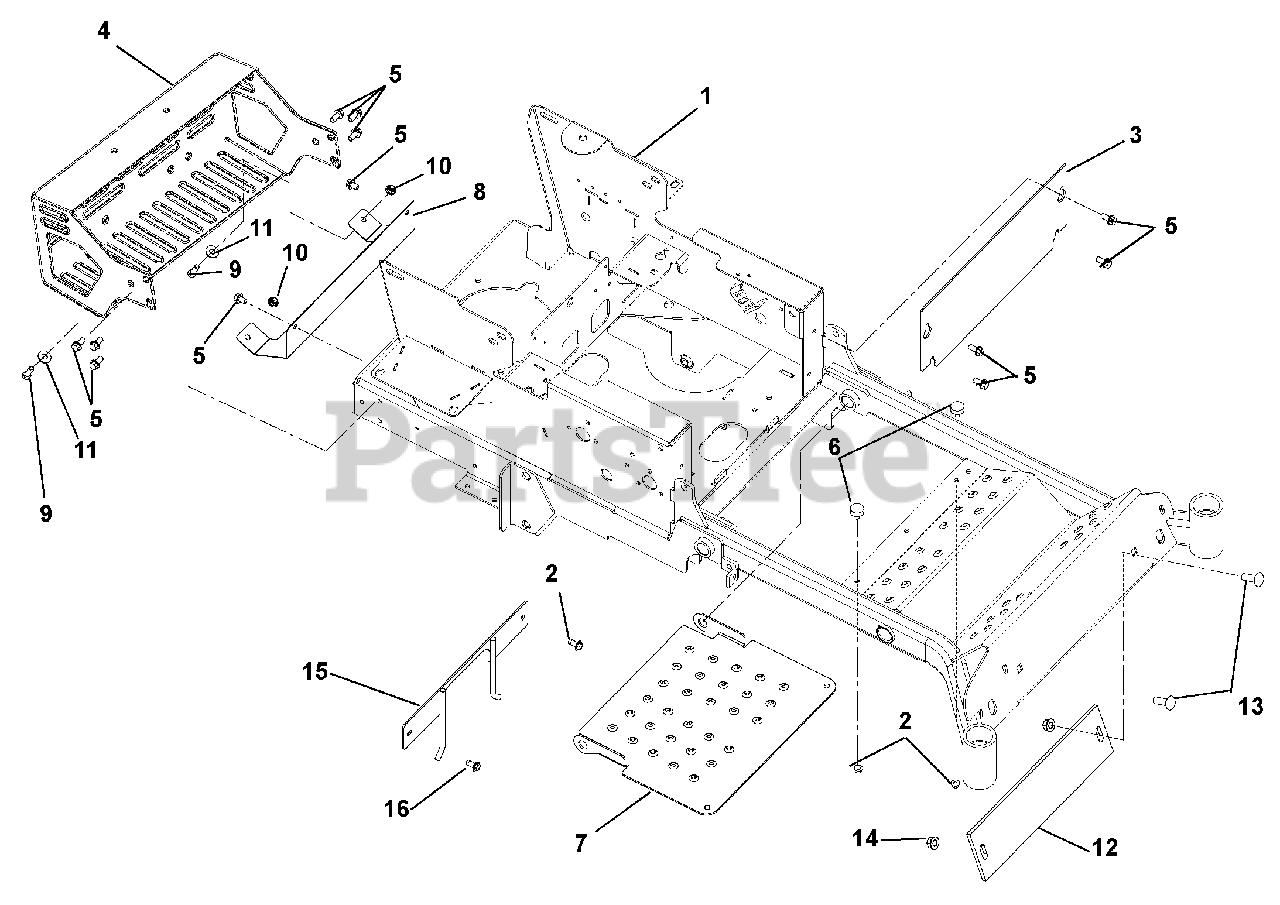

Frame Parts Diagram

  • Title

1

Gravely 03975051

WLDMT, 48" HD FRAME

Note: (991090, 082)

$

$

Not available

1

Gravely 03974951

WLDMT, 52/60" HD FRAME

Note: (991083, 084, 091)

$2149.99

$

Usually ships in 4-12 days

0

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 02989053

KICK PLATE - RED

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 03994551

BUMPER, GRAVELY HD

$150.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

7

Gravely 00298953

PANEL, INSPECTION

$

$

Not available

8

Gravely 00462351

SHIELD - HEAT - CZ PROD

$51.99

$

In Stock, only 1 left!

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01922851

COUNTERWEIGHT, CZ FRONT-BLACK

Note: (991090, 082)

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 5

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

16

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0
