991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Fuel Tanks And Hoses Parts Diagram

52" Zero-Turn Mower, Kawasaki

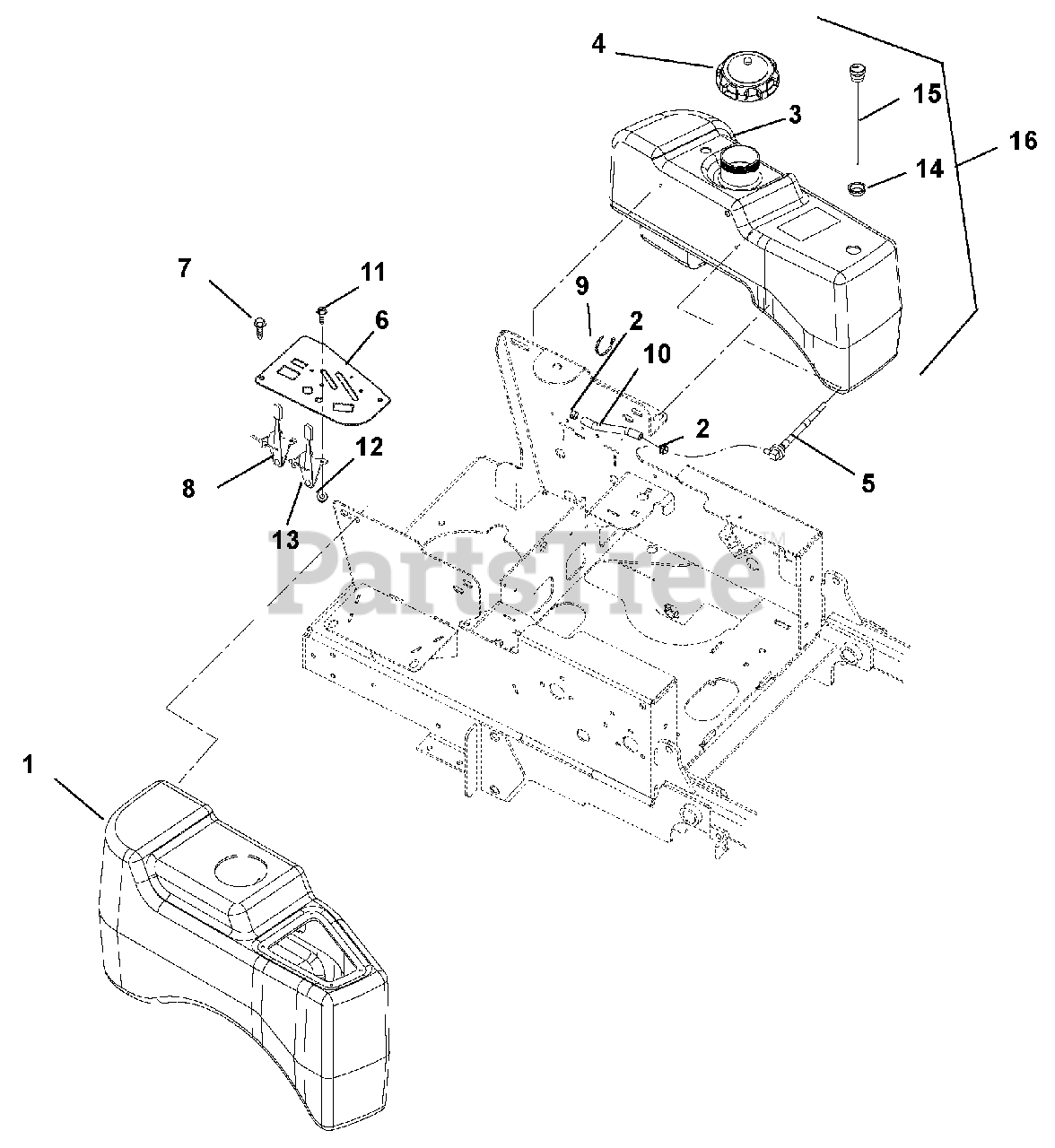

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 04391700

FENDER, RH
(Superseded to 04685900)

$352.99

$

Usually ships in 4-12 days

0

2

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04391600

TANK, LH FUEL
(Superseded to 04739000)

$659.99

$

Usually ships in 4-12 days

0

4

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

$35.99

$

In Stock, Qty 20+

0

5

Gravely 04320900

ASM, FUEL PICK-UP SML/MED TANK

$40.99

$

In Stock, Qty 11

0

6

Gravely 04391851

INSTRUMENT PANEL - BLK

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$1.99

$

In Stock, Qty 13

0

8

Gravely 06900422

CABLE, CONTROL

Note: (991082, 083, 084, 090)

$43.99

$

In Stock, only 2 left!

0

8

Gravely 06900422

CABLE, CONTROL

Note: (991091)

$43.99

$

In Stock, only 2 left!

0

9

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06900320

CABLE, THROTTLE

Note: (991090)

$54.99

$

Usually ships in 4-12 days

0

14

Gravely 07500034

GROMMET, FUEL GAGE

$6.99

$

In Stock, Qty 20+

0

15

Gravely 07500029

GAUGE, REMOTE FUEL 10.0"
(Superseded to 07500309)

$

$

Not available

16

Gravely 04334500

HD, FUEL TANK ASSEMBLY
(Superseded to 04739000)

Note: (Includes item 3, 4, 5, 14, 15; page 11 Item 1 , 2)

$659.99

$

Usually ships in 4-12 days

0
