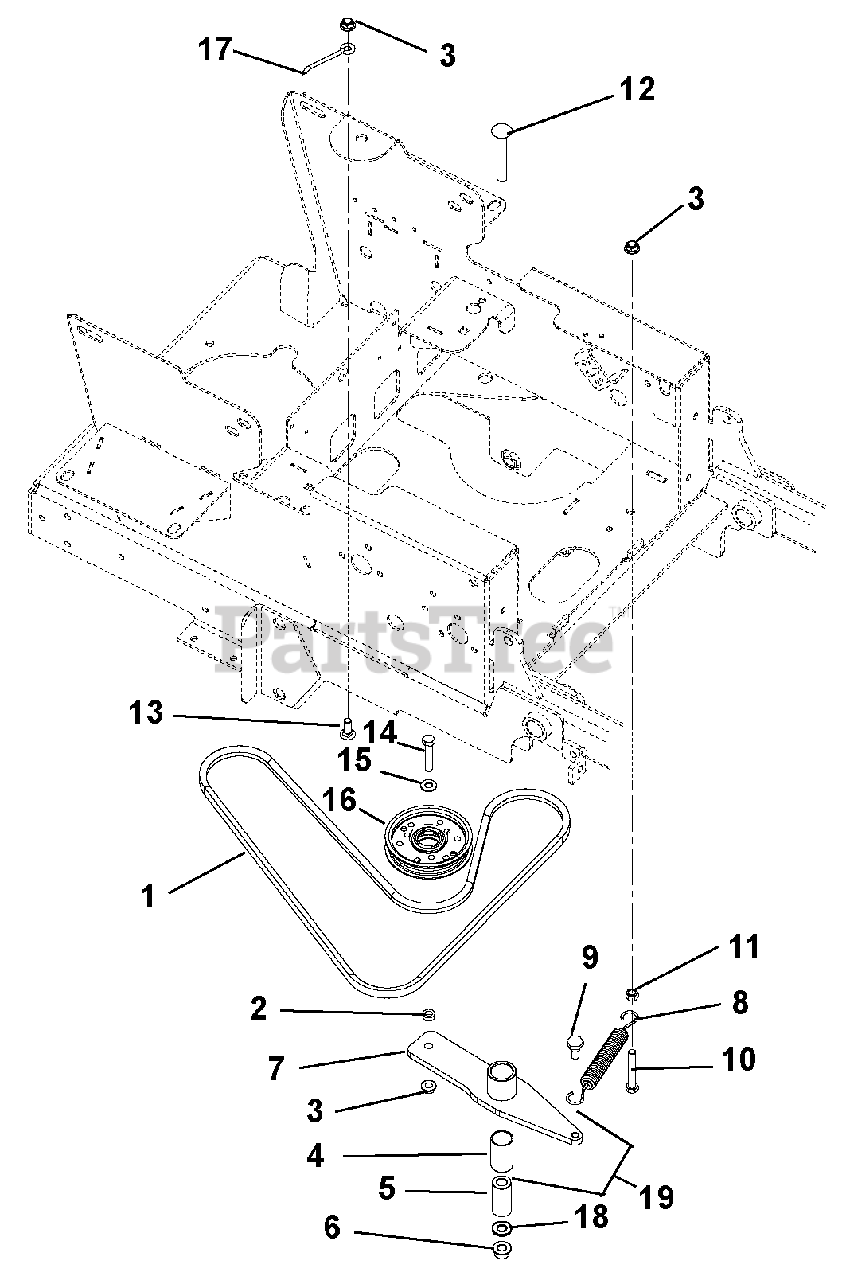

991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Hydro Drive Parts Diagram

52" Zero-Turn Mower, Kawasaki

Hydro Drive Parts Diagram

  • Title

1

Gravely 07211500

V-BELT, 4L-WRAPPED

$51.99

$

In Stock, Qty 20+

0

2

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

3

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

5

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

6

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 03792951

HYDRO DRIVE IDLER ARM WMT -BLK

$79.99

$

Usually ships in 4-12 days

0

8

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

9

Gravely 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 17

0

10

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05960000

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

Note: (.75 Wide)

$64.99

$

In Stock, Qty 20+

0

17

Gravely 00391900

BELT FINGER

$21.99

$

In Stock, Qty 8

0

18

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 03796200

ASM, IDLER PIVOT ARM (HYDRO)

Note: (Includes item 4 and 7)

$75.99

$

In Stock, only 3 left!

0
