991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 010000 - 019999) Mounting Arms Parts Diagram

52" Zero-Turn Mower, Kawasaki

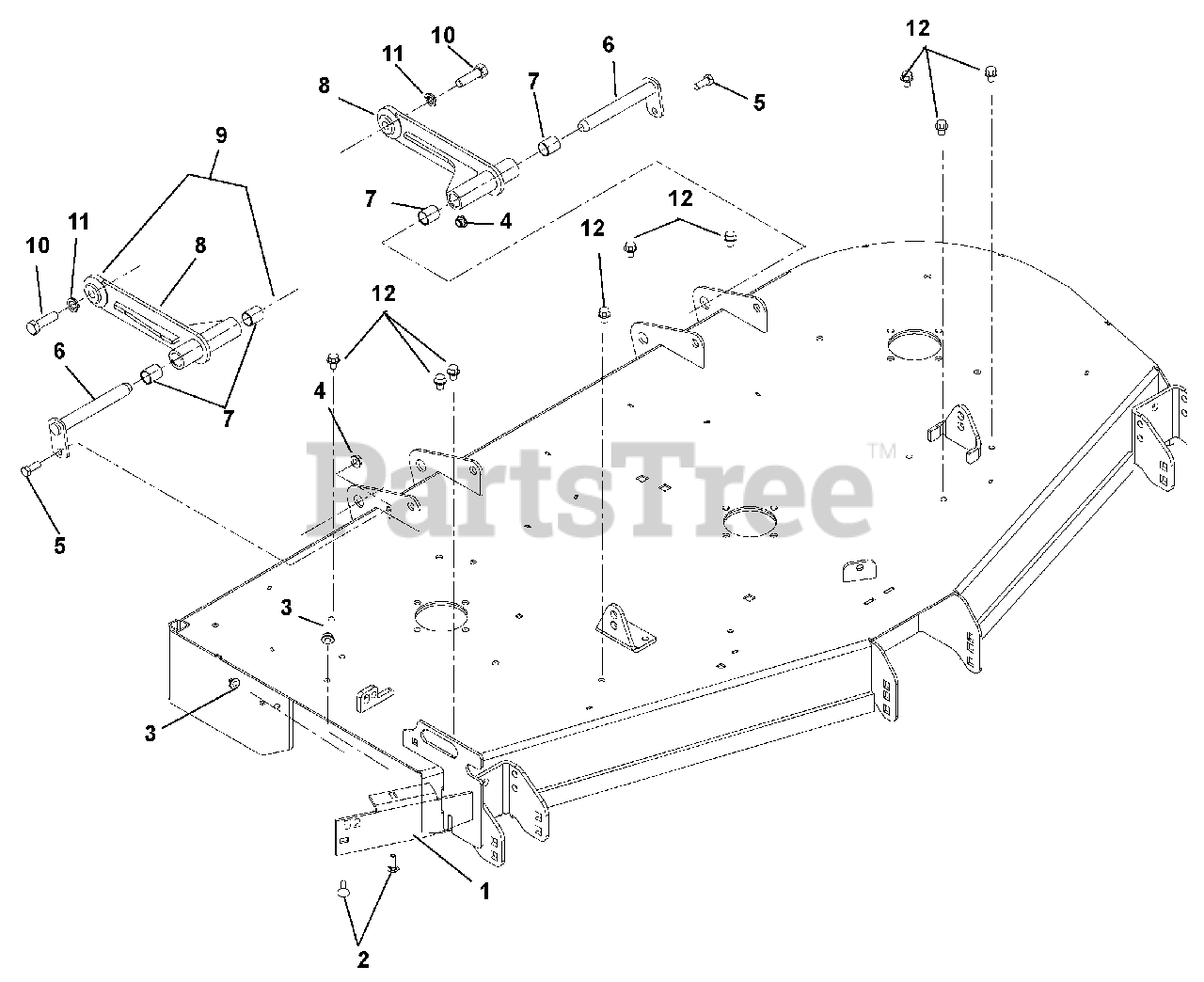

Mounting Arms Parts Diagram

  • Title

1

Gravely 04389353

BAFFLE, DISCHARGE 44/48

Note: (991082, 090)

$73.99

$

Usually ships in 4-12 days

0

1

Gravely 04389553

BAFFLE, DISCHARGE, 60"

Note: (991084, 091)

$31.99

$

Usually ships in 4-12 days

0

1

Gravely 04389453

BAFFLE, DISCHARGE, 52"

Note: (991083)

$28.99

$

Usually ships in 4-12 days

0

2

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

7

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

8

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

$110.99

$

Usually ships in 4-12 days

0

9

Gravely 03251800

DECK PUSHER ARM ASSEMBLY

Note: (Includes items 7 and 8)

$128.99

$

Usually ships in 4-12 days

0

10

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$4.99

$

In Stock, Qty 15

0

11

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0
