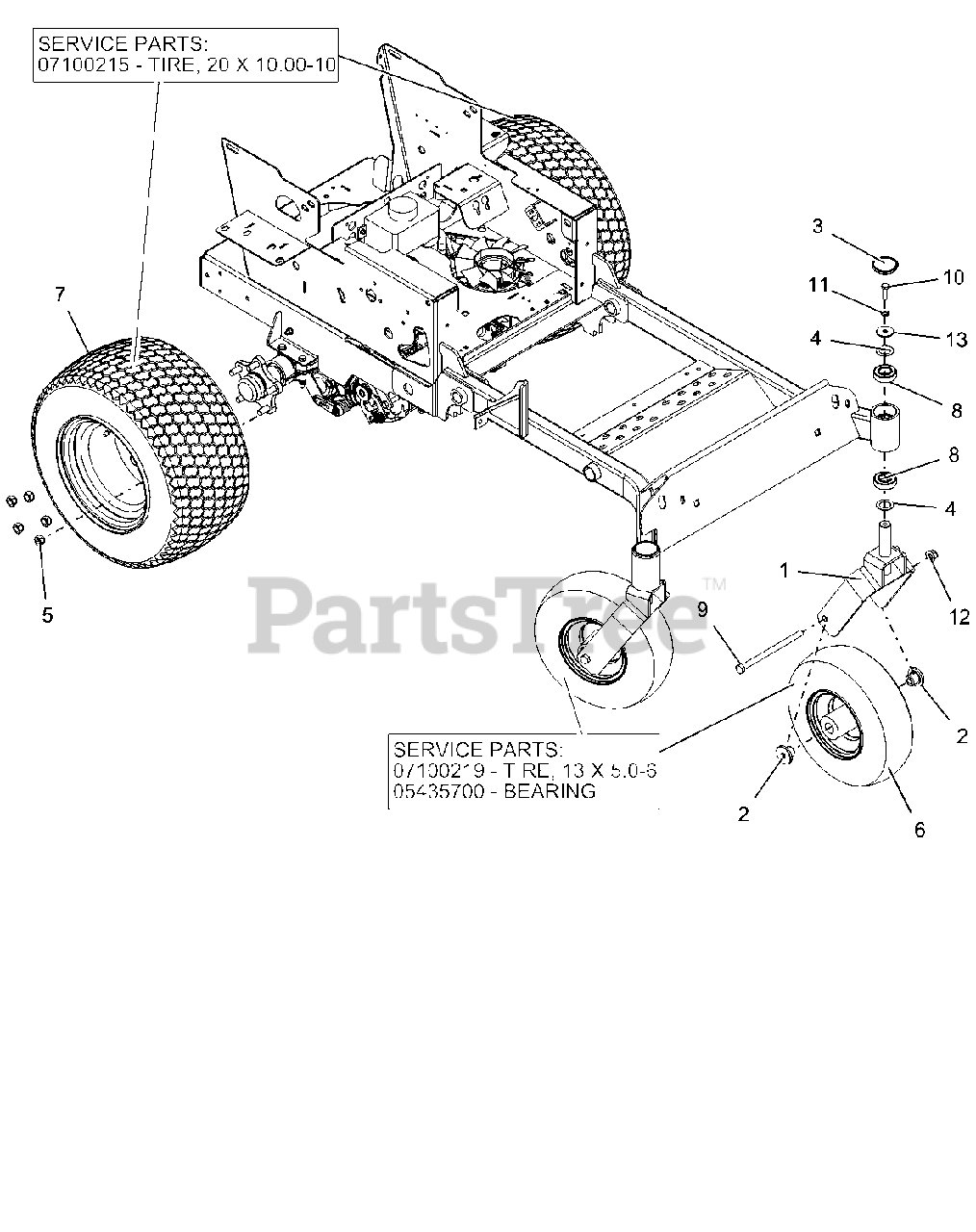

991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 060000 & Above) Casters And Tires Parts Diagram

52" Zero-Turn Mower, Kawasaki

Casters And Tires Parts Diagram

  • Title

1

Gravely 04965351

WLDMT, HD FRONT FORK

$122.99

$

Usually ships in 4-12 days

0

2

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

3

Gravely 04792200

CAP, DUST

$13.99

$

In Stock, Qty 20+

0

4

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

5

Gravely 06517600

WHEEL NUT .500-20 YZ
(Superseded to 06500926)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

Note: SERVICE PART

$25.99

$

In Stock, Qty 20+

0

6

Gravely 07100219

TIRE, 13X5.00-6
(Superseded to 07101609)

Note: SERVICE PART

$68.99

$

Usually ships in 4-12 days

0

6

Gravely 07101111

ASM, WHL/TIRE 13X5.00-6

$131.99

$

In Stock, Qty 20+

0

7

Gravely 07100215

TIRE, 20X10.00-10

Note: SERVICE PART

$125.99

$

Usually ships in 4-12 days

0

7

Gravely 07101114

ASM, WHL/TIRE 20X10.00-10

$200.99

$

Usually ships in 4-12 days

0

8

Gravely 05400722

BRG,BALL 1.00X2.00X.563(1641)

$19.99

$

In Stock, Qty 20+

0

9

Gravely 05978200

BLT-HEX .50-13X7.50 GR5 YWZC
(Superseded to 05902023)

$8.49

$

In Stock, Qty 17

0

10

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0
