991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 060000 & Above) Fuel Sysem - Non-Carb Parts Diagram

52" Zero-Turn Mower, Kawasaki

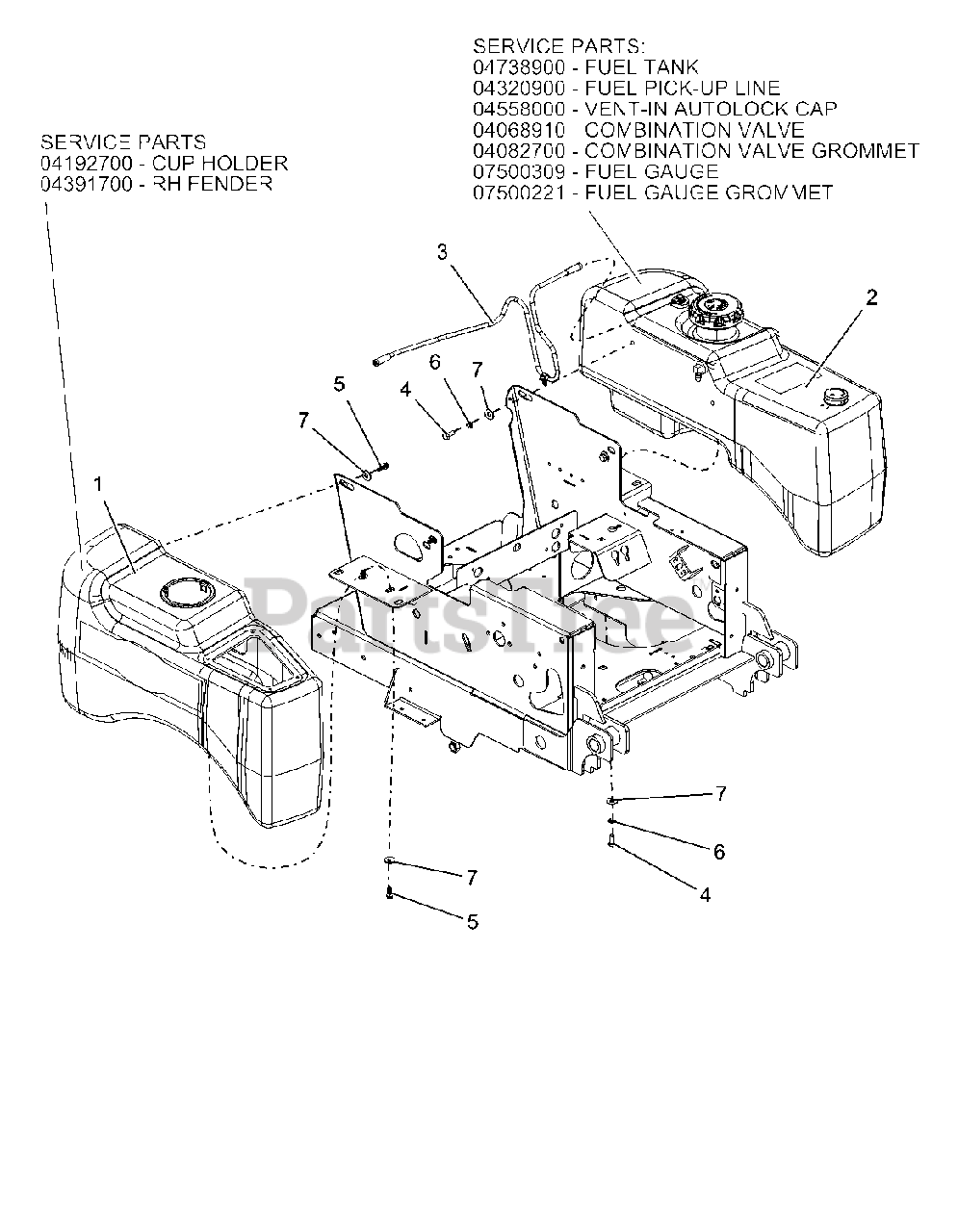

Fuel Sysem - Non-Carb Parts Diagram

  • Title

1

Gravely 04192700

CUPHOLDER, SNAP-IN 3.75OD

Note: SERVICE PART

$23.99

$

Usually ships in 4-12 days

0

1

Gravely 04391700

FENDER, RH
(Superseded to 04685900)

Note: SERVICE PART

$352.99

$

Usually ships in 4-12 days

0

1

Gravely 04685900

ASM, FENDER W/CUPHOLDER

$352.99

$

Usually ships in 4-12 days

0

2

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

Note: SERVICE PART

$18.99

$

In Stock, Qty 5

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Gravely 04320900

ASM, FUEL PICK-UP SML/MED TANK

Note: SERVICE PART

$40.99

$

In Stock, Qty 11

0

2

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$35.99

$

In Stock, Qty 20+

0

2

Gravely 07500221

GROMMET, FUEL GAUGE

Note: SERVICE PART

$6.49

$

In Stock, Qty 14

0

2

Gravely 07500309

GAUGE, REMOTE FUEL SEALED 10"
(Superseded to 07500538)

Note: SERVICE PART

$43.99

$

In Stock, Qty 20+

0

2

Gravely 04739000

HD, FUEL TANK ASSEMBLY

$659.99

$

Usually ships in 4-12 days

0

2

Gravely 04738900

TANK, LH FUEL

Note: SERVICE PART

$

$

Not available

3

Gravely 04459400

LINE, ZTHD KAWASAKI EVAP

$36.99

$

Usually ships in 4-12 days

0

4

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$1.99

$

In Stock, Qty 13

0

6

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
