991084 (ZT 60 HD) - Gravely 60" Zero-Turn Mower, Kawasaki (SN: 060000 & Above) Deck Mount And Baffles - 60" Parts Diagram

60" Zero-Turn Mower, Kawasaki

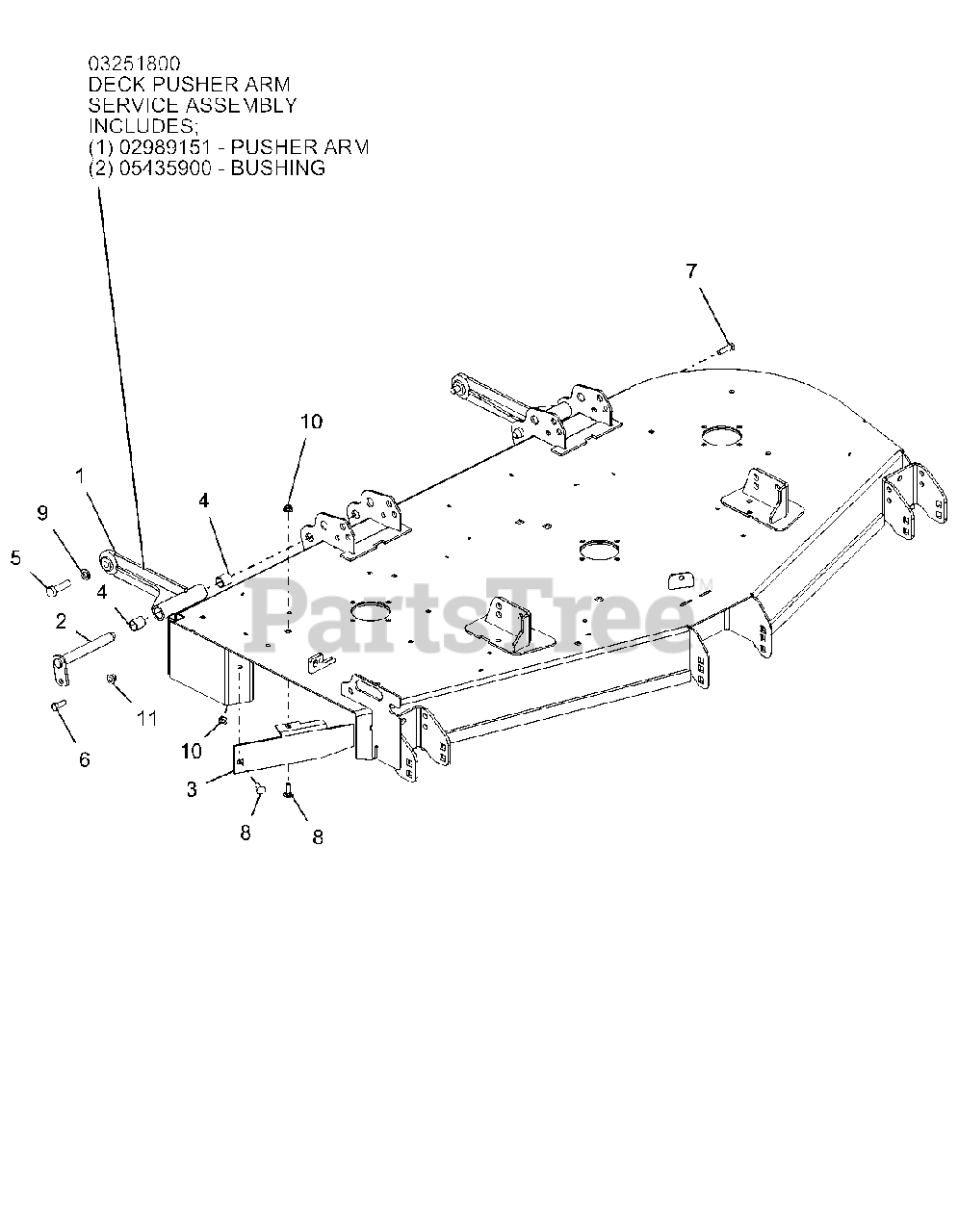

Deck Mount And Baffles - 60" Parts Diagram

  • Title

1

Gravely 05435900

BRG, .750 X .875 X 1.000

Note: SERVICE PART

$7.49

$

In Stock, Qty 20+

0

1

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

$115.99

$

In Stock, only 2 left!

0

1

Gravely 02989151

DECK PUSHER ARM WMT - BLACK

Note: SERVICE PART

$115.99

$

In Stock, only 2 left!

0

1

Gravely 03251800

DECK PUSHER ARM ASSEMBLY

Note: SERVICE PART

$142.99

$

Usually ships in 4-12 days

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$66.99

$

In Stock, Qty 8

0

3

Gravely 04389553

BAFFLE, DISCHARGE, 60"

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$7.49

$

In Stock, Qty 20+

0

5

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$5.49

$

In Stock, Qty 9

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0
