991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 000101 - 009999) EPA Vent Lines Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

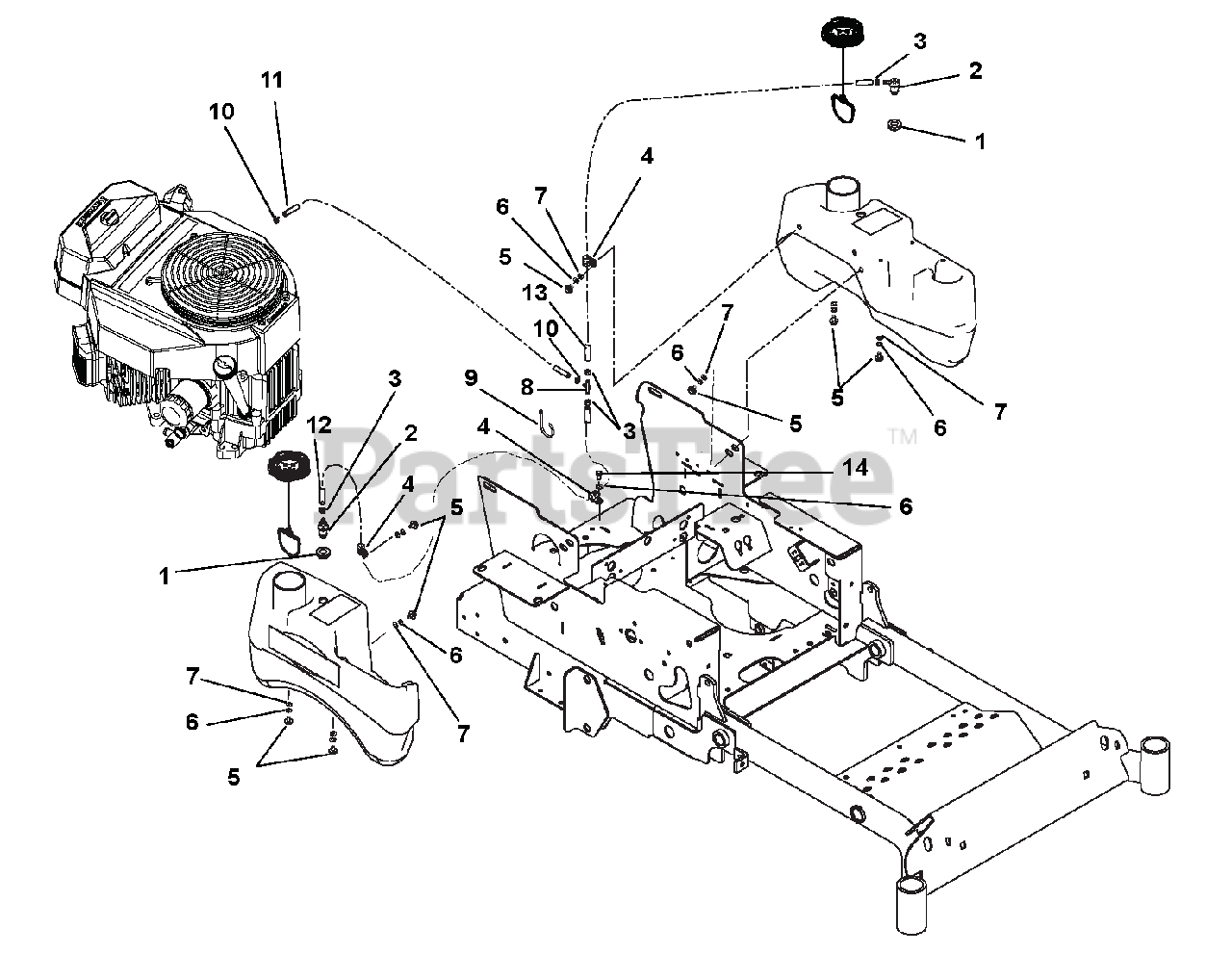

EPA Vent Lines Parts Diagram

  • Title

1

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

2

Ariens 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$13.99

$

In Stock, only 3 left!

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

4

Ariens 06908200

CLAMP, CUSHIONED STEEL

$5.99

$

Usually ships in 4-12 days

0

5

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

8

Ariens 04306900

TEE,1/4HS RUN X 3/16HS BRANCH

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

10

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05973300

@BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

$1.49

$

Usually ships in 4-12 days

0
