991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 000101 - 009999) Fuel Tanks and Hoses Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

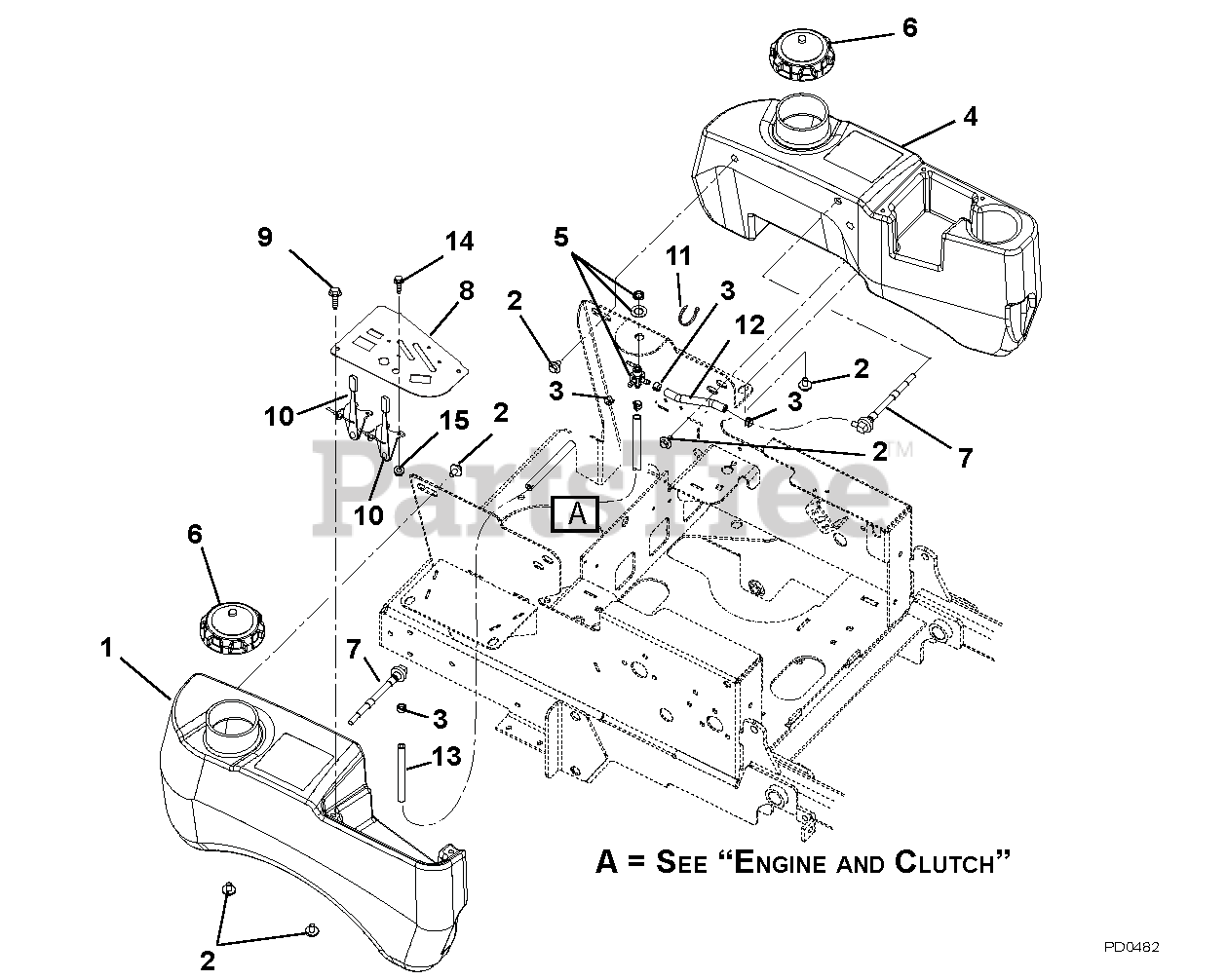

Fuel Tanks and Hoses Parts Diagram

  • Title

1

Ariens 09298200

TANK, FUEL RH W/O HOSE

Note: (S/N 101 - 2499)

$

$

Not available

Ariens 04245100

TANK, RH SMALL ARIENS FUEL

Note: (S/N 2500 and up)

$186.99

$

Usually ships in 4-12 days

0

2

Ariens 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 5

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

Usually ships in 4-12 days

0

4

Ariens 00262700

TANK, LH FUEL CZ W/O HOSE

Note: (S/N 101 - 2499)

$

$

Not available

Ariens 04245200

TANK, LH SMALL ARIENS FUEL

Note: (S/N 2500 and up)

$188.99

$

Usually ships in 4-12 days

0

5

Ariens 09258200

VALVE, FUEL

$48.99

$

In Stock, only 3 left!

0

6

Ariens 03859100

CAP, FUEL

Note: (S/N 101 - 2499)

$29.99

$

In Stock, only 2 left!

0

Ariens 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

Note: (S/N 2500 and up)

$35.99

$

In Stock, only 2 left!

0

7

Ariens 03900400

ASS'Y, SMALL TANK FUEL PICK-UP
(Superseded to 04320900)

$40.99

$

In Stock, Qty 5

0

8

Ariens 04041751

PANEL - CONTROL

$15.99

$

Usually ships in 4-12 days

0

9

Ariens 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06900422

CABLE, CONTROL

$43.99

$

In Stock, only 3 left!

0

11

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

12

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
