991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 000101 - 009999)

Max-Zoom 48" Zero-Turn Mower, Kohler

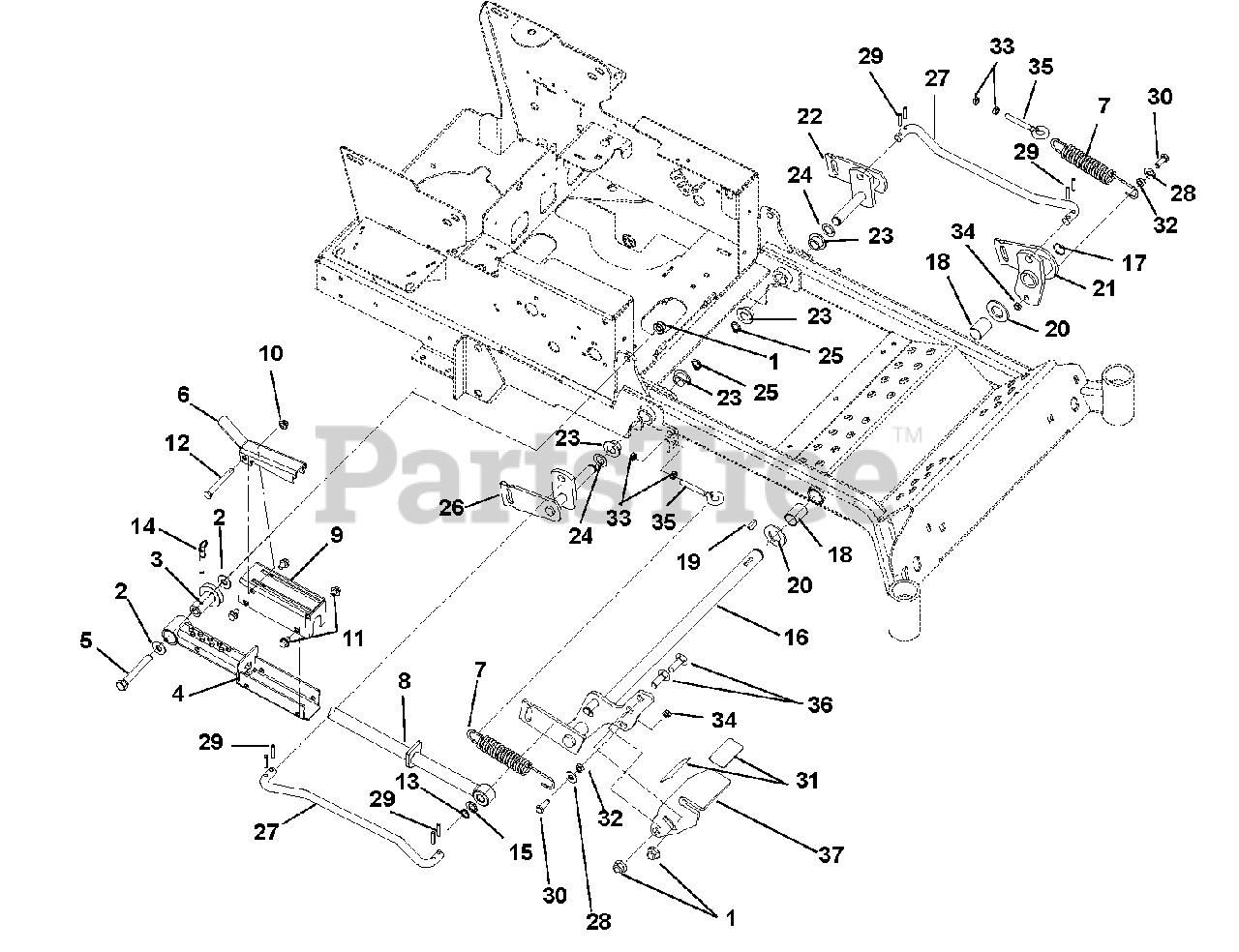

991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 000101 - 009999) > Parts Diagrams (21) > Mechanical Lift

  • Title
06500010

1

@NUT-LK-NYL-FLG .50-13 YWZC

Part# 06500010

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06430200

2

WSHR-FL-STL .531X1.250X.10 YWZ

Part# 06430200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07000031

3

BEARING, PEDESTAL

Part# 07000031

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $49.02

09286251

4

WMT, MECHANICAL LIFT

Part# 09286251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.25

05960100

5

@BLT-HEX .50-13X3.75 GR5 YWZC

Part# 05960100

OEM Warranty Repair Part for Ariens

Not available

09299651

6

LOCK-UP, MECH LIFT

Part# 09299651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

08319000

7

SG-TENS .162X1.25X8.25 WLD 25

Part# 08319000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

09291500

8

WMT, MECH. LIFT SHAFT (.62)

Part# 09291500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $147.52

09299451

9

WMT, MECH LIFT COVER

Part# 09299451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.19

06545500

10

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07412900

11

@SCR-TAP .38-16X.50 HWH TR YWZ

Part# 07412900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05961100

12

@BLT-HEX .38-16X3.25 GR5 YWZC

Part# 05961100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05709200

13

RG-RTNG-EXT .625X.050

Part# 05709200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

01593500

14

PIN, SPRING BALL .375OD X 1.50

Part# 01593500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06436100

15

WSHR-FL-STL .630X1.005X.062 YZ

Part# 06436100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

04277300

16

WMT,DECK LIFT,ADJ FOOT PEDAL

Part# 04277300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $174.35

05707300

17

RG-RTNG-EXT 1.00X.078

Part# 05707300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05500034

18

BSHG,1.00ID X 1.125OD X 1.50LG

Part# 05500034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

06608900

19

KEY-WDRF .25X1.00 HRD #15

Part# 06608900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06443000

20

WSHR-FL-STL- 1.062X2.0X.134 YZ

Part# 06443000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00441000

21

WMT, LH FRONT MOWER LIFT

Part# 00441000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $76.70

00481600

22

WMT, LH REAR LIFT ARM (100)

Part# 00481600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

05518400

23

BSHG-FLG .762X1.0X.580X1.48 NY

Part# 05518400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06413400

24

WSHR-HDND-THRST .758X1.23X.031

Part# 06413400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05714600

25

RG-RTNG-EXT .689X.078

Part# 05714600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00481500

26

WMT, RH REAR LIFT ARM (100)

Part# 00481500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

04063000

27

ROD-LIFT ASSIST 16.35"

Part# 04063000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $41.03

06435900

28

@WSHR-FL-STL.438X1.00X.083 YWZ

Part# 06435900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05800001

29

PIN-ROLL .250X1.25 STNLESS STL

Part# 05800001

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

05948700

30

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00270100

31

GRIP, PEDAL 1.50 X 3.00

Part# 00270100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05508900

32

BSHG-SLV .377X.624X.235

Part# 05508900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06535900

33

NUT-HEX-JAM .375-16 YWZC

Part# 06535900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06537200

34

@NUT-LK-CTR-JAM .375-16 YWZC

Part# 06537200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07030000

35

BLT-EYE .375-16X2.50 YWZC

Part# 07030000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.77

06223100

36

@BLT-RDHDSQNK .50-13X1.50 G5YZ

Part# 06223100

OEM Warranty Repair Part for Ariens

Not available

04088651

37

ADJUSTABLE FOOT LIFT PEDAL-BLK

Part# 04088651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14
