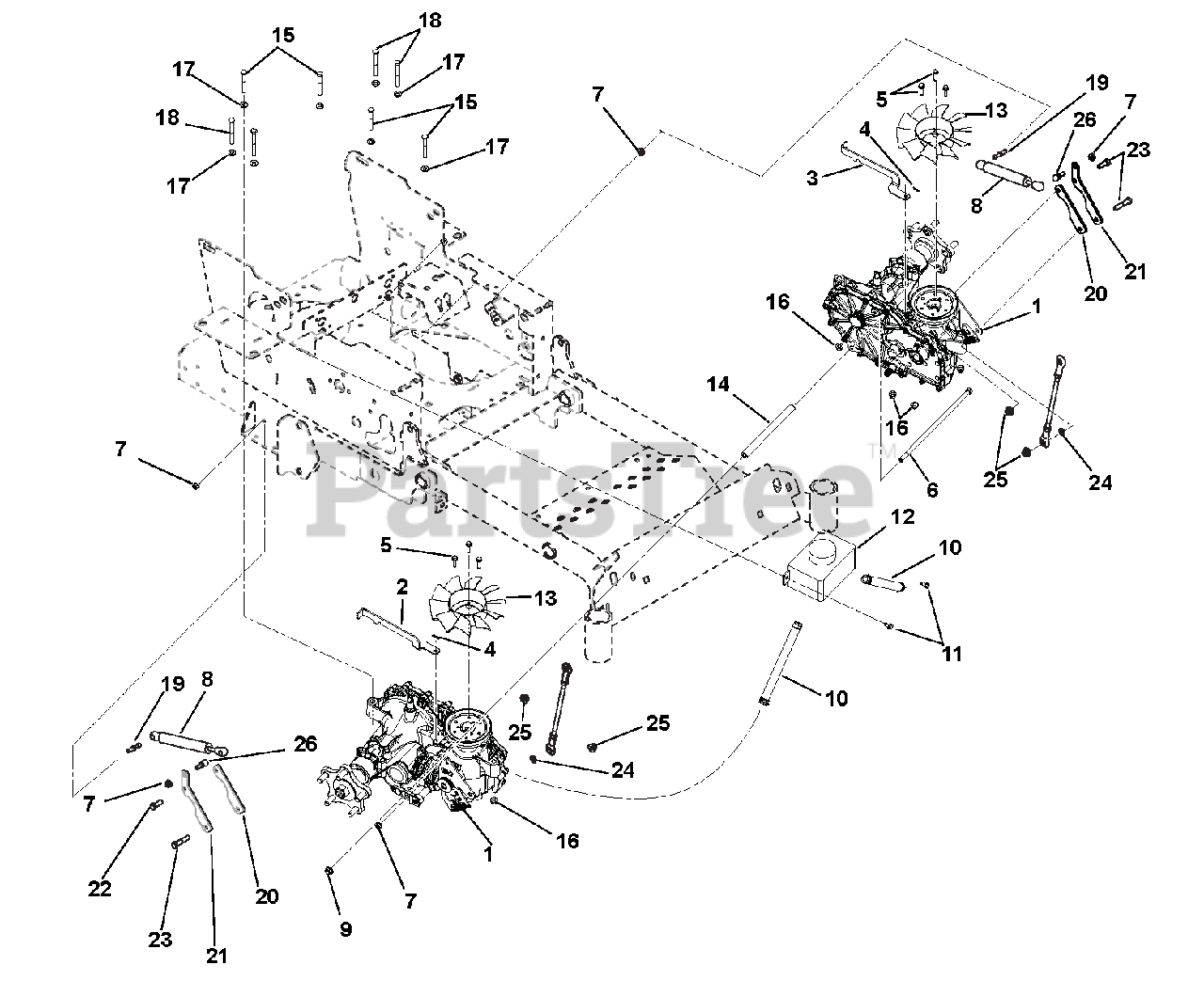

991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 000101 - 009999) > Parts Diagrams (21) > Transmission

  • Title
03283700

1

TRANSAXLE, 3100 SERIES - LH

Part# 03283700 (Superseded to 04827700)

Note: (page 14)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1120.10

03283600

TRANSAXLE, 3100 SERIES - RH

Part# 03283600 (Superseded to 04827800)

Note: (page 16)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1120.10

03282851

2

RH DUMP VALVE LEVER - BLACK

Part# 03282851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.00

03282951

3

LH DUMP VALVE LEVER - BLACK

Part# 03282951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

06701900

4

PIN-HAIR INT .06X.18X.77

Part# 06701900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07412400

5

@SCR-TAP .25-20X1.00 HWH TR YZ

Part# 07412400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05901315

6

BLT HEX, .38-16X11.00 GR5 YWZC

Part# 05901315

OEM Warranty Repair Part for Ariens

Not available

06543100

7

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

03769800

8

DAMPER

Part# 03769800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $53.61

06545500

9

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03251900

10

ASM, HYDRO OVERFLOW TANK HOSE

Part# 03251900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.88

07412000

11

@SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02958700

12

TANK, EXPANSION

Part# 02958700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.13

03283500

13

FAN, 2800 SERIES COOLING

Part# 03283500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.13

03367200

14

SPCR,.406 ID X .630 OD X 7.724

Part# 03367200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $18.39

05952600

15

@BLT-HEX .31-18X2.50 GR5 YWZC

Part# 05952600

OEM Warranty Repair Part for Ariens

Not available

06545400

16

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06437200

17

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05962500

18

@BLT-HEX .31-18X3.00 GR5 YWZC

Part# 05962500

OEM Warranty Repair Part for Ariens

Not available

04097100

19

STUD-BALL-THREADED

Part# 04097100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03855000

20

PLATE, CONTROL REINFORCEMENT

Part# 03855000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.71

04276700

21

PLATE,TRANSMISSION DAMPER MTG

Part# 04276700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

05948700

22

@BLT-HEX .38-16X1.00 GR5 YWZC

Part# 05948700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958500

23

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06308800

24

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06545500

25

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03652200

26

STUD- BALL

Part# 03652200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89
