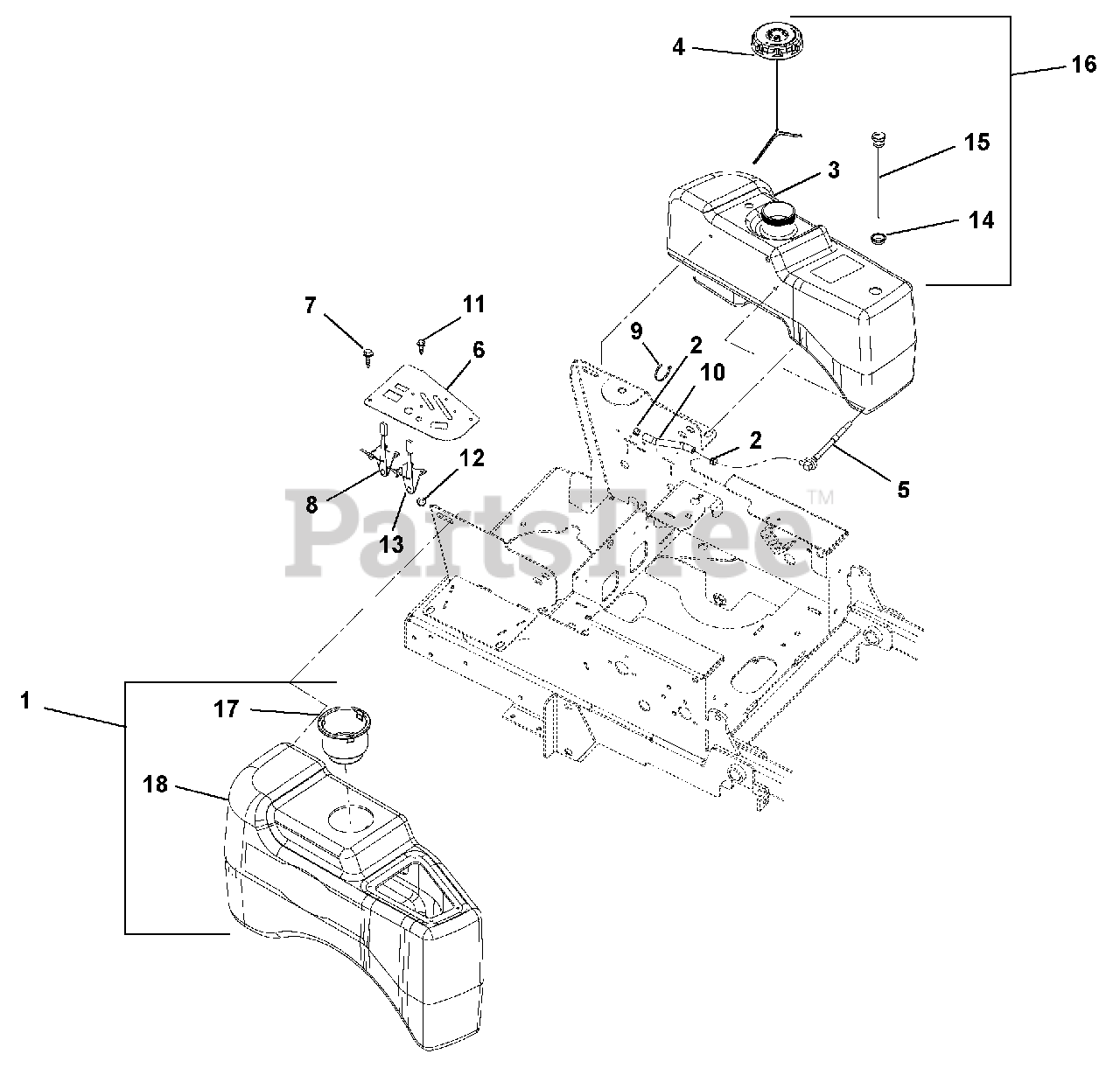

991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 030000 - 044999) Fuel Tanks And Hoses Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Ariens 04685900

ASM, FENDER W/CUPHOLDER

Note: (Includes items 17 and 18)

$339.99

$

Usually ships in 4-12 days

0

2

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

3

Ariens 04391600

TANK, LH FUEL
(Superseded to 04739000)

$594.99

$

Usually ships in 4-12 days

0

4

Ariens 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

5

Ariens 04320900

ASM, FUEL PICK-UP SML/MED TANK

$39.99

$

In Stock, Qty 12

0

6

Ariens 04391851

INSTRUMENT PANEL - BLK

$34.99

$

Usually ships in 4-12 days

0

7

Ariens 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 06900422

CABLE, CONTROL

$39.99

$

In Stock, Qty 7

0

9

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

10

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

13

Ariens 06900320

CABLE, THROTTLE

$52.99

$

In Stock, only 1 left!

0

14

Ariens 07500034

GROMMET, FUEL GAGE

$6.49

$

In Stock, Qty 13

0

15

Ariens 07500029

GAUGE, REMOTE FUEL 10.0"
(Superseded to 07500309)

$47.99

$

In Stock, Qty 10

0

16

Ariens 04334500

HD, FUEL TANK ASSEMBLY
(Superseded to 04739000)

Note: (Includes items 3, 4, 5, 14, 15 above and items 1, 2 on page 11)

$594.99

$

Usually ships in 4-12 days

0

17

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

$21.99

$

Usually ships in 4-12 days

0

18

Ariens 04391700

FENDER, RH
(Superseded to 04685900)

$339.99

$

Usually ships in 4-12 days

0
