991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 050000 - 059999) Brakes Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

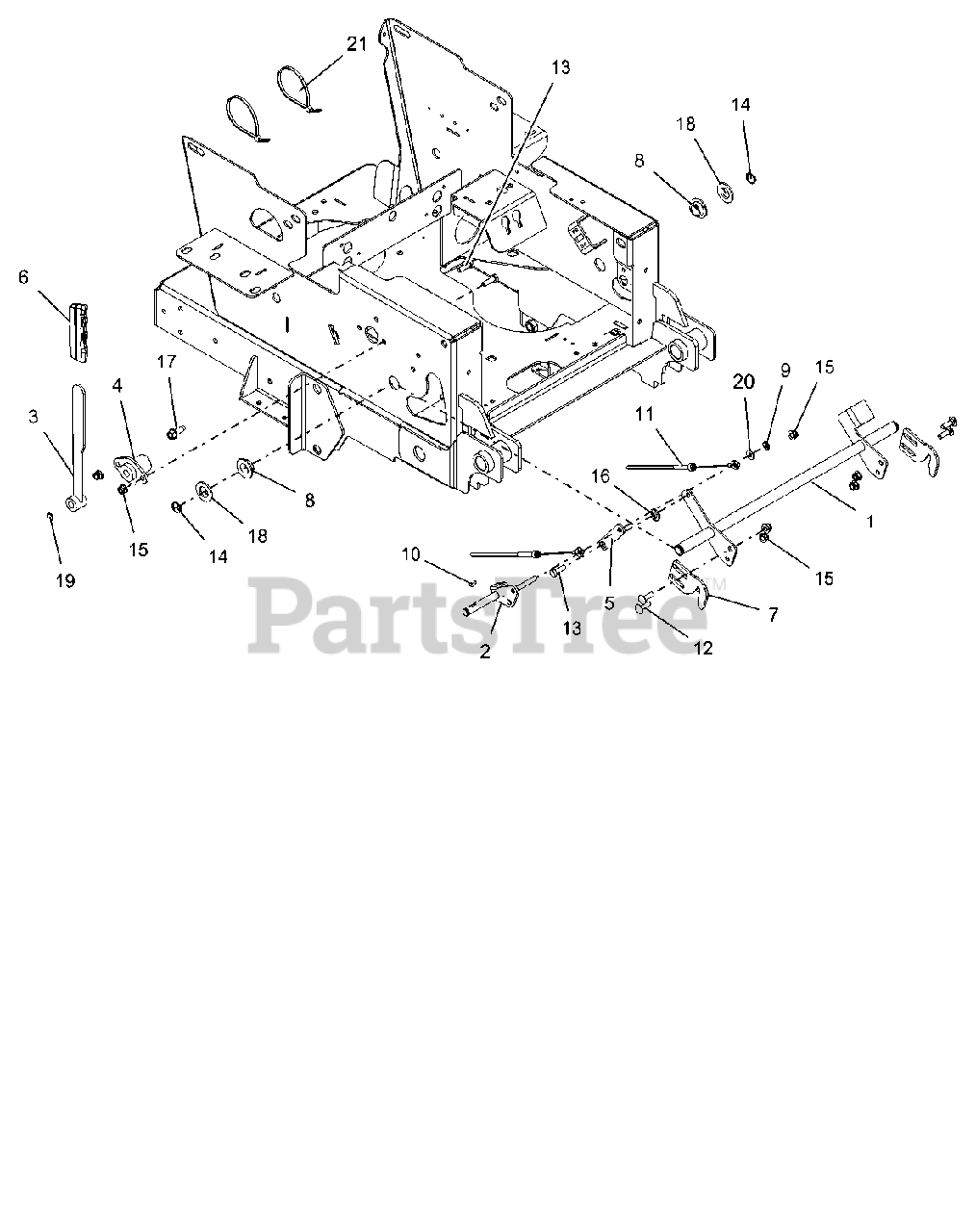

Brakes Parts Diagram

  • Title

1

Ariens 03780600

WMT, NEUTRAL INTERLOCK

$58.99

$

Usually ships in 4-12 days

0

2

Ariens 03251100

WMT, PARK BRAKE ARM

$63.99

$

Usually ships in 4-12 days

0

3

Ariens 03795900

WMT - PARKING BRAKE ARM

$149.99

$

In Stock, only 1 left!

0

4

Ariens 01522000

BUSHING, FLANGED

$35.99

$

In Stock, only 1 left!

0

5

Ariens 03780900

PLATE, NEUTRAL INTERLOCK

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$4.99

$

In Stock, only 3 left!

0

7

Ariens 03861451

NEUTRAL LOCK LATCH - BLACK

$14.99

$

Usually ships in 4-12 days

0

8

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

11

Ariens 06900318

CABLE, BRAKE ACTUATING

$42.99

$

In Stock, only 2 left!

0

12

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

14

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, Qty 5

0

15

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

17

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

19

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

20

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available
