991085 - Ariens Max-Zoom 48" Zero-Turn Mower, Kohler (SN: 060000 & Above) Fuel Tanks And Hoses Parts Diagram

Max-Zoom 48" Zero-Turn Mower, Kohler

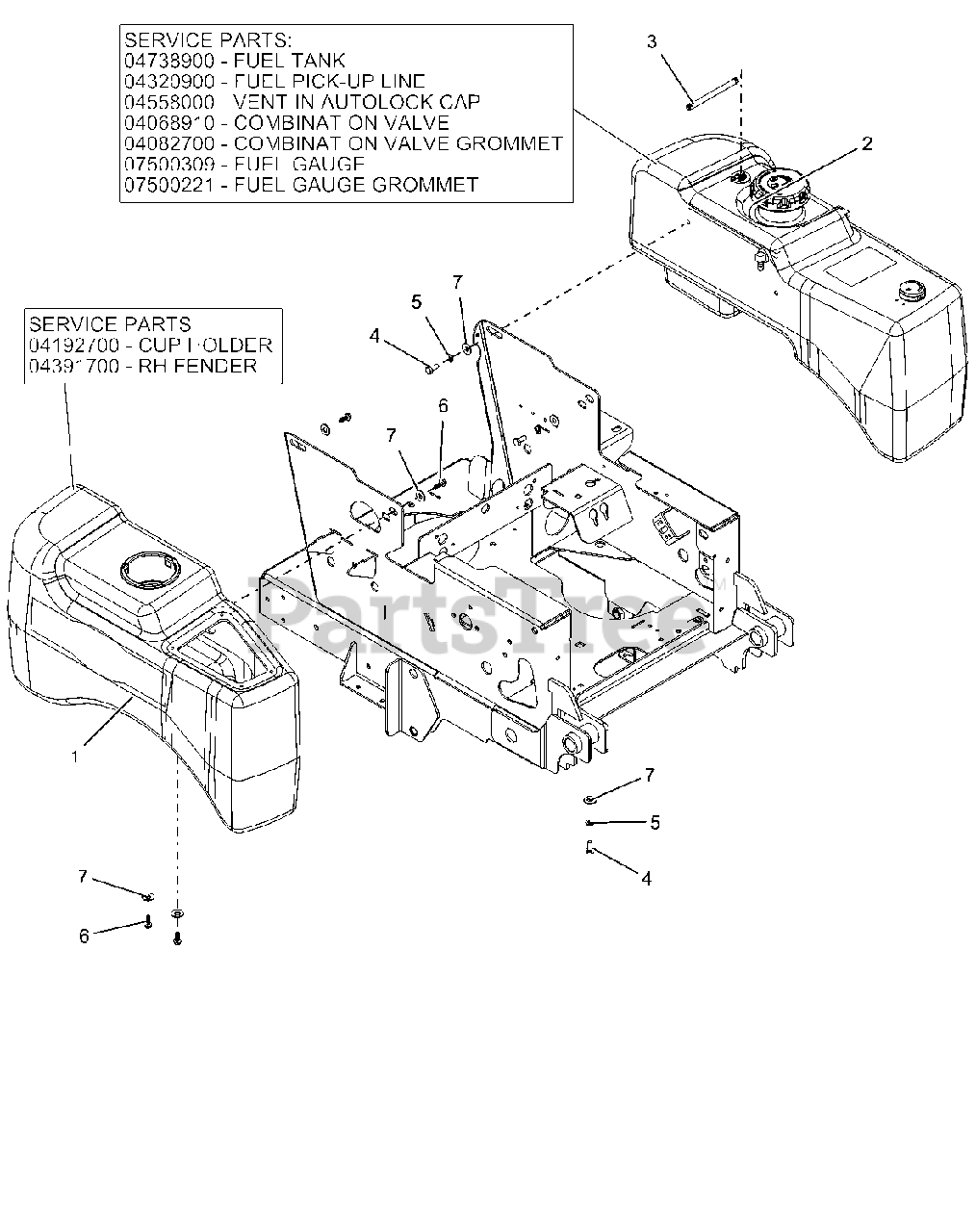

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

Note: SERVICE PART

$23.99

$

Usually ships in 4-12 days

0

1

Ariens 04391700

FENDER, RH
(Superseded to 04685900)

Note: SERVICE PART

$352.99

$

Usually ships in 4-12 days

0

1

Ariens 04685900

ASM, FENDER W/CUPHOLDER

$352.99

$

Usually ships in 4-12 days

0

2

Ariens 04320900

ASM, FUEL PICK-UP SML/MED TANK

Note: SERVICE PART

$40.99

$

In Stock, Qty 20+

0

2

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Ariens 04068910

VALVE, COMBINATION
(Superseded to 05185600)

Note: SERVICE PART

$18.99

$

In Stock, Qty 14

0

2

Ariens 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

Note: SERVICE PART

$35.99

$

In Stock, Qty 10

0

2

Ariens 04739000

HD, FUEL TANK ASSEMBLY

$659.99

$

Usually ships in 4-12 days

0

2

Ariens 04738900

TANK, LH FUEL

Note: SERVICE PART

$

$

Not available

2

Ariens 07500309

GAUGE, REMOTE FUEL SEALED 10"

Note: SERVICE PART

$

$

Not available

2

Ariens 07500221

GROMMET, FUEL GAUGE

Note: SERVICE PART

$6.49

$

In Stock, Qty 14

0

3

Ariens 04835100

ASM, VENT LINE - MAX ZOOM

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06100213

SCR-PLASTITE .25-10X.75, YWZC
(Superseded to 06100231)

$1.99

$

In Stock, Qty 6

0

7

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
