991086 - Ariens Max-Zoom 52" Zero-Turn Mower, 24hp Kawasaki (SN: 045000 - 049999) Deck Belts Spindles And Blades - 52 Inch Parts Diagram

Max-Zoom 52" Zero-Turn Mower, 24hp Kawasaki

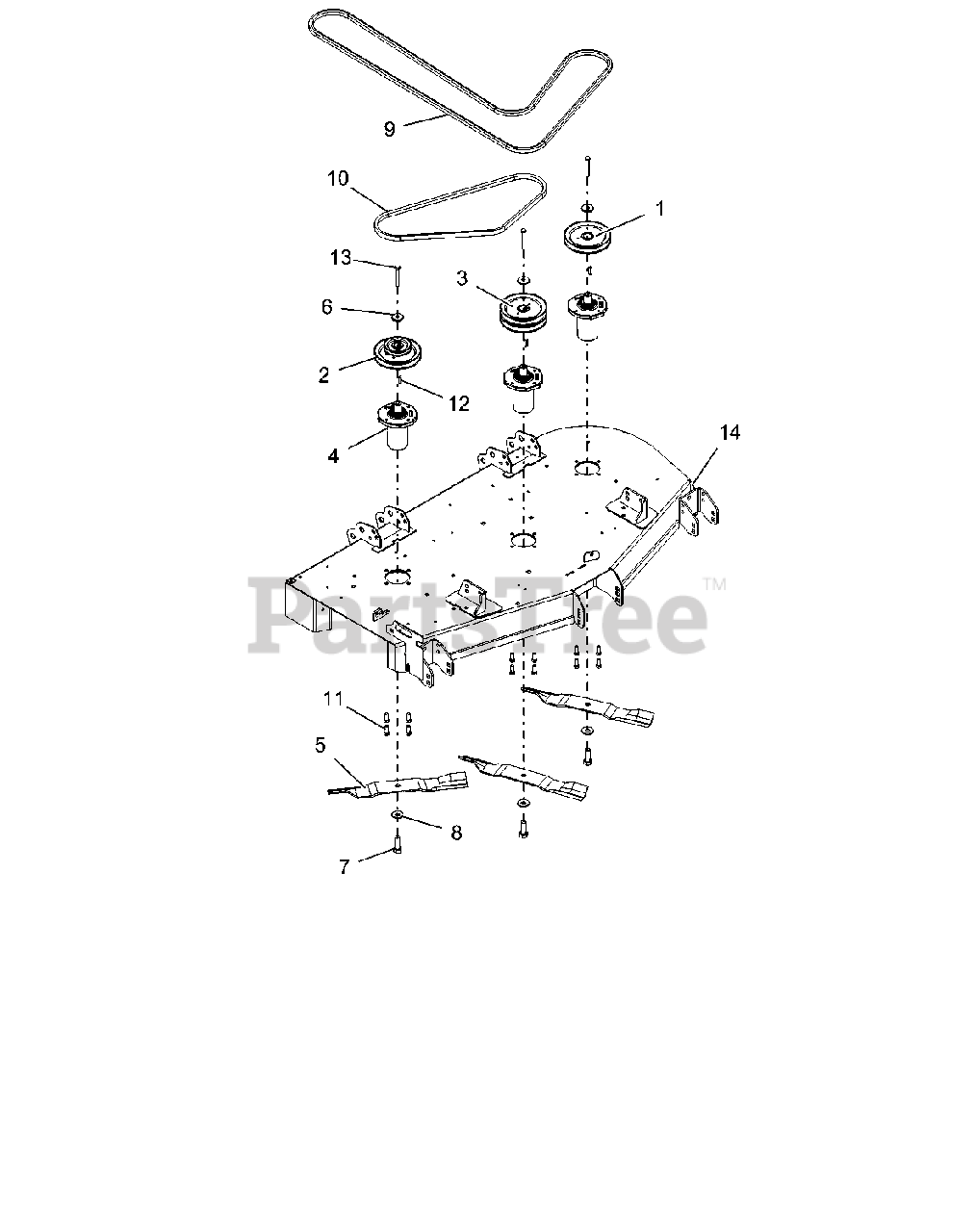

Deck Belts Spindles And Blades - 52 Inch Parts Diagram

  • Title

1

Ariens 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

$78.99

$

In Stock, only 3 left!

0

2

Ariens 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

$78.99

$

In Stock, only 3 left!

0

3

Ariens 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

$76.99

$

In Stock, Qty 5

0

4

Ariens 59215400

ASM, MAINT FREE SPINDLE
(Superseded to 59225700)

$239.99

$

In Stock, Qty 7

0

5

Ariens 03253800

BLADE, 18"

$27.99

$

In Stock, Qty 20+

0

6

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, only 3 left!

0

7

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

9

Ariens 07200026

HEX BELT, BB-WRAPPED

$131.99

$

In Stock, Qty 16

0

10

Ariens 07200036

V-BELT, B-COGGED

$60.99

$

In Stock, Qty 11

0

11

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 19

0

13

Ariens 05963000

BLT-HEX .38-16X2.75 GR8 YWZC
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 59102800

KIT,DECK - 52" W/SAFETY DECALS

$1099.99

$

Usually ships in 4-12 days

0
