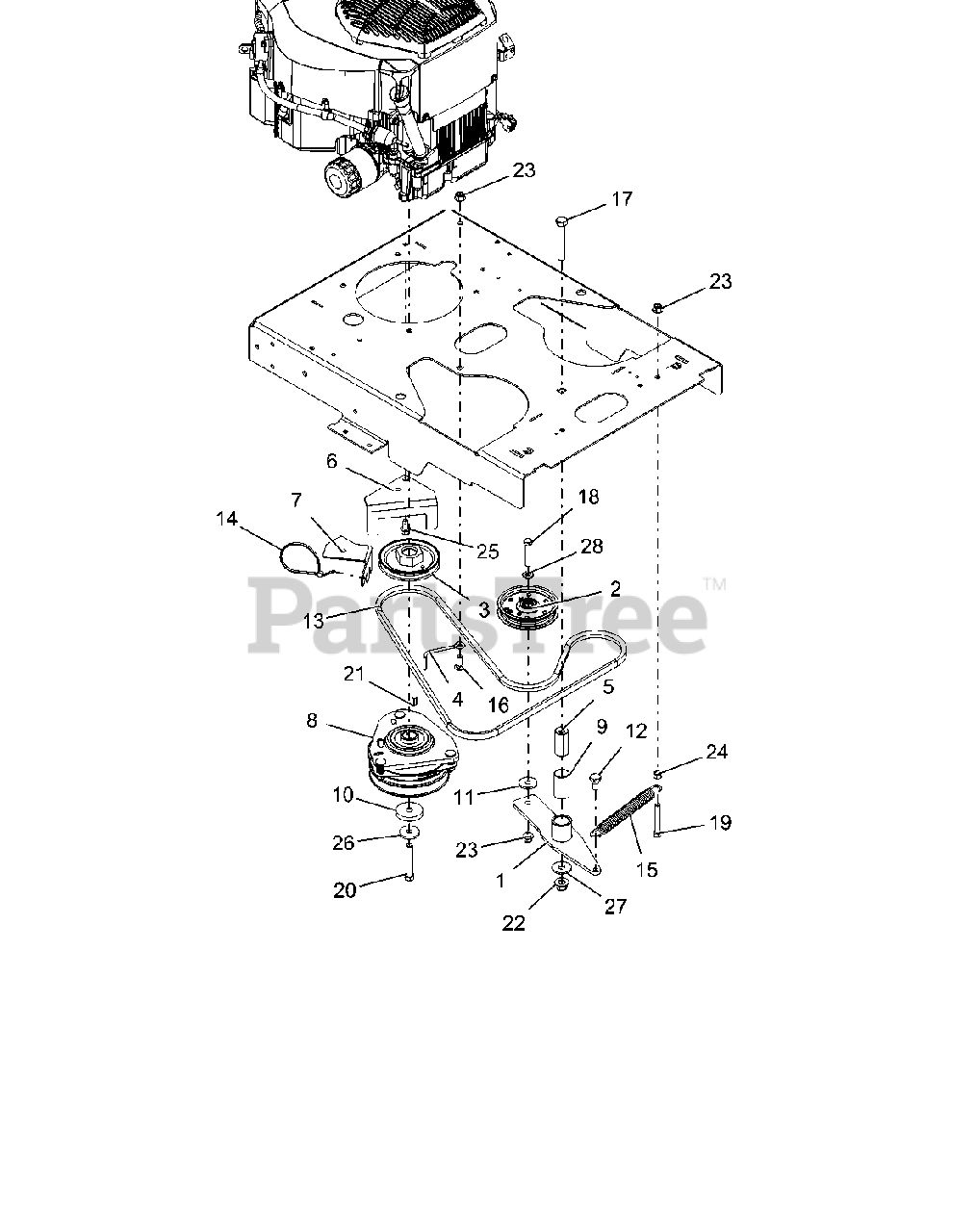

991086 - Ariens Max-Zoom 52" Zero-Turn Mower, 24hp Kawasaki (SN: 060000 & Above) Clutch And Drive Parts Diagram

Max-Zoom 52" Zero-Turn Mower, 24hp Kawasaki

Clutch And Drive Parts Diagram

  • Title

1

Ariens 03792951

HYDRO DRIVE IDLER ARM WMT -BLK

$77.99

$

Usually ships in 4-12 days

0

2

Ariens 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, Qty 18

0

3

Ariens 07337167

PULLEY-4.50OD X 1.002 ENGINE

$85.99

$

In Stock, only 1 left!

0

4

Ariens 00391900

BELT FINGER

$20.99

$

In Stock, Qty 11

0

5

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 03766851

ANCHOR - OGURA CLUTCH - HD

$37.99

$

In Stock, only 1 left!

0

7

Ariens 03772951

GUARD, HD CLUTCH WIRE

$31.99

$

Usually ships in 4-12 days

0

8

Ariens 04387900

CLUTCH, OGURA GT1A

$323.99

$

Usually ships in 4-12 days

0

9

Ariens 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 13

0

10

Ariens 05501240

SPACER, .474/.459X2.00X.350

$14.99

$

In Stock, only 3 left!

0

11

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

12

Ariens 07000034

BLT,SHLDR EP .38-16X.30 HEX YZ

$3.99

$

In Stock, Qty 8

0

13

Ariens 07211500

V-BELT, 4L-WRAPPED

$48.99

$

In Stock, Qty 16

0

14

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

15

Ariens 08300626

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 17

0

16

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

19

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 05901534

BLT-HEX .44-20X2.75 G8YZNYTORQ
(Superseded to 05902013)

$4.49

$

In Stock, only 1 left!

0

21

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 17

0

22

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

25

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

27

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

28

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
