991088 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 020000 - 040999) Frame Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

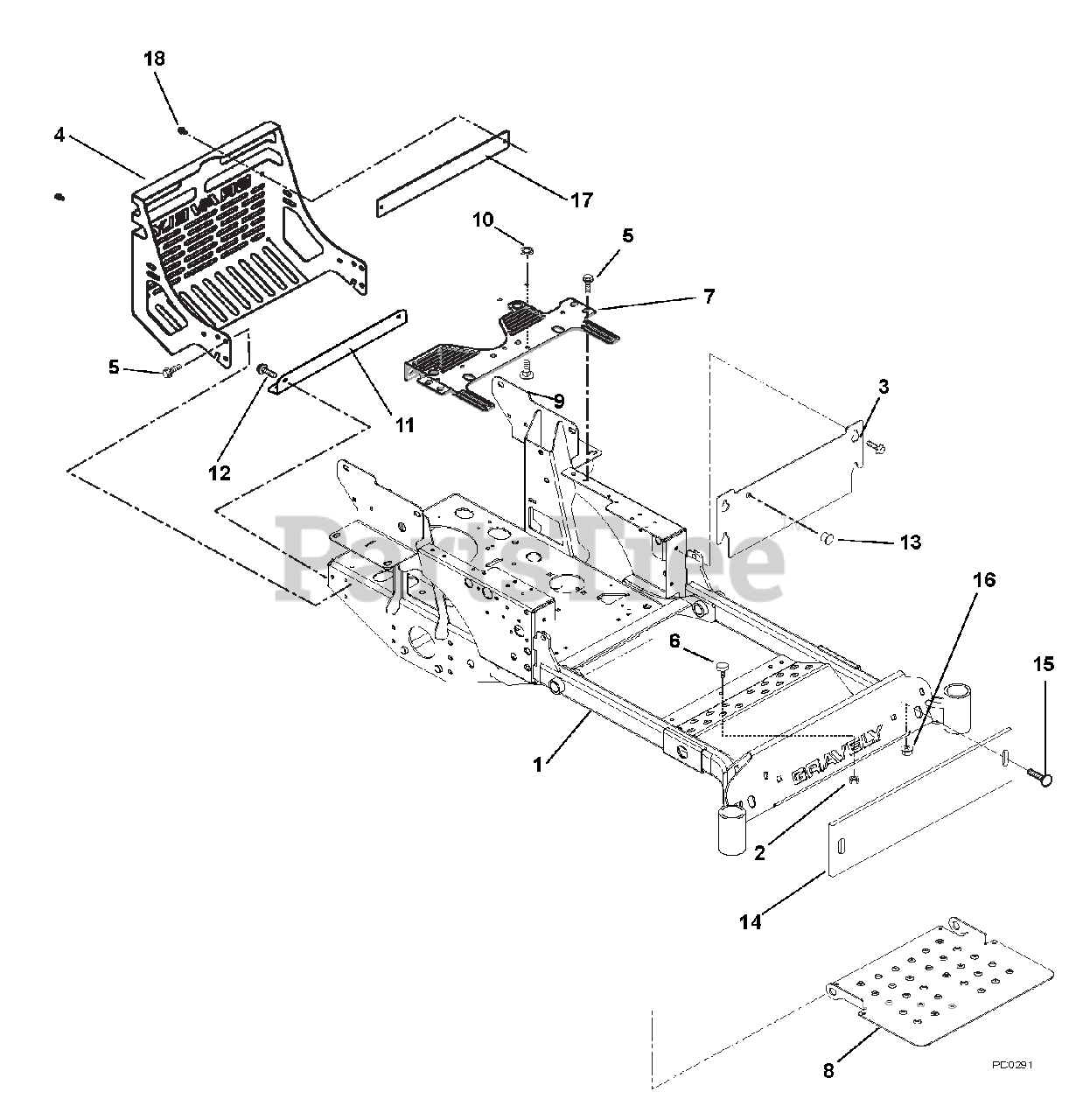

Frame Parts Diagram

  • Title

1

Gravely 00346553

FRAME, 34Z

$

$

Not available

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 09297253

PANEL, ACCESS

$59.99

$

Usually ships in 4-12 days

0

4

Gravely 04369353

WMT-COMPACT-PRO 34" BUMPER

$236.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

7

Gravely 04114551

SEAT PLATE,34Z - BLK

$91.99

$

Usually ships in 4-12 days

0

8

Gravely 00298951

PANEL, INSPECTION - BLACK

$76.99

$

Usually ships in 4-12 days

0

9

Gravely 06220800

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, only 4 left!

0

11

Gravely 04672751

BRKT, HEAT SHIELD - MUFFLER

$24.99

$

Usually ships in 4-12 days

0

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 01554900

HOLE PLUG, PLASTIC .56 HOLE

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 01922851

COUNTERWEIGHT, CZ FRONT-BLACK

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 06225500

BLT-RDHDSQNK .50-13X2.50 G5YZ

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 03995751

BUMPER PLATE 2.00 X 16.50 -BLK

$16.99

$

Usually ships in 4-12 days

0

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 04161651

GUARD,LH HINGE OPENING (BLK)

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 04161551

GUARD,RH HINGE OPENING (BLK)

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0
