991088 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki (SN: 041000 - 049999) Hydro-Gear Wheel Motor Parts Diagram

Compact-Pro 34" Zero-Turn Mower, 17hp Kawasaki

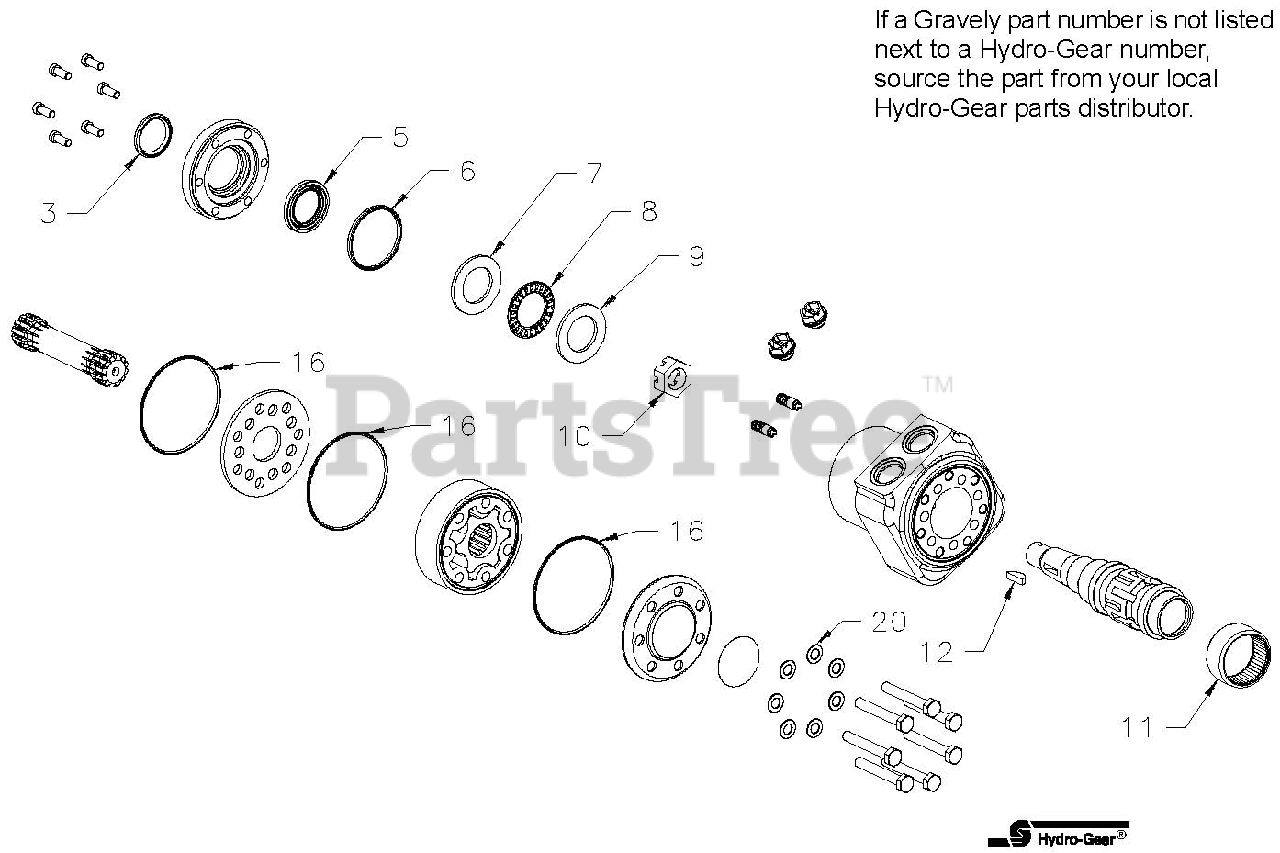

Hydro-Gear Wheel Motor Parts Diagram

  • Title

10

Gravely N/A

Nut, Castle .75-20 Slotted Hex

Note: Hydro-Gear p/n 51869

$

$

Currently unavailable

12

Gravely N/A

Key, Woodruff .1875 x .75

Note: Hydro-Gear p/n 51871

$

$

Currently unavailable

NS

Gravely N/A

Seal Kit (Serial No. 5146M10001 and below)

Note: Hydro-Gear p/n 70626-1 (Includes 3, 5, 6, 16 and 20)

$

$

Currently unavailable

NS

Gravely N/A

Seal Kit (Serial No. 5146M10001 and up)

Note: Hydro-Gear p/n 70626-2 (Includes 3, 5, 6, 16 and 20)

$

$

Currently unavailable

NS

Gravely N/A

Kit, Axial Needle Bearing HGM P-Series

Note: Hydro-Gear p/n 71501 (Includes 7, 8, 9 and 11)

$

$

Currently unavailable
