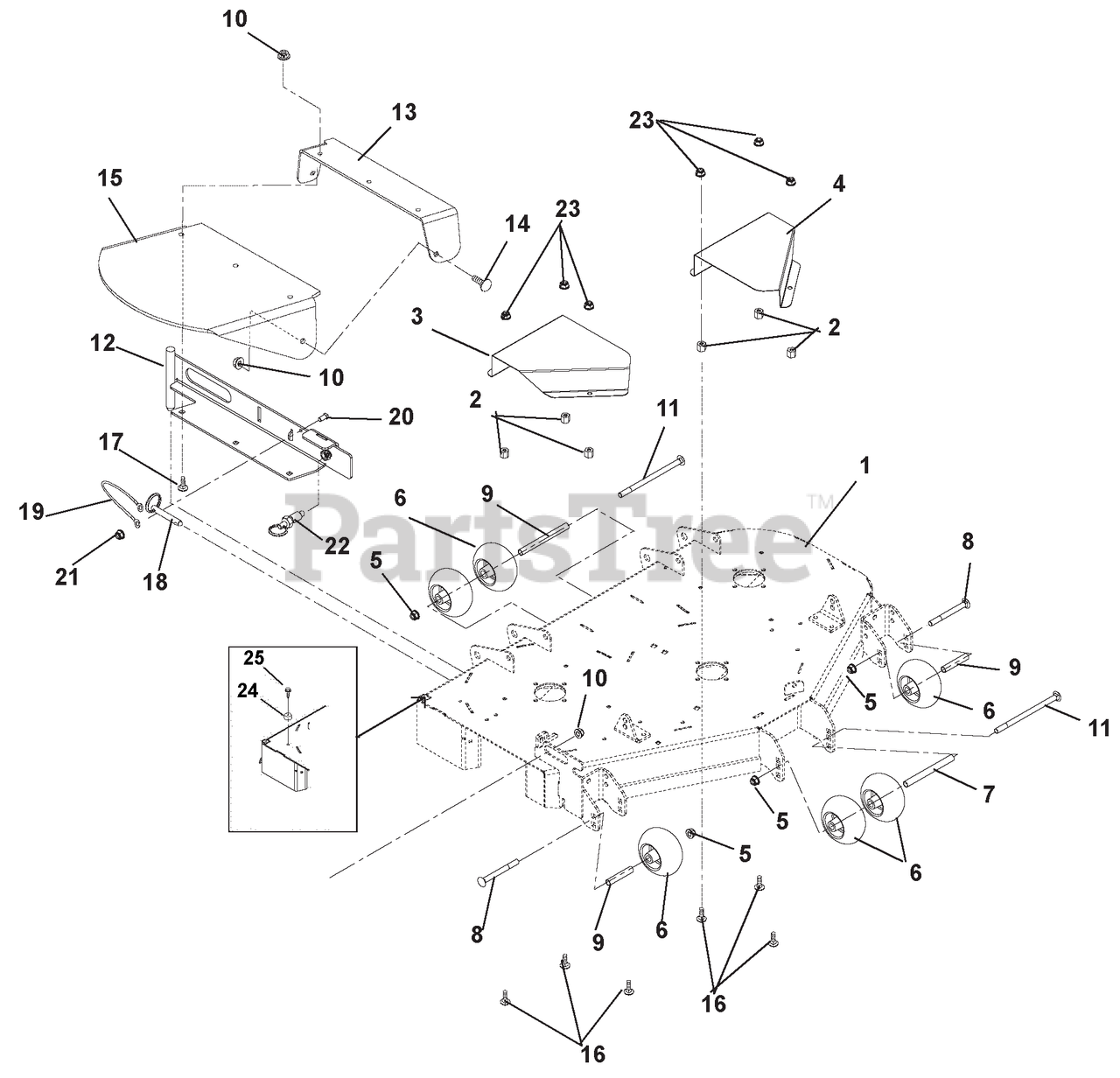

991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 020000 - 040999) Deck, Discharge Chute, Anti-Scalp Rollers, And Belt Covers Parts Diagram

Compact-Pro 44" Zero-Turn Mower

Deck, Discharge Chute, Anti-Scalp Rollers, And Belt Covers Parts Diagram

  • Title

1

Gravely 59102600

KIT,DECK - 44" W/SAFETY DECALS

$969.99

$

Usually ships in 4-12 days

0

2

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 04051251

GUARD-44-52 RH SPINDLE SHEAVE

$62.99

$

Usually ships in 4-12 days

0

4

Gravely 03977151

GUARD,LH DECK BELT,44-52

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

$13.99

$

In Stock, Qty 20+

0

7

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

8

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

9

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

$115.99

$

In Stock, only 4 left!

0

13

Gravely 04557853

SUPPORT, RUBBER DISCH CHUTE

$79.99

$

In Stock, only 1 left!

0

14

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 04551600

CHUTE, RUBBER DISCHARGE

$70.99

$

In Stock, Qty 8

0

16

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

17

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 18

0

19

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

$6.49

$

In Stock, only 2 left!

0

20

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

21

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

22

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

23

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

25

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 12

0
