991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 020000 - 040999) Frame Parts Diagram

Compact-Pro 44" Zero-Turn Mower

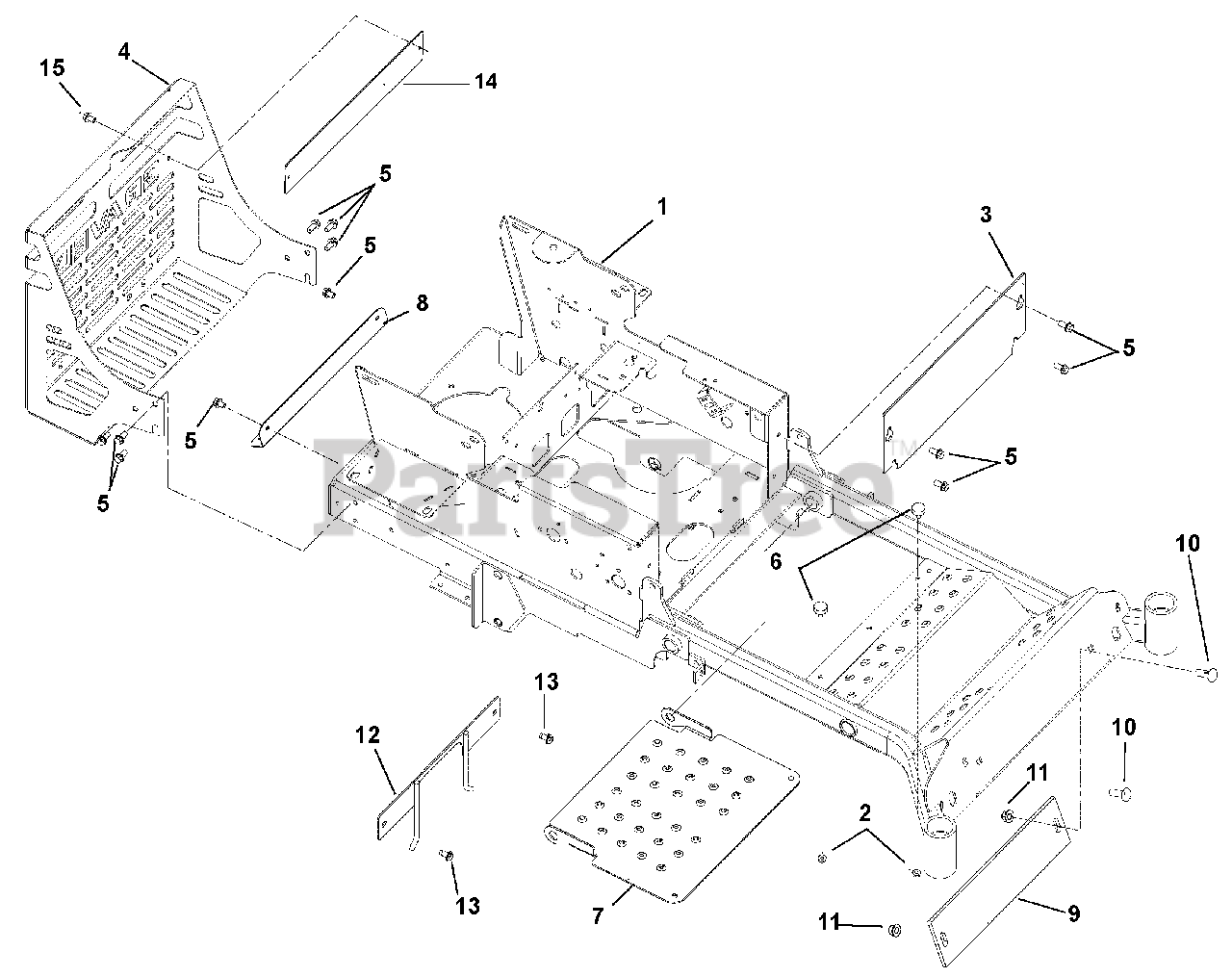

Frame Parts Diagram

  • Title

1

Gravely 03782353

WLDMT, FRAME

$

$

Not available

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 02989053

KICK PLATE - RED

$41.99

$

Usually ships in 4-12 days

0

4

Gravely 03996053

BUMPER, COMPACT-PRO 2044

$218.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

7

Gravely 00298951

PANEL, INSPECTION - BLACK

$76.99

$

Usually ships in 4-12 days

0

8

Gravely 04672751

BRKT, HEAT SHIELD - MUFFLER

$24.99

$

Usually ships in 4-12 days

0

9

Gravely 01922851

COUNTERWEIGHT, CZ FRONT-BLACK

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 06224800

BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

13

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 03948251

BUMPER BACKER PLATE - BLACK

$19.99

$

Usually ships in 4-12 days

0

15

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0
