991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 020000 - 040999) Hydro-Gear Hydrostatic Pump (Right Side) Parts Diagram

Compact-Pro 44" Zero-Turn Mower

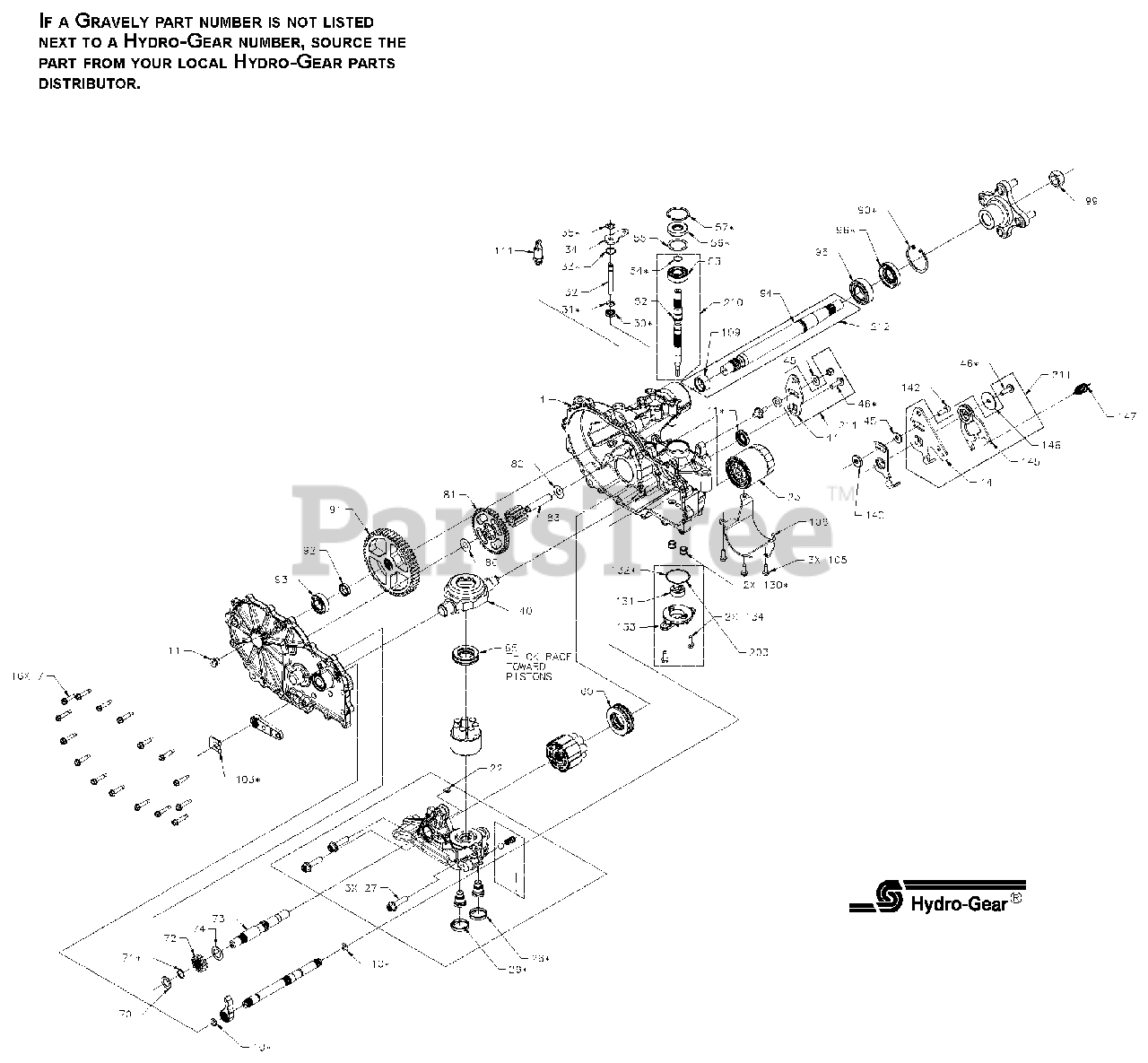

Hydro-Gear Hydrostatic Pump (Right Side) Parts Diagram

  • Title

1

Kit, Main Housing RH

Note: Hydro-Gear p/n 71413

$

$

Not available

7

Gravely 21543819

HFHCS 1/4-20 X 1.25"

Note: Hydro-Gear p/n 51190

$

$

Not available

10

O-Ring, .111 .103 x .424

Note: Hydro-Gear p/n 51804

$

$

Not available

11

Gravely 08613700

PLUG, STEEL (WITH SEAL)

Note: Hydro-Gear p/n 9005110-5600

$14.99

$

Usually ships in 4-12 days

0

NS

Gravely 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$108.99

$

Usually ships in 4-12 days

0

NS

15W50 Synthetic Motor Oil (Gravely #00057100) or Equivalent

Note: Hydro-Gear p/n N/A

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear p/n 51448

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 21545100

OIL FILTER, TRANSMISSION

Note: Hydro-Gear p/n 52114

$44.99

$

Usually ships in 4-12 days

0

26

Gravely 21544047

SEAL, PLUG 1.375 X .250

Note: Hydro-Gear p/n 52162

$8.49

$

Usually ships in 4-12 days

0

27

HFHCS, 3/8-16 x 1.5

Note: Hydro-Gear p/n 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375X.75X.25

Note: Hydro-Gear p/n 51626

$10.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING. RETAINING

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 12

0

32

Rod, Bypass

Note: Hydro-Gear p/n 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear p/n 51910

$13.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

Note: Hydro-Gear p/n 51630

$4.49

$

Usually ships in 4-12 days

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear p/n 51048

$77.99

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

Note: Hydro-Gear p/n 44130

$5.49

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 X 1.00

Note: Hydro-Gear p/n 51812

$3.49

$

Usually ships in 4-12 days

0

52

Shaft, Input

Note: Hydro-Gear p/n 52155

$

$

Not available

53

Gravely 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$12.99

$

Usually ships in 4-12 days

0

54

Gravely 21543960

RING, RET WIRE .561 ID

Note: Hydro-Gear p/n 2000022

$3.49

$

In Stock, only 2 left!

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

Note: Hydro-Gear p/n 50951

$3.49

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$8.49

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$4.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

Note: Hydro-Gear p/n 51462

$28.99

$

Usually ships in 4-12 days

0

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$18.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

Note: Hydro-Gear p/n 44371

$4.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

Note: Hydro-Gear p/n 44145

$3.49

$

Usually ships in 4-12 days

0

72

Gear, 13T, Steel

Note: Hydro-Gear p/n 52342

$

$

Not available

73

Shaft, Motor

Note: Hydro-Gear p/n 52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

Note: Hydro-Gear p/n 51083

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

Note: Hydro-Gear p/n 50132

$

$

Not available

81

Gear, 46T

Note: Hydro-Gear p/n 52343

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

RING, RETAINING

Note: Hydro-Gear p/n 50859

$4.49

$

Usually ships in 4-12 days

0

91

Gear, 54T

Note: Hydro-Gear p/n 52108

$

$

Not available

92

Spacer, .75 x 1.0 x .257

Note: Hydro-Gear p/n 52161

$

$

Not available

93

Bearing, Ball .75 x 40 x 12

Note: Hydro-Gear p/n 44121

$

$

Not available

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

Note: Hydro-Gear p/n 50771

$16.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

Note: Hydro-Gear p/n 50772

$8.49

$

In Stock, Qty 6

0

99

Gravely 08621100

NUT, HEX, LOCK 3/4-16

Note: Hydro-Gear p/n 50863

$8.49

$

Usually ships in 4-12 days

0

103

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear p/n 52027

$13.99

$

Usually ships in 4-12 days

0

105

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$3.49

$

Usually ships in 4-12 days

0

106

Guard, Filter, RH

Note: Hydro-Gear p/n 52257

$

$

Not available

111

Gravely 21544058

KIT, FITTING 1/2 BEADED 9/16

Note: Hydro-Gear p/n 71393

$34.99

$

Usually ships in 4-12 days

0

130

Tube, Connecting

Note: Hydro-Gear p/n 52157

$

$

Not available

131

Gravely 08611500

GEROTOR

Note: Hydro-Gear p/n 50273

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING HYDROGEAR 52250

Note: Hydro-Gear p/n 52250

$3.49

$

Usually ships in 4-12 days

0

133

Cover, Charge Pump

Note: Hydro-Gear p/n 52688

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$3.49

$

Usually ships in 4-12 days

0

140

Gravely 21543870

SPACER

Note: Hydro-Gear p/n 52527

$

$

Not available

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

WASHER

Note: Hydro-Gear p/n 51950

$5.99

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, HYDROGEAR P/N 51833

Note: Hydro-Gear p/n 51833

$15.99

$

Usually ships in 4-12 days

0

200

Gravely 21543999

KIT, SEAL

Note: Hydro-Gear p/n 71410

$56.99

$

Usually ships in 4-12 days

0

203

Kit, Charge Pump (includes items 131, 132, 133 & 134)

Note: Hydro-Gear p/n 71411

$

$

Not available

210

Gravely 21544010

INPUT SHAFT 2800 HYDGEAR 71442
(Superseded to 21544039)

Note: Hydro-Gear p/n 71442

$

$

Not available

211

Gravely 21544002

RTN KIT HYDROGEAR P/N 71597

Note: Hydro-Gear p/n 71597

$37.99

$

Usually ships in 4-12 days

0

212

Kit, Axle Shaft (includes items 94 & 109)

Note: Hydro-Gear p/n 71569

$

$

Not available
