991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 041000 - 049999) Engine And Clutch Parts Diagram

Compact-Pro 44" Zero-Turn Mower

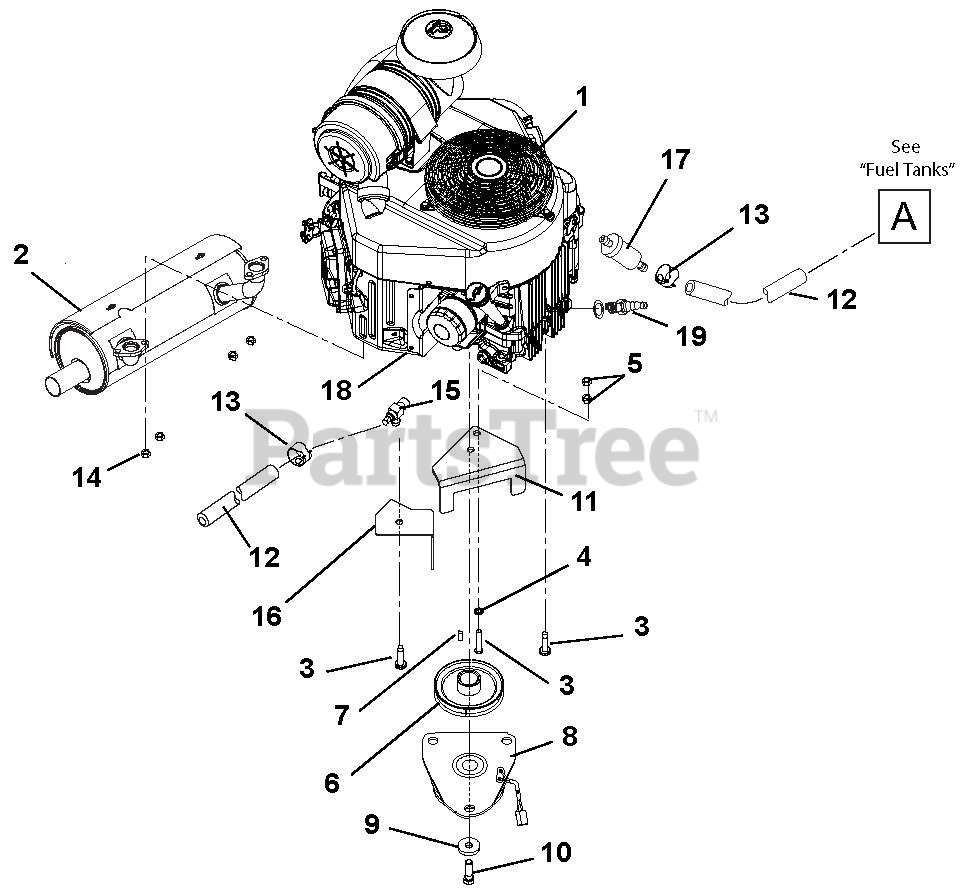

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200720

Engine, Kawasaki FX600

$

$

Not available

2

Gravely 03971600

Muffler, Kawasaki

$180.99

$

In Stock, only 1 left!

0

3

Gravely 05901507

Bolt, Hex .38-16 x 1.25 FTH Grade 5 EP80

$2.49

$

In Stock, Qty 13

0

4

Gravely 06307200

Washer, Locking-EXT.326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07331667

Pulley, 4.50 OD x 1.127 Engine
(Superseded to 07331600)

$

$

Not available

7

Gravely 06602700

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035

$3.99

$

In Stock, Qty 16

0

8

Gravely 03789900

Clutch, Ogura GT1A

$329.99

$

In Stock, Qty 5

0

9

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

10

Gravely 05901426

Bolt, Hex .44-20 x 2.00 Grade 5 EP80

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 03766851

Anchor, Ogura Clutch

$37.99

$

In Stock, only 1 left!

0

12

Gravely 03278100

Hose, Gas Line Low-PERM

$0.99

$

In Stock, Qty 20+

0

13

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 6

0

14

Gravely 06500018

Nut, Top Lock M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

15

Gravely 00429000

Drain, .50 Oil

$39.99

$

In Stock, only 1 left!

0

16

Gravely 03772951

Guard, Clutch Wire

$31.99

$

Usually ships in 4-12 days

0

17

Gravely 21438400

Fuel Filter, Kawasaki

$

$

Not available

18

Gravely 21535800

Oil Filter, Kawasaki
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

19

Gravely 21533600

Spark Plug, Kawasaki

$4.99

$

In Stock, Qty 20+

0

20

Gravely 21538200

Air Filter, Kawasaki

Note: Not Shown

$21.99

$

In Stock, Qty 18

0

21

Gravely 21538300

Pre-Filter

Note: Not Shown

$5.99

$

Usually ships in 4-12 days

0
