991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 041000 - 049999) Frame Parts Diagram

Compact-Pro 44" Zero-Turn Mower

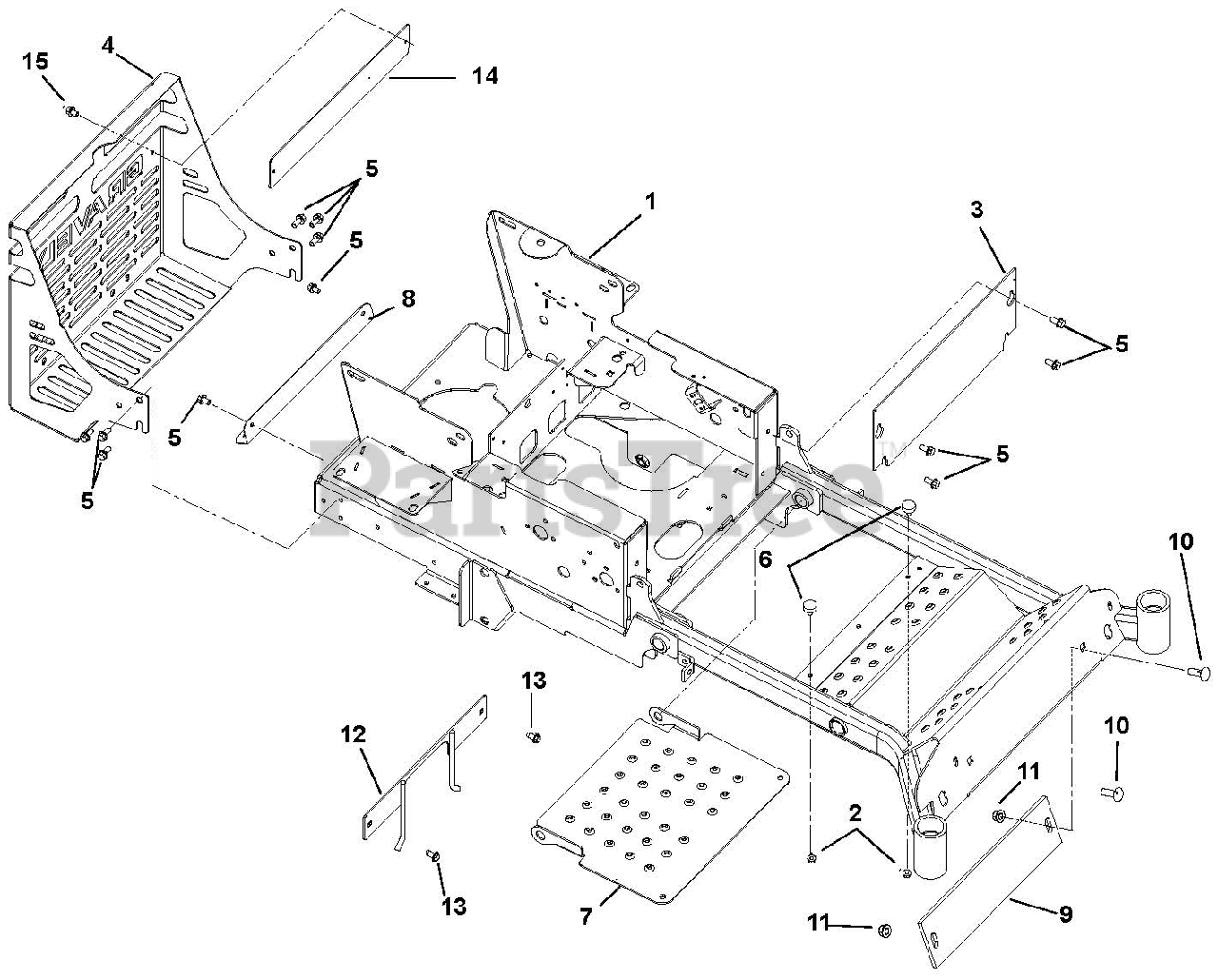

Frame Parts Diagram

  • Title

1

Gravely 03782353

Weldment, 44"HD Frame

$

$

Not available

2

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 02989053

Kick Plate

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 03996053

Bumper,

$164.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

7

Gravely 00298951

Panel, Inspection

$71.99

$

Usually ships in 4-12 days

0

8

Gravely 04672751

Heat Shield

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 01922851

Counterweight CZ Front

$33.99

$

Usually ships in 4-12 days

0

10

Gravely 06224800

Bolt, Round Head Square Neck .50-13 x 1.25 Grade 5
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 04053651

Weldment, PTO Belt Finger

$28.99

$

Usually ships in 4-12 days

0

13

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03948251

Bumper Backing Plate

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
