991089 (Compact-Pro 44) - Gravely Compact-Pro 44" Zero-Turn Mower (SN: 041000 - 049999) Hydro-Gear Hydrostatic Pump - Left Side Parts Diagram

Compact-Pro 44" Zero-Turn Mower

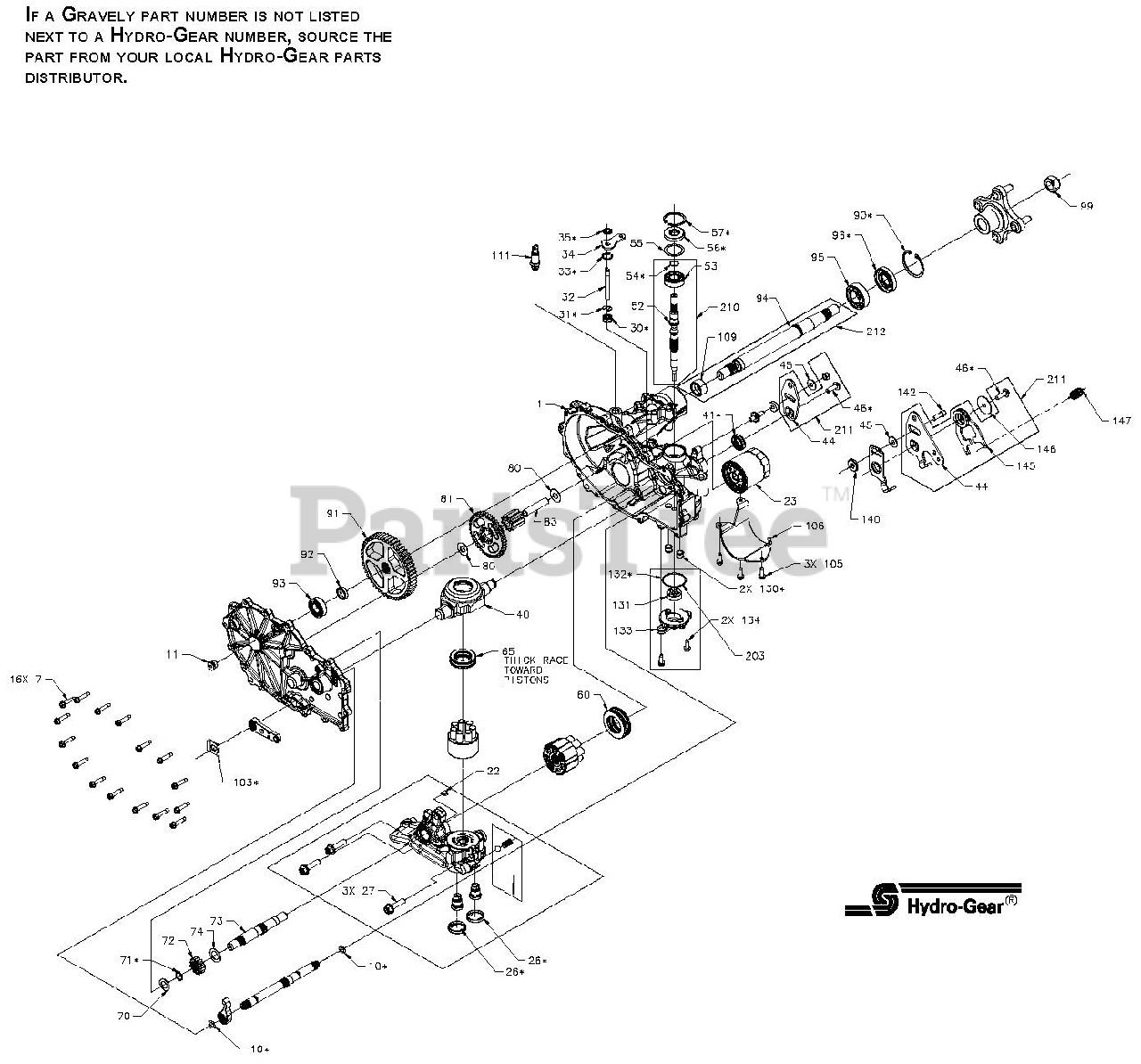

Hydro-Gear Hydrostatic Pump - Left Side Parts Diagram

  • Title

1

Gravely N/A

Kit, Main Housing LH

Note: Hydro-Gear p/n 71421

$

$

Currently unavailable

7

Gravely 21543819

HFHCS 1/4-20 x 1.25

Note: Hydro-Gear p/n 51190

$

$

Not available

10

Gravely N/A

O-Ring, 111 .103 x .424

Note: Hydro-Gear p/n 51804

$

$

Currently unavailable

11

Gravely 08613700

Plug, 9/16-18

Note: Hydro-Gear p/n 9005110-5600 (Metal)

$14.99

$

Usually ships in 4-12 days

0

NS

Gravely 21543771

Sealant

Note: Hydro-Gear p/n 50928

$171.99

$

In Stock, only 1 left!

0

NS

Gravely N/A

15W50 Synthetic Motor Oil

Note: Hydro-Gear p/n N/A (Gravely #00057100) or Equivalent

$

$

Currently unavailable

22

Gravely 21543839

Plate, Bypass

Note: Hydro-Gear p/n 51448

$1.99

$

Usually ships in 4-12 days

0

23

Gravely N/A

Filter, Oil

Note: Hydro-Gear p/n 52114

$

$

Currently unavailable

26

Gravely N/A

Seal, Plug 1.25 x .25

Note: Hydro-Gear p/n 52162

$

$

Currently unavailable

27

Gravely N/A

HFHCS, 3/8-16 x 1.5

Note: Hydro-Gear p/n 52137

$

$

Currently unavailable

30

Gravely 21543845

Seal, Lip .375 x .75 x .25

Note: Hydro-Gear p/n 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

Ring, Retention .375 External

Note: Hydro-Gear p/n 51628

$4.49

$

In Stock, Qty 9

0

32

Gravely N/A

Rod, Bypass

Note: Hydro-Gear p/n 52136

$

$

Currently unavailable

33

Gravely 21543846

Ring, Retention .750 Internal

Note: Hydro-Gear p/n 51627

$

$

Not available

34

Gravely N/A

Arm, Bypass

Note: Hydro-Gear p/n 52370

$

$

Currently unavailable

35

Gravely 21543848

Ring, Retention .375 Ext

Note: Hydro-Gear p/n 51630

$3.99

$

In Stock, only 2 left!

0

40

Gravely 21543783

Trunnion, Swashplate

Note: Hydro-Gear p/n 51048

$73.99

$

Usually ships in 4-12 days

0

45

Gravely 08611200

Washer, .34 x .88 x .06

Note: Hydro-Gear p/n 44130

$4.49

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 x 1.00

Note: Hydro-Gear p/n 51812

$2.99

$

Usually ships in 4-12 days

0

52

Gravely N/A

Shaft, Input

Note: Hydro-Gear p/n 52155

$

$

Currently unavailable

53

Gravely 21543738

Bearing, Ball 17 x 40 x 12 Open 6203

Note: Hydro-Gear p/n 50315

$21.99

$

Usually ships in 4-12 days

0

54

Gravely N/A

Ring, Ret Wire .561 ID

Note: Hydro-Gear p/n 2000022

$

$

Currently unavailable

55

Gravely 21543773

Washer, 1.23 x 1.56 x .04

Note: Hydro-Gear p/n 50951

$6.49

$

In Stock, only 2 left!

0

56

Gravely 21543816

Seal, Lip 17 x 40 x 7

Note: Hydro-Gear p/n 51161

$15.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

Ring, Ret 1.59 Int

Note: Hydro-Gear p/n 50329

$7.49

$

Usually ships in 4-12 days

0

60

Gravely N/A

Bearing, Thrust

Note: Hydro-Gear p/n 51462

$

$

Currently unavailable

65

Gravely 08609100

Bearing, Thrust Ball 30 x 52 x 13

Note: Hydro-Gear p/n 50551

$19.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

Washer, .63 x 1.0 x .05

Note: Hydro-Gear p/n 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

Ring, Retaining .625

Note: Hydro-Gear p/n 44145

$1.99

$

Usually ships in 4-12 days

0

72

Gravely N/A

Gear, 13T, Steel

Note: Hydro-Gear p/n 52342

$

$

Currently unavailable

73

Gravely N/A

Shaft, Motor

Note: Hydro-Gear p/n 52150

$

$

Currently unavailable

74

Gravely 21543788

Washer, .72 x 1.16 x .04

Note: Hydro-Gear p/n 51083

$

$

Not available

80

Gravely 21543724

Washer, .5 x 1.0 x .03

Note: Hydro-Gear p/n 50132

$

$

Not available

81

Gravely N/A

Gear, 46T

Note: Hydro-Gear p/n 52343

$

$

Currently unavailable

83

Gravely 21543793

Jack Shaft

Note: Hydro-Gear p/n 51083

$

$

Not available

90

Gravely 08616500

Ring, Ret 2.06 Int

Note: Hydro-Gear p/n 50859

$9.99

$

Usually ships in 4-12 days

0

91

Gravely N/A

Gear, 54T

Note: Hydro-Gear p/n 52108

$

$

Currently unavailable

92

Gravely N/A

Spacer, .75 x 1.0 x .257

Note: Hydro-Gear p/n 52161

$

$

Currently unavailable

93

Gravely N/A

Bearing, Ball .75 x 40 x 12

Note: Hydro-Gear p/n 44121

$

$

Currently unavailable

95

Gravely 08614000

Bearing, Ball 1.0 x 52 x 15 Open 6205M

Note: Hydro-Gear p/n 50771

$25.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

Seal, Lip 25 x 52 x 10 TC

Note: Hydro-Gear p/n 50772 (Gray)

$18.99

$

Usually ships in 4-12 days

0

99

Gravely 08621100

Nut, Hex Lock 3/4-16

Note: Hydro-Gear p/n 50863

$7.99

$

Usually ships in 4-12 days

0

103

Gravely N/A

Clip, Retaining

Note: Hydro-Gear p/n 52027

$

$

Currently unavailable

105

Gravely 21543759

HFHCS 1/4-20 x .75

Note: Hydro-Gear p/n 50752

$2.49

$

Usually ships in 4-12 days

0

106

Gravely N/A

Guard, Filter, LH

Note: Hydro-Gear p/n 52247

$

$

Currently unavailable

111

Gravely N/A

Fitting, Str 9/16-18 SAE .5 Barb

Note: Hydro-Gear p/n 71393

$

$

Currently unavailable

130

Gravely N/A

Tube, Connecting

Note: Hydro-Gear p/n 52157

$

$

Currently unavailable

131

Gravely 08611500

Assembly, Gerotor Tang x 1.15 x .39

Note: Hydro-Gear p/n 50273

$27.99

$

Usually ships in 4-12 days

0

132

Gravely N/A

O-Ring, -137, 0.103 x 2.05

Note: Hydro-Gear p/n 52250

$

$

Currently unavailable

133

Gravely N/A

Cover, Charge Pump

Note: Hydro-Gear p/n 52688

$

$

Currently unavailable

134

Gravely 21543759

HFHCS 1/4-20 x .75

Note: Hydro-Gear p/n 50752

$2.49

$

Usually ships in 4-12 days

0

140

Gravely N/A

Spacer, .320 x 1.00 x .179

Note: Hydro-Gear p/n 52527

$

$

Currently unavailable

142

Gravely 21543843

SHCS 5/16-24 x 1 Patch

Note: Hydro-Gear p/n 51616

$

$

Not available

146

Gravely 21543871

Washer, .343 x 1.5 x .062

Note: Hydro-Gear p/n 51950

$7.49

$

Usually ships in 4-12 days

0

147

Gravely N/A

Spring, Extension Rtn - 34 lbs

Note: Hydro-Gear p/n 51833

$

$

Currently unavailable

200

Gravely N/A

Kit, Seal

Note: Hydro-Gear p/n 71410 ( * - parts included in this kit)

$

$

Currently unavailable

203

Gravely N/A

Kit, Charge Pump

Note: Hydro-Gear p/n 71411 (includes items 131, 132, 133 & 134)

$

$

Currently unavailable

210

Gravely N/A

Kit, Input Shaft

Note: Hydro-Gear p/n 71442 (includes items 52, 53 and 54)

$

$

Currently unavailable

211

Gravely N/A

Kit, Rtn CCW

Note: Hydro-Gear p/n 71599 (includes items 44, 46 and 145)

$

$

Currently unavailable

212

Gravely N/A

Kit, Axle Shaft

Note: Hydro-Gear p/n 71569 (includes items 94 & 109)

$

$

Currently unavailable
