991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Anti-Scalp Rollers Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

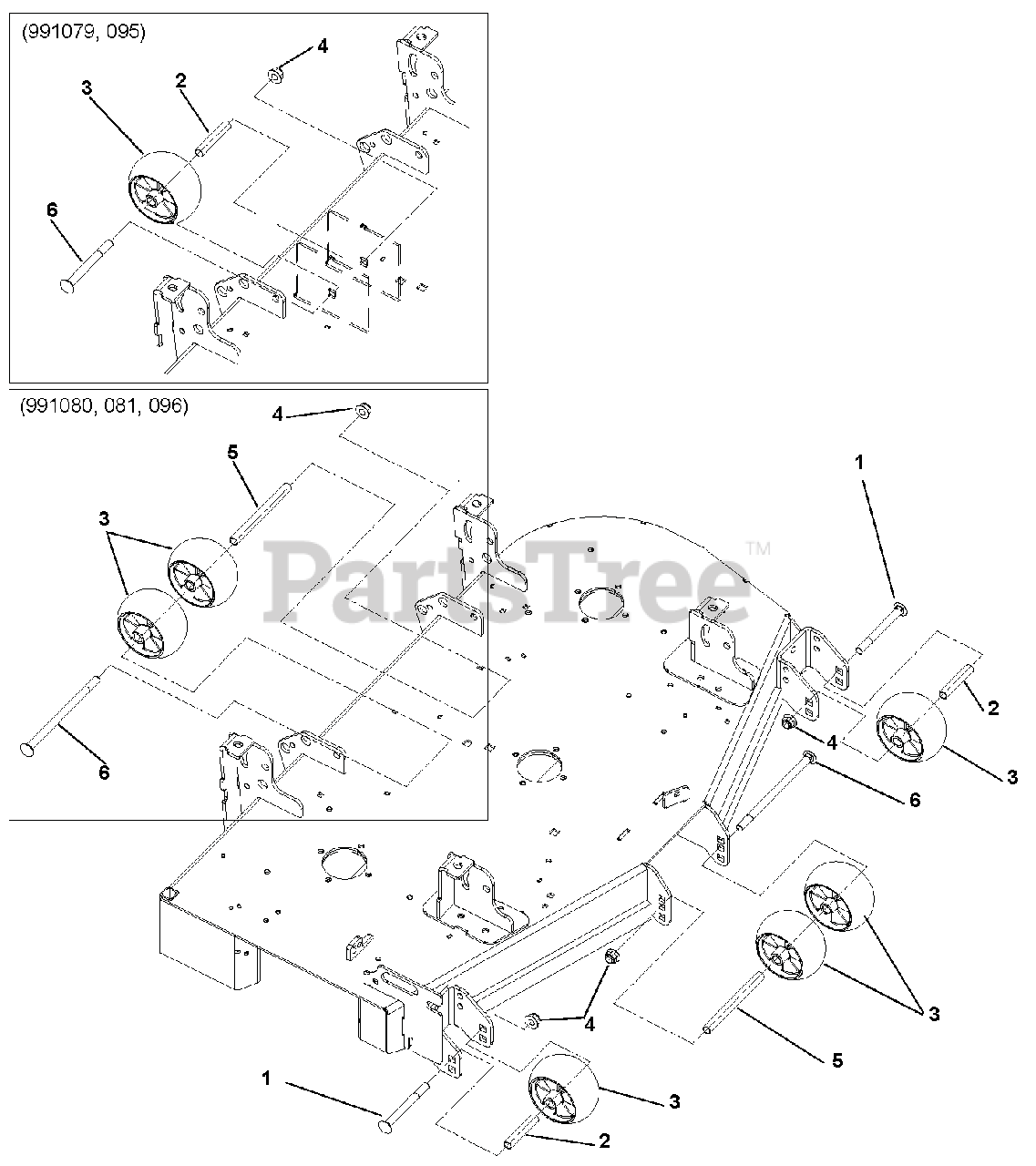

Anti-Scalp Rollers Parts Diagram

  • Title

1

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991079, 095)

$

$

Not available

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

Note: (991080, 081, 096)

$

$

Not available

2

Gravely 00473700

SPACER, .510X.625X3.35

Note: (991079, 095)

$20.99

$

In Stock, Qty 20+

0

Gravely 00473700

SPACER, .510X.625X3.35

Note: (991080, 081, 096)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991079, 095)

$14.99

$

In Stock, Qty 20+

0

Gravely 03905900

ANTI-SCALP WHEEL - 5X3 CTR

Note: (991080, 081, 096)

$14.99

$

In Stock, Qty 20+

0

4

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 00473800

SPACER, .510X.625X6.50

Note: (991079, 095)

$23.99

$

In Stock, Qty 20+

0

Gravely 00473800

SPACER, .510X.625X6.50

Note: (991080, 081, 096)

$23.99

$

In Stock, Qty 20+

0

6

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

Note: (991079, 095)

$9.99

$

In Stock, Qty 20+

0
