991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Deck And Mounting Arms Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

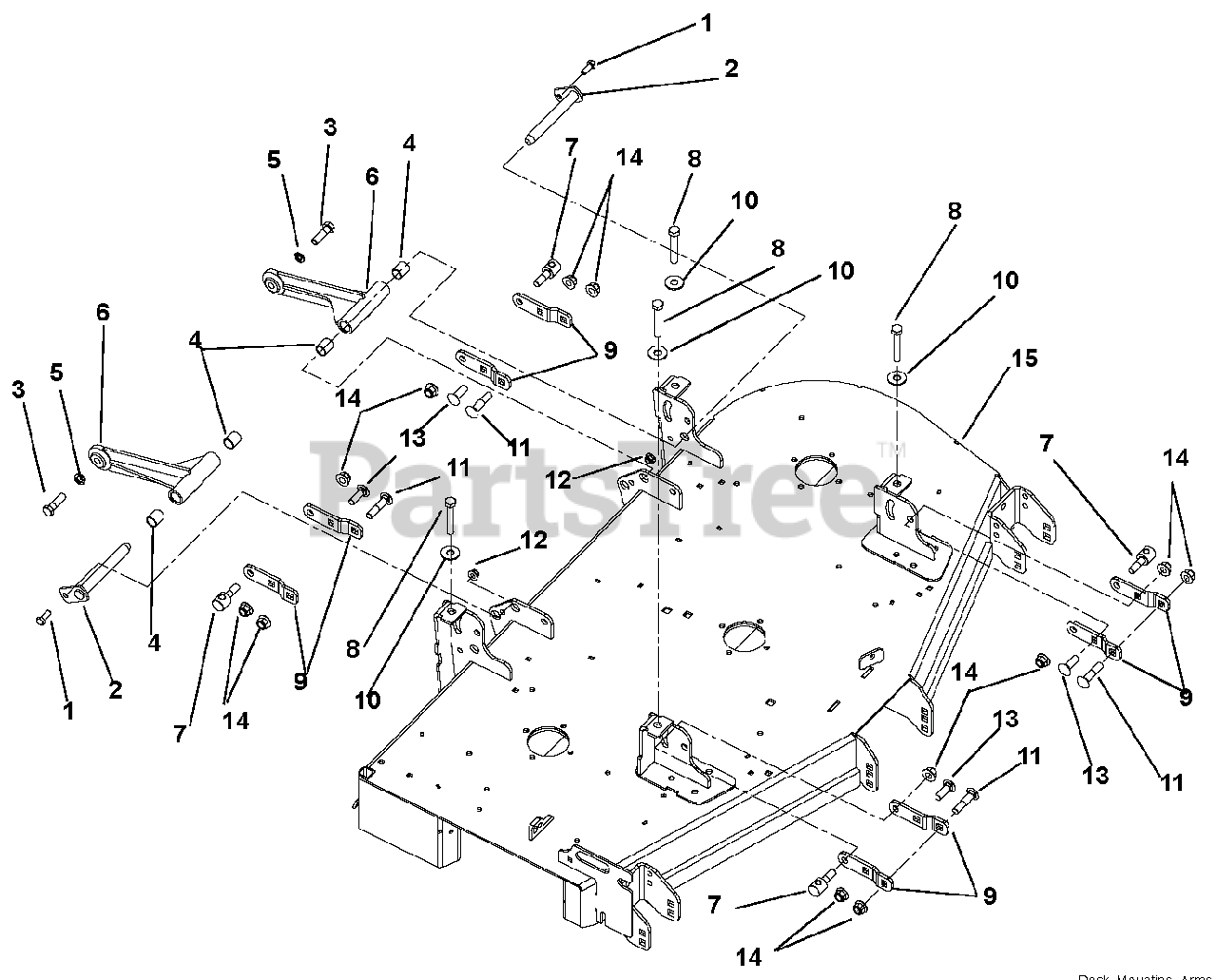

Deck And Mounting Arms Parts Diagram

  • Title

1

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$66.99

$

In Stock, Qty 8

0

3

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$5.49

$

In Stock, Qty 8

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$7.49

$

In Stock, Qty 20+

0

5

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 04243551

DECK PUSHER ARM WMT - BLACK

$182.99

$

Usually ships in 4-12 days

0

7

Gravely 03972000

TRUNNION, .50-13

$53.99

$

In Stock, only 1 left!

0

8

Gravely 05901421

BLT,HEX .50-13X3.00 GR5 FTH YZ
(Superseded to 05901737)

$5.99

$

In Stock, Qty 12

0

9

Gravely 03966200

BRKT, DECK LEVELING

$

$

Not available

10

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$4.99

$

In Stock, Qty 5

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 04242853

48" PT100 SIDE DISCH DECK-RED

Note: (Models 991079, 991095)

$1240.99

$

Usually ships in 4-12 days

0

Gravely 04242953

52" PT100 SIDE DISCH DECK-RED

Note: (Models 991080, 991096)

$1378.99

$

Usually ships in 4-12 days

0

Gravely 04243053

60" PT100 SIDE DISCH DECK-RED

Note: (Model 991081)

$1378.99

$

Usually ships in 4-12 days

0
