991095 (Pro-Turn 148) - Gravely Pro-Turn 48" Zero-Turn Mower, Kohler EFI (SN: 000101 - 019999) Discharge Chute And Belt Covers Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Kohler EFI

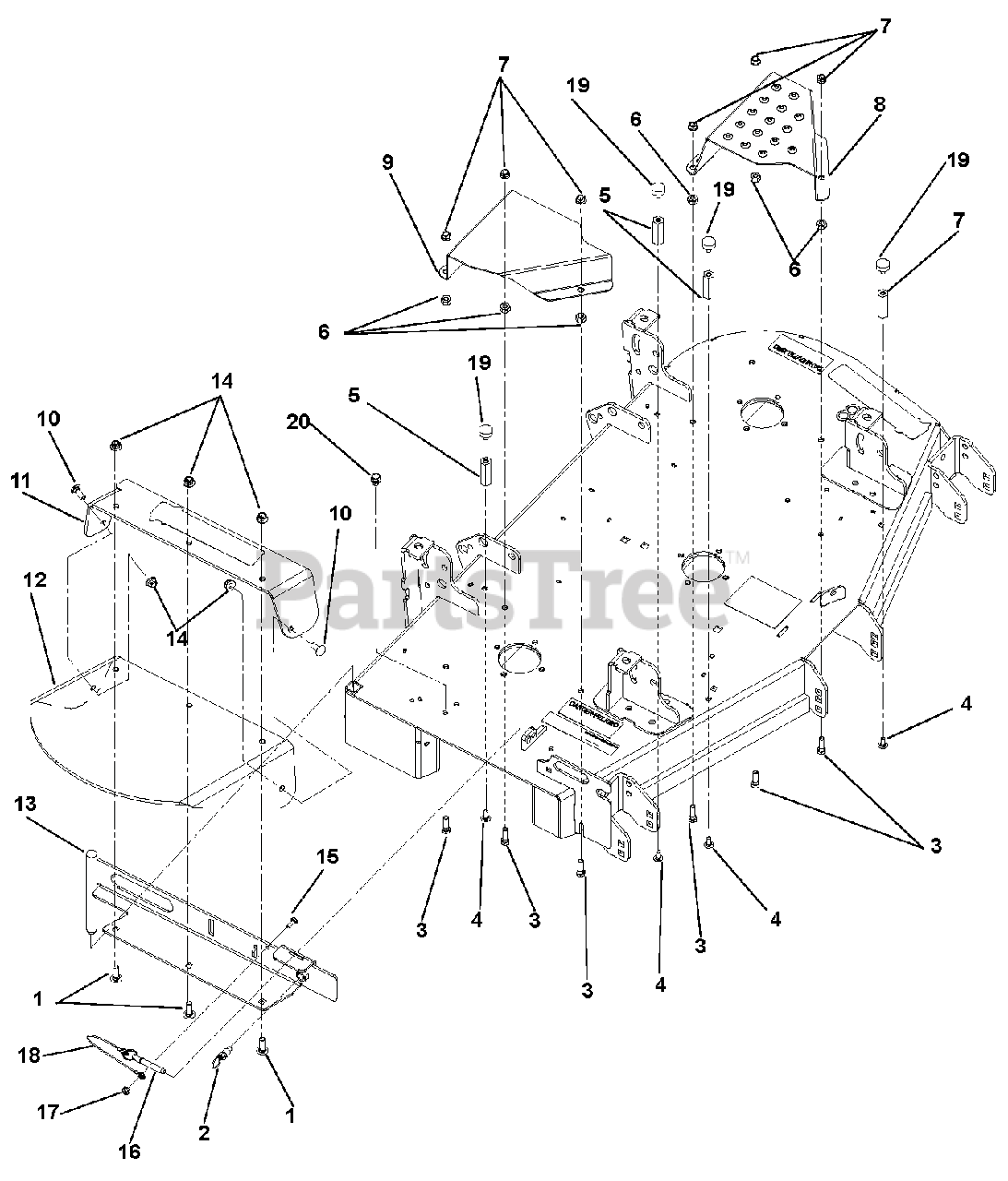

Discharge Chute And Belt Covers Parts Diagram

  • Title

1

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

3

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$5.49

$

In Stock, Qty 20+

0

5

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$30.99

$

In Stock, Qty 17

0

6

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 03977151

GUARD,LH DECK BELT,44-52

Note: (991079, 080, 095, 096)

$96.99

$

Usually ships in 4-12 days

0

Gravely 03977251

GUARD,LH DECK BELT,60

Note: (991081)

$76.99

$

Usually ships in 4-12 days

0

9

Gravely 04051251

GUARD-44-52 RH SPINDLE SHEAVE

Note: (991079, 095)

$64.99

$

Usually ships in 4-12 days

0

Gravely 03982151

GUARD,RH DECK BELT,44-52

Note: (991080, 096)

$52.99

$

Usually ships in 4-12 days

0

Gravely 03982251

GUARD,RH DECK BELT,60-66

Note: (991081)

$64.99

$

Usually ships in 4-12 days

0

10

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$133.99

$

In Stock, only 1 left!

0

12

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$97.99

$

In Stock, only 3 left!

0

13

Gravely 00472453

44"-48" DISCH CHUTE MTG WMT-RD
(Superseded to 04757453)

Note: (991079, 095)

$120.99

$

In Stock, only 4 left!

0

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (991080, 081, 096)

$138.99

$

In Stock, only 1 left!

0

14

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (991079, 095)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

Note: (991079, 095)

$6.99

$

In Stock, Qty 13

0

17

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (991079, 095)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06900321

CABLE, 6.0 LANYARD, NYLON

Note: (991079, 095)

$6.99

$

In Stock, only 2 left!

0

19

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

20

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0
