991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999) Deck & Mounting Arms Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

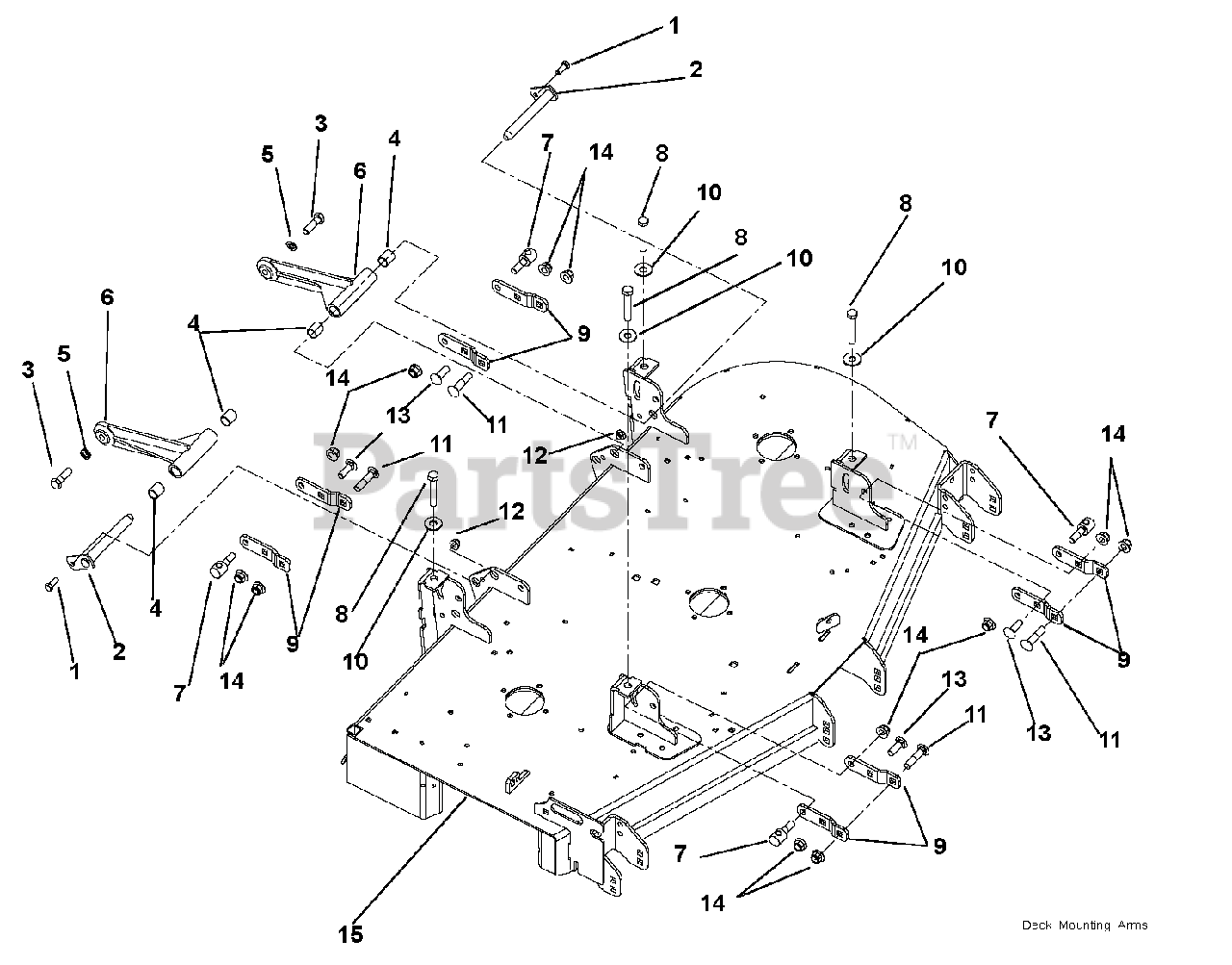

Deck & Mounting Arms Parts Diagram

  • Title

1

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 10

0

3

Gravely 05901436

BLT-HEX .50-13X1.75 GR5EP80 YZ
(Superseded to 05901922)

$4.99

$

In Stock, Qty 15

0

4

Gravely 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 04243551

DECK PUSHER ARM WMT - BLACK

$174.99

$

Usually ships in 4-12 days

0

7

Gravely 03972000

TRUNNION, .50-13

$51.99

$

In Stock, only 1 left!

0

8

Gravely 05901421

BLT,HEX .50-13X3.00 GR5 FTH YZ
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

9

Gravely 03966200

BRKT, DECK LEVELING

$

$

Not available

10

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06200119

BLT-RDHDSQNK .50-13X2.25 G5YZ
(Superseded to 06200423)

$3.99

$

In Stock, Qty 5

0

12

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

14

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 04531653

WMT, 48" SIDE DISCH DECK (7GA)
(Superseded to 59104000)

Note: (991079, 095, 102)

$1052.99

$

Usually ships in 4-12 days

0

Gravely 04546253

WMT, 52" SIDE DISCH DECK 7 GA

Note: (991080, 096, 103)

$

$

Not available

Gravely 04546453

WMT, 60" SIDE DISCHARGE DECK

Note: (991081, 097, 104)

$

$

Not available
