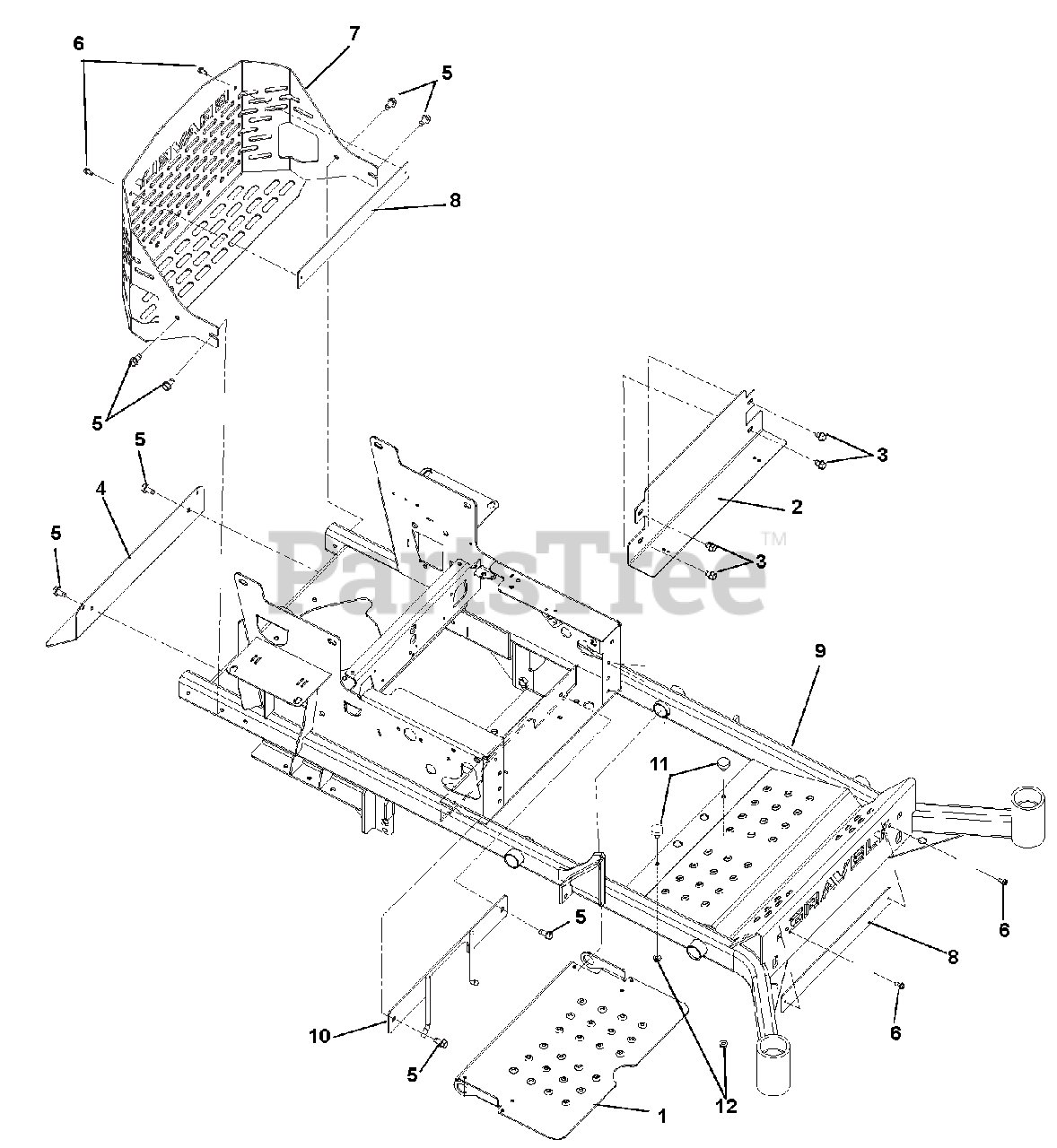

991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999) Frame (SN 020000-021999) Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

Frame (SN 020000-021999) Parts Diagram

  • Title

1

Gravely 04243851

PT/PT100 FOOT PLATE - BLACK

$

$

Not available

2

Gravely 04243953

PT/PT100 KICK PLATE - RED

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$73.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03995253

PRO-TURN 100 BUMPER - RED

$186.99

$

Usually ships in 4-12 days

0

8

Gravely 03995751

BUMPER PLATE 2.00 X 16.50 -BLK

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 04243253

PT100 60" MAIN FRAME WMT - RED

Note: (991081, 097, 104)

$2391.99

$

Usually ships in 4-12 days

0

Gravely 04243153

PT100 48-52"MAIN FRAME WMT-RED

Note: (991079, 080, 095, 096, 102, 103)

$2391.99

$

Usually ships in 4-12 days

0

10

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

12

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0
