991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999) Frame (SN 022000+) Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

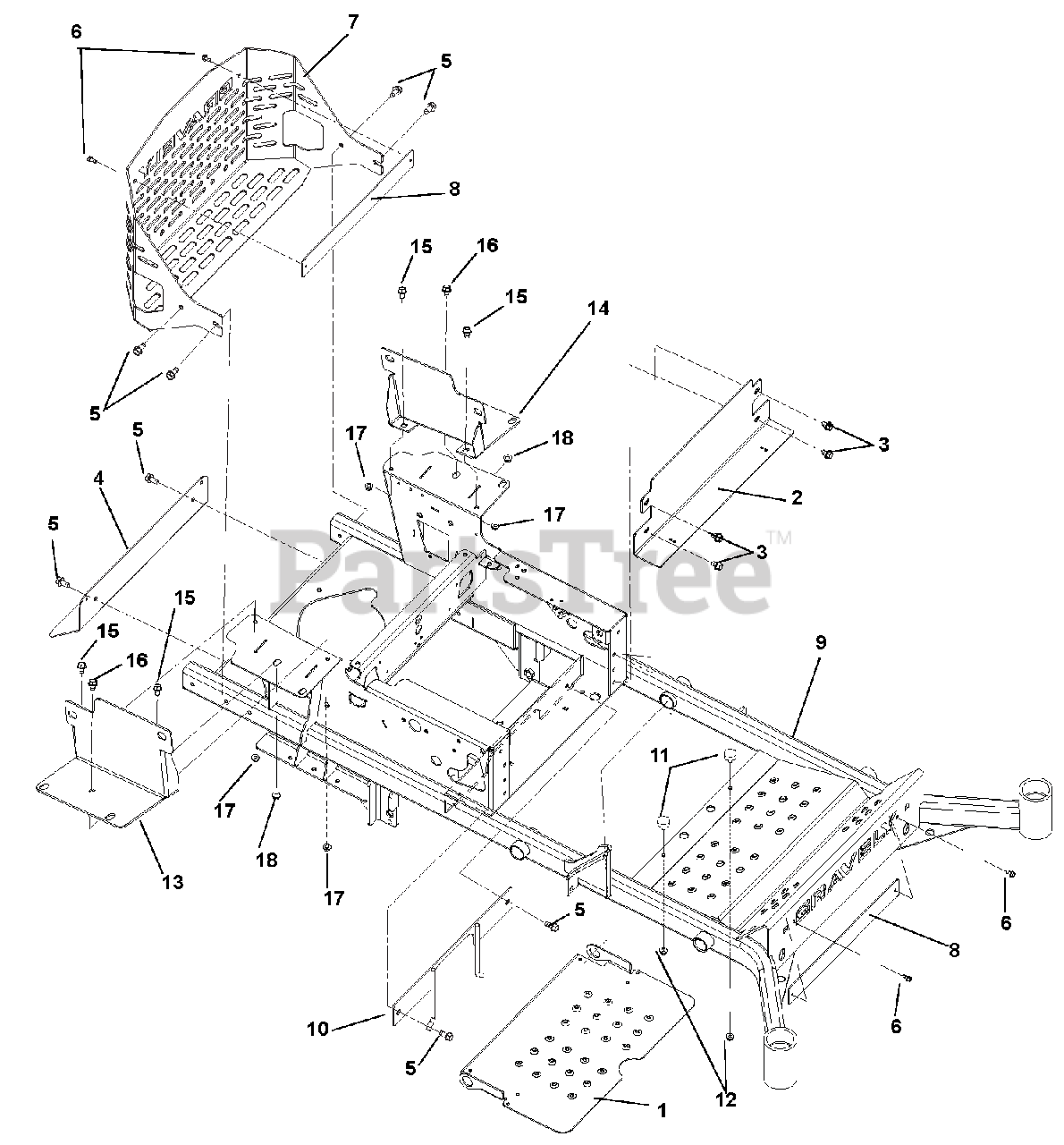

Frame (SN 022000+) Parts Diagram

  • Title

1

Gravely 04243851

PT/PT100 FOOT PLATE - BLACK

$

$

Not available

2

Gravely 04243953

PT/PT100 KICK PLATE - RED

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03948151

MUFFLER HEAT SHIELD - BLACK

$73.99

$

Usually ships in 4-12 days

0

5

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 03995253

PRO-TURN 100 BUMPER - RED

$186.99

$

Usually ships in 4-12 days

0

8

Gravely 03995751

BUMPER PLATE 2.00 X 16.50 -BLK

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 04517353

PT/PT100 60" MAIN FRAME - RED
(Superseded to 59103900)

Note: (991081, 097, 104)

$1014.99

$

Usually ships in 4-12 days

0

Gravely 04517253

PT/PT100 48-52" MAIN FRAME-RED

Note: (991079, 080, 095, 096, 102, 103)

$

$

Not available

10

Gravely 04053651

PTO BELT FINGER WLDMT - BLK

$29.99

$

Usually ships in 4-12 days

0

11

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

12

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 04517453

RH MED FUEL TANK MTG BRKT -RED

$

$

Not available

14

Gravely 04517553

LH MED FUEL TANK MTG BRKT -RED

$

$

Not available

15

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0
