991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999) Fuel Tanks Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

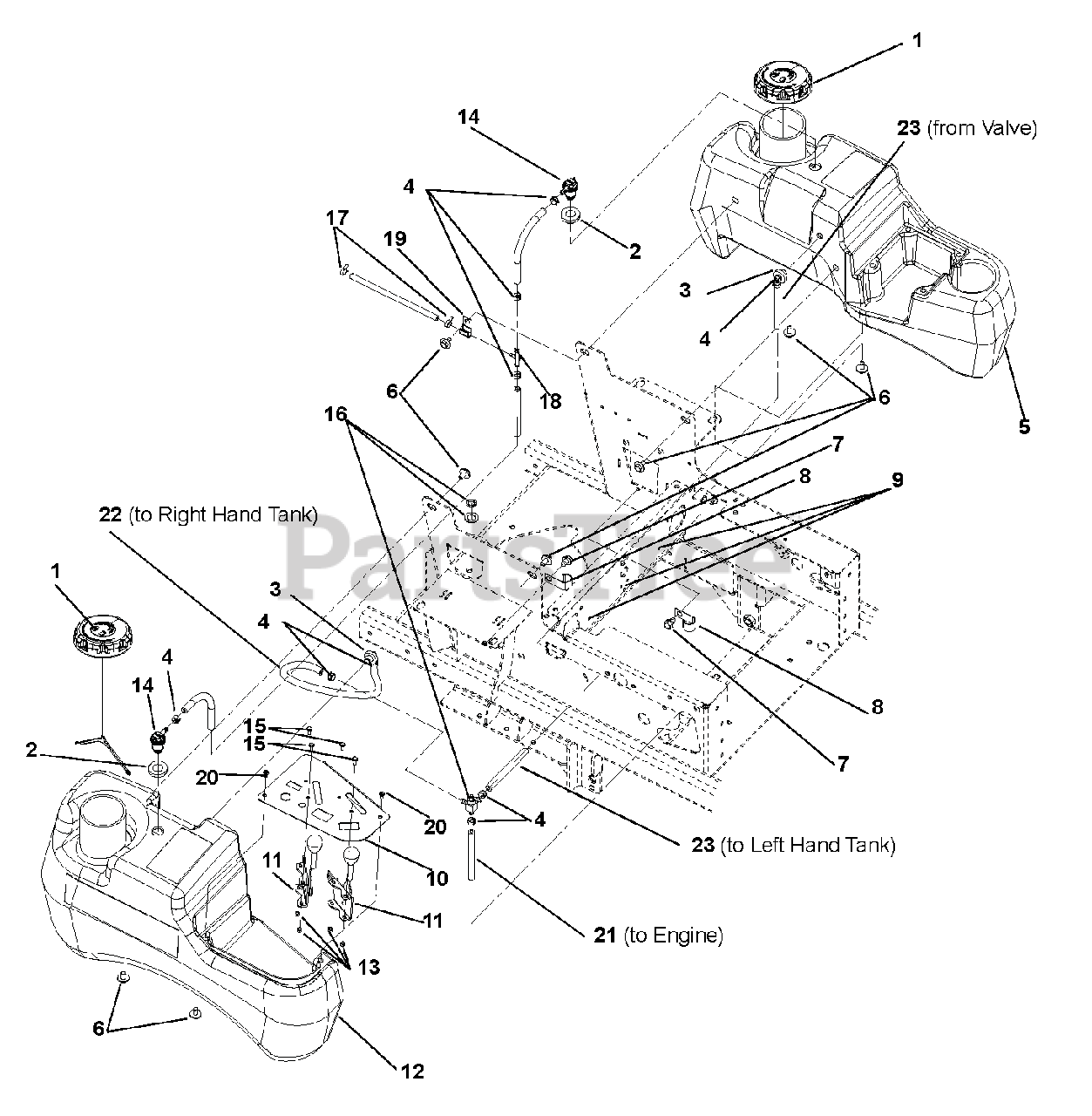

Fuel Tanks Parts Diagram

  • Title

1

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$35.99

$

In Stock, Qty 20+

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03900300

ASS'Y,MEDIUM TANK FUEL PICK-UP
(Superseded to 04320900)

$40.99

$

In Stock, Qty 11

0

4

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04340700

TANK-LH MEDIUM GRAVELY FUEL

$277.99

$

Usually ships in 4-12 days

0

6

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 04039151

PT100 CONTROL PANEL - BLACK

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 06900417

CABLE, PT100 THROTTLE CONTROL

$74.99

$

Usually ships in 4-12 days

0

12

Gravely 04340600

TANK-RH MEDIUM GRAVELY FUEL

$277.99

$

Usually ships in 4-12 days

0

13

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, Qty 5

0

15

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

17

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.99

$

In Stock, Qty 5

0

18

Gravely 04306900

TEE,1/4HS RUN X 3/16HS BRANCH

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0

20

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$3.49

$

In Stock, Qty 20+

0

21

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

22

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

23

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0
