991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999) Transmission Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

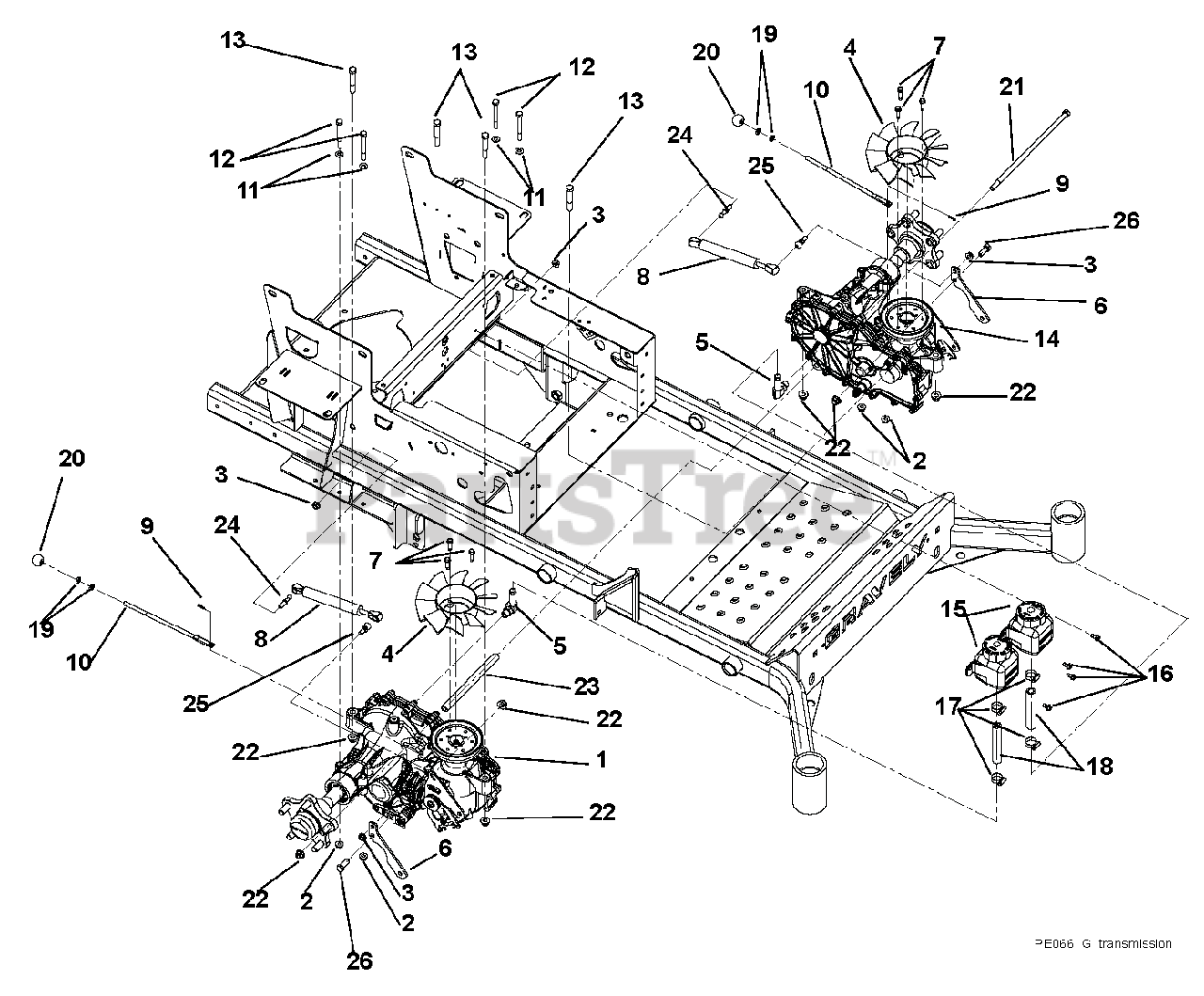

Transmission Parts Diagram

  • Title

1

Gravely 03776400

TRANSAXLE, RH 3400
(Superseded to 09184700)

$1939.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03283500

FAN, 2800 SERIES COOLING

$40.99

$

In Stock, Qty 13

0

5

Gravely 07001528

FITTING, HYD (90 DEG)

Note: (90°)

$20.99

$

In Stock, only 2 left!

0

6

Gravely 04244751

TRANSMISSION DAMPER MTG PLT-BL

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 07412400

SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 03769800

DAMPER
(Superseded to 09689700)

$43.99

$

In Stock, Qty 20+

0

9

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

10

Gravely 03911900

LEVER, PT100 DUMP VALVE

$104.99

$

Usually ships in 4-12 days

0

11

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05962500

BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 03776500

TRANSAXLE, LH 3400
(Superseded to 09184600)

$1706.99

$

In Stock, only 1 left!

0

15

Gravely 02970200

TANK, EXPANSION ZT2800

$38.99

$

In Stock, Qty 9

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

In Stock, Qty 20+

0

18

Gravely 03832300

HOSE, 100I HYDRO OVERFLOW

$6.49

$

In Stock, only 2 left!

0

19

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

20

Gravely 07539800

KNOB-BALL-BLACK .312-18 X 1.00

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 05901315

BLT HEX, .38-16X11.00 GR5 YWZC
(Superseded to 05901921)

$8.49

$

In Stock, Qty 13

0

22

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 03367200

SPCR,.406 ID X .630 OD X 7.724

$15.99

$

In Stock, Qty 8

0

24

Gravely 04097100

STUD-BALL-THREADED

$2.99

$

In Stock, Qty 13

0

25

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

26

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0
