991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Engine - Kohler ECV730 Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

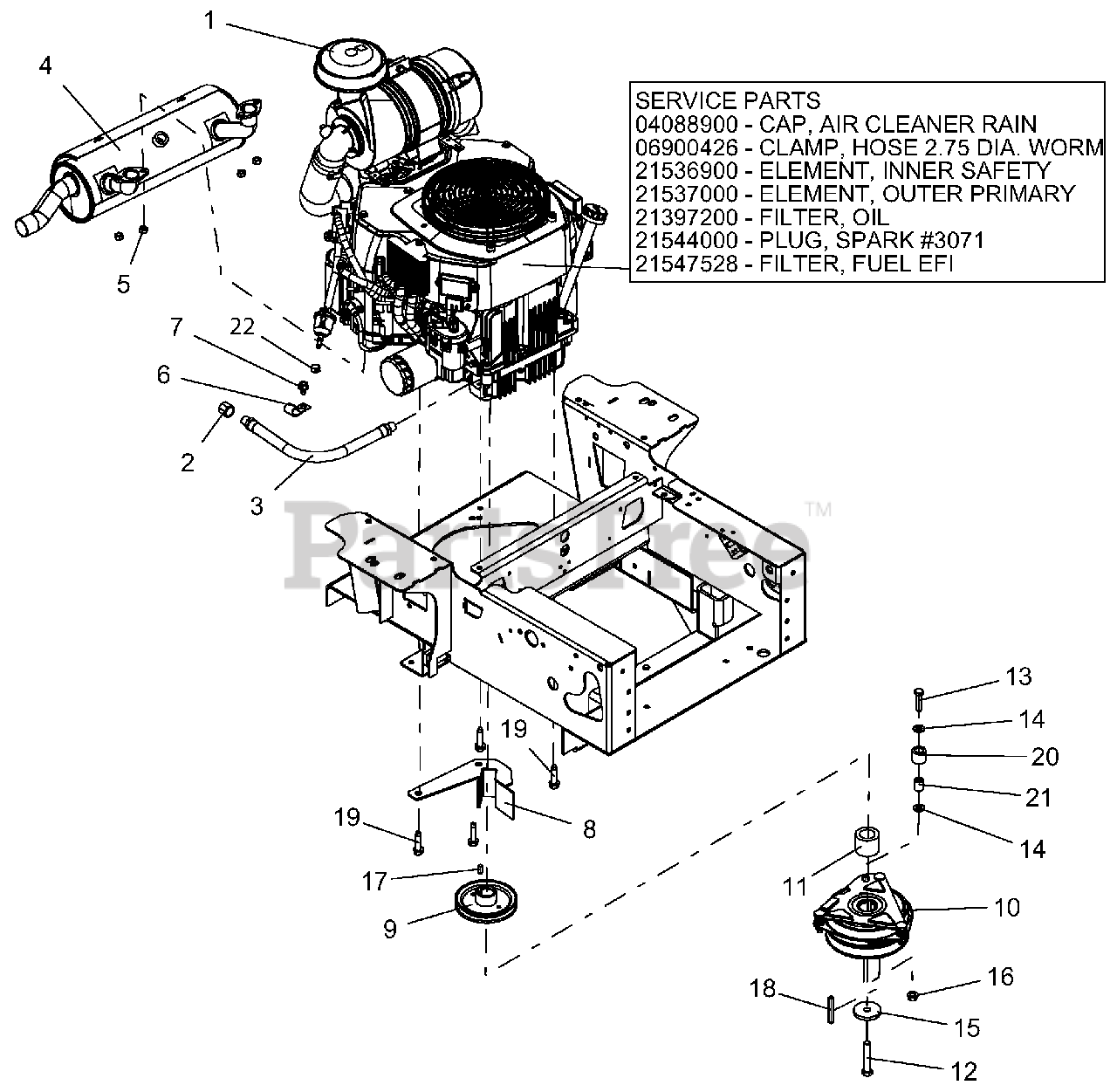

Engine - Kohler ECV730 Parts Diagram

  • Title

1

Gravely 08200716

ENGINE,KOHLER EFI ECV730

$

$

Not available

2

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 04262200

MUFFLER, KOHLER EFI

$358.99

$

Usually ships in 4-12 days

0

5

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 03828051

100I CLUTCH STOP WMT - BLACK

$65.99

$

Usually ships in 4-12 days

0

9

Gravely 07331667

PULLEY, 4.50 OD X 1.127 ENGINE
(Superseded to 07331600)

$103.99

$

Usually ships in 4-12 days

0

10

Gravely 03785000

CLUTCH, OGURA GT2.5-FE02

$484.99

$

In Stock, only 1 left!

0

11

Gravely 03829700

SPACER, 1.125 X 1.75 X 1.40

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$14.99

$

In Stock, only 1 left!

0

13

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 15

0

14

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 20+

0

18

Gravely 06610300

KEY .25X.25X2.25

$3.49

$

In Stock, only 2 left!

0

19

Gravely 07417400

SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

$4.99

$

In Stock, only 2 left!

0

20

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 1 left!

0

21

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 1 left!

0

22

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0
