991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Fuel System - EFI Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

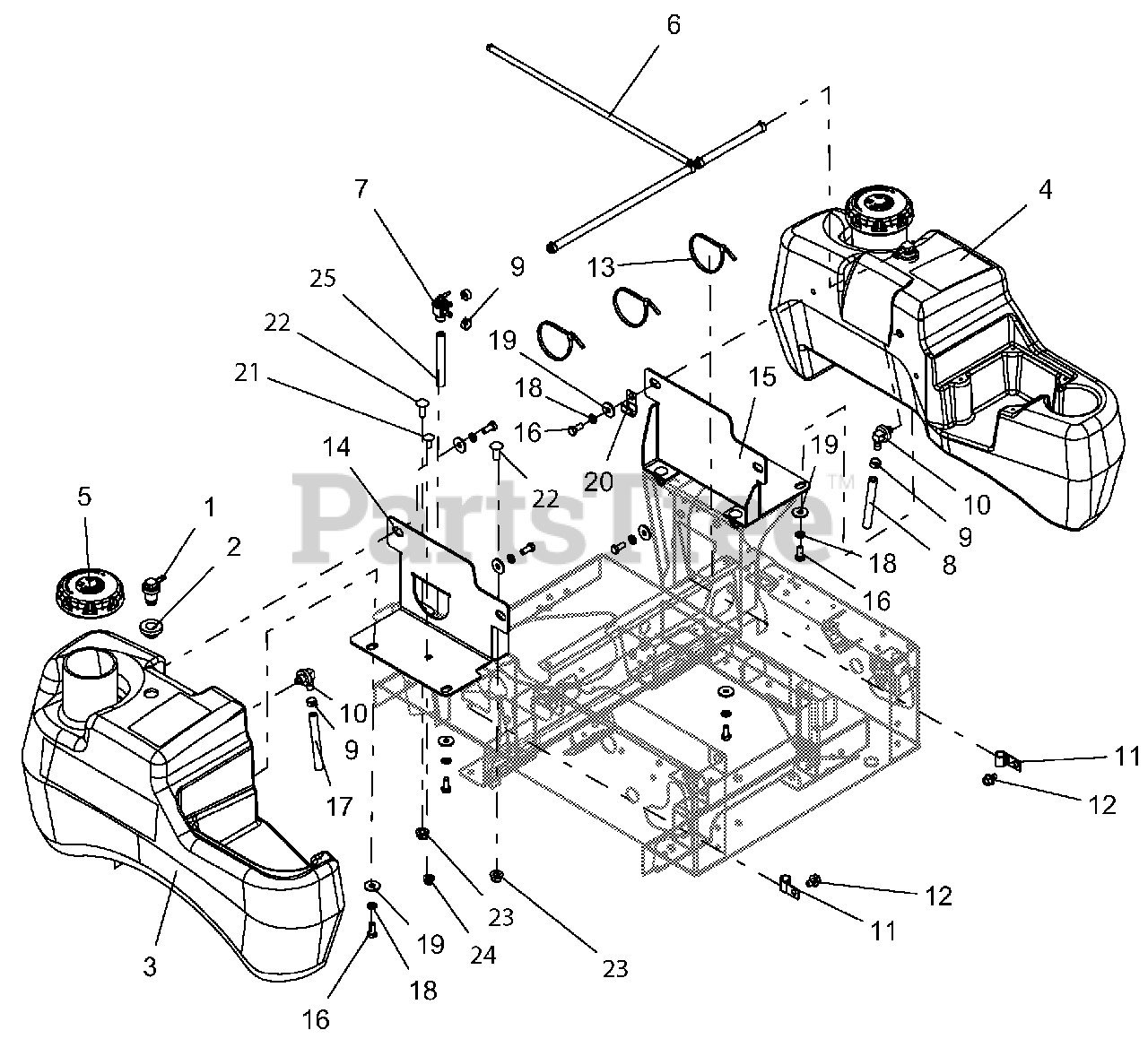

Fuel System - EFI Parts Diagram

  • Title

1

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$18.99

$

In Stock, only 4 left!

0

2

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

3

Gravely 04340600

TANK-RH MEDIUM GRAVELY FUEL

$277.99

$

Usually ships in 4-12 days

0

4

Gravely 04340700

TANK-LH MEDIUM GRAVELY FUEL

$277.99

$

Usually ships in 4-12 days

0

5

Gravely 04558000

CAP, FUEL VENTIN AUTOLOCK
(Superseded to 09190300)

$35.99

$

In Stock, Qty 20+

0

6

Gravely 04501400

PT100, KOHLER FUEL LINE ASSY

$

$

Not available

7

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 17

0

8

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04320900

ASM, FUEL PICK-UP SML/MED TANK

$40.99

$

In Stock, Qty 9

0

11

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 04517453

RH MED FUEL TANK MTG BRKT -RED

Note: (RED)

$

$

Not available

15

Gravely 04517553

LH MED FUEL TANK MTG BRKT -RED

Note: (RED)

$

$

Not available

16

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0

21

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0
