991096 (Pro-Turn 152) - Gravely Pro-Turn 52" Zero-Turn Mower, Kohler EFI (SN: 030000 - 039999) Seat Assembly Parts Diagram

Pro-Turn 52" Zero-Turn Mower, Kohler EFI

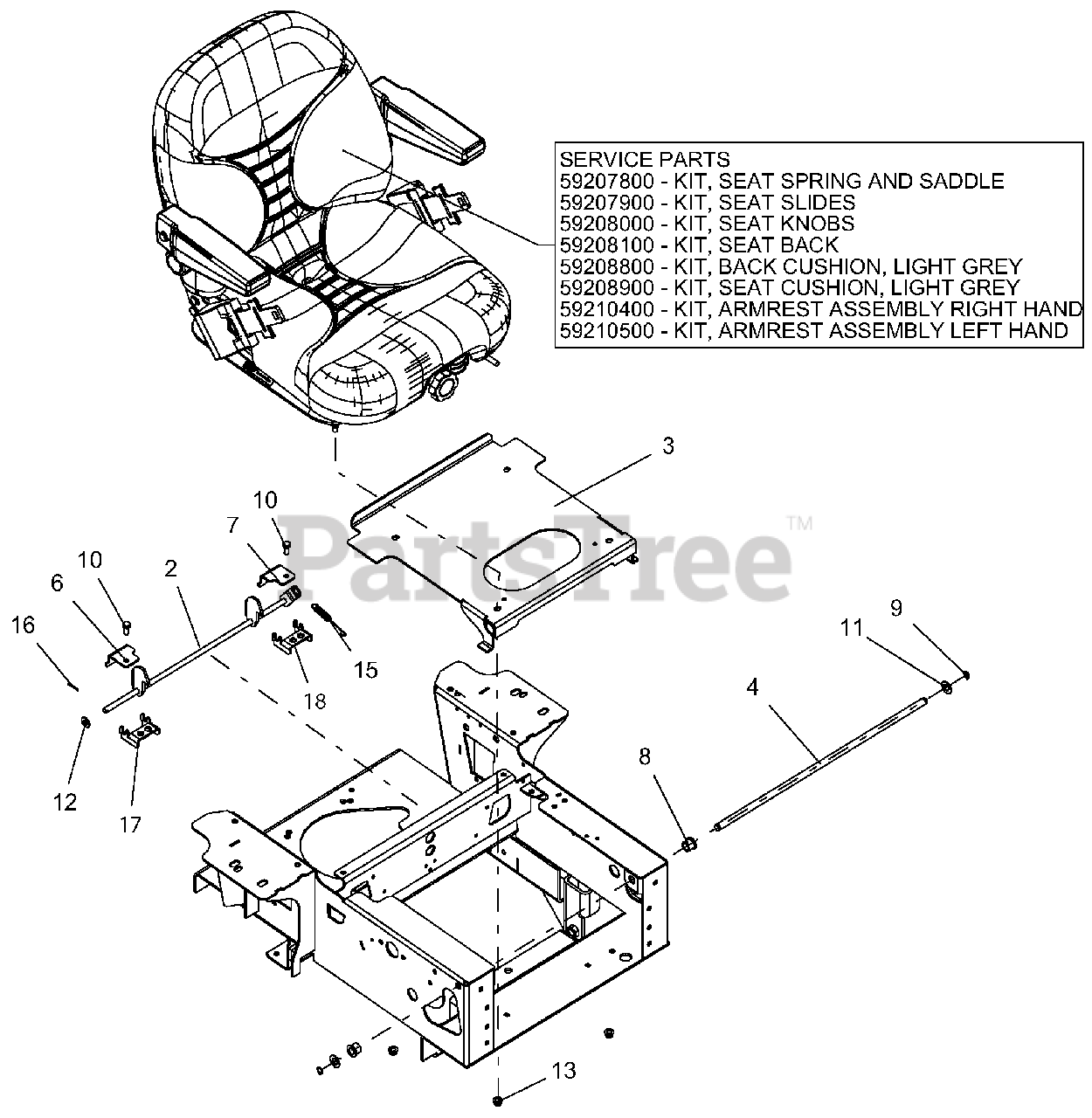

Seat Assembly Parts Diagram

  • Title

2

Gravely 03917751

PRO-TURN100 SEAT LATCH WMT-BLK

$68.99

$

Usually ships in 4-12 days

0

3

Gravely 03933251

PRO-TURN100 SEAT PLATE WMT-BLK

$164.99

$

Usually ships in 4-12 days

0

4

Gravely 03837800

SHAFT, PT100 SEAT PIVOT

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 03917951

PT100 RH TOP SEAT LATCH MNT-BL

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 03918551

PT100 LH TOP SEAT LATCH MNT-BL

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 05500901

BSHG, FLG .516X.750X.625X.937

$6.99

$

In Stock, only 2 left!

0

9

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$1.49

$

In Stock, Qty 15

0

12

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

13

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.99

$

In Stock, Qty 17

0

16

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03930451

PT100 RH SEAT LATCH MNT WMT-BL

$23.99

$

Usually ships in 4-12 days

0

18

Gravely 03930551

PT100 LH SEAT LATCH MNT WMT-BL

$25.99

$

Usually ships in 4-12 days

0
